Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M10 mm (0 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 200 mm (7.874 in) |

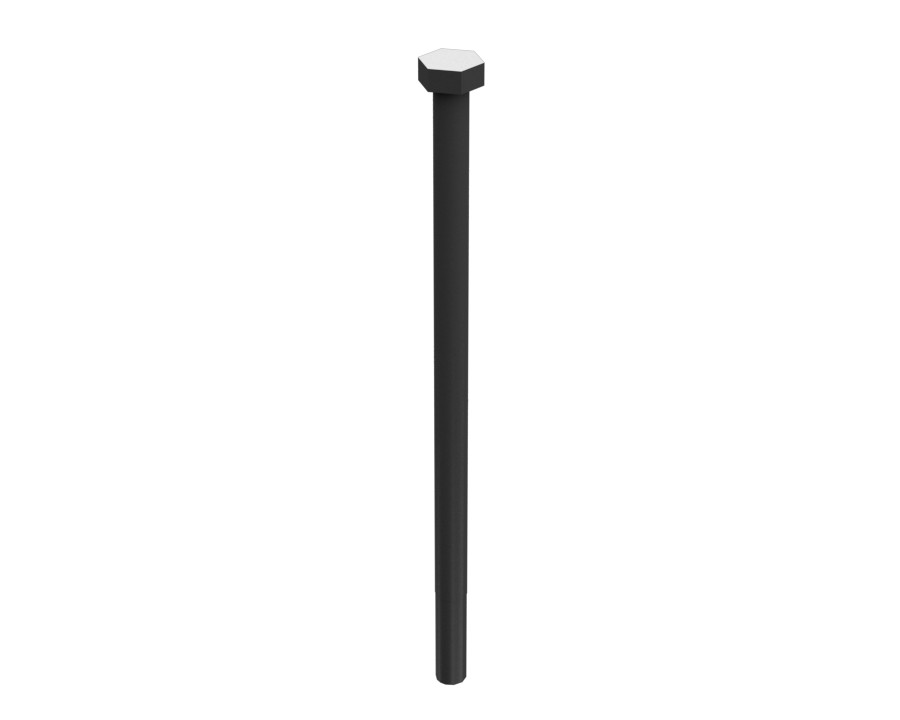

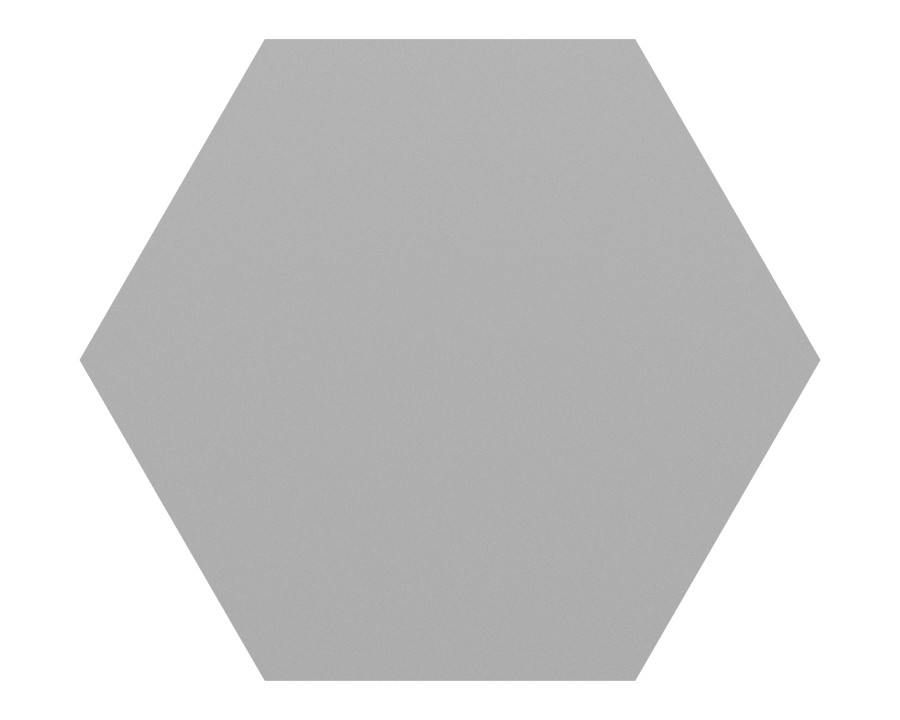

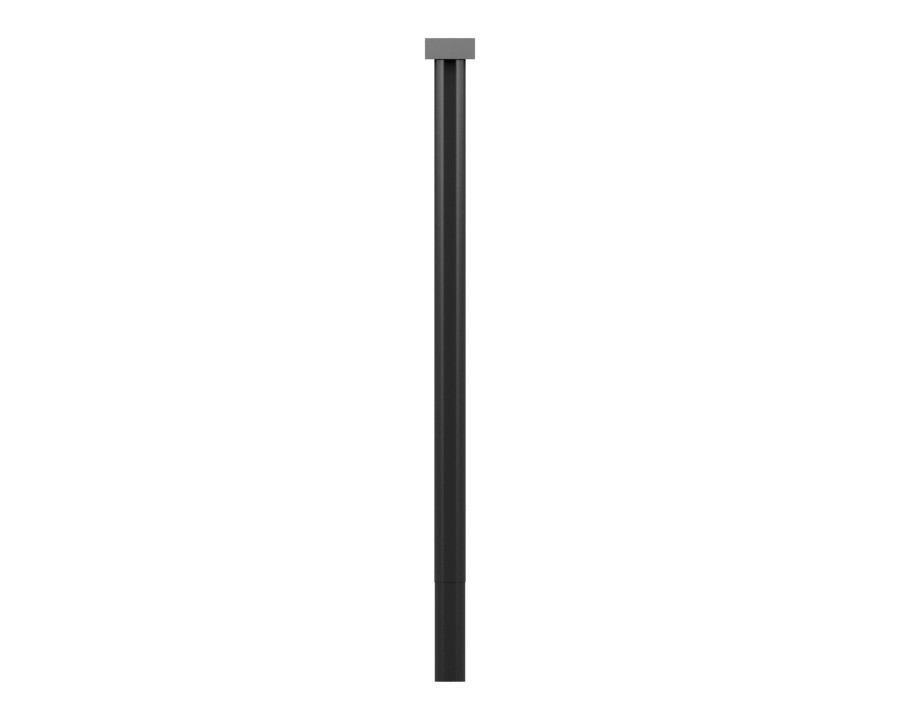

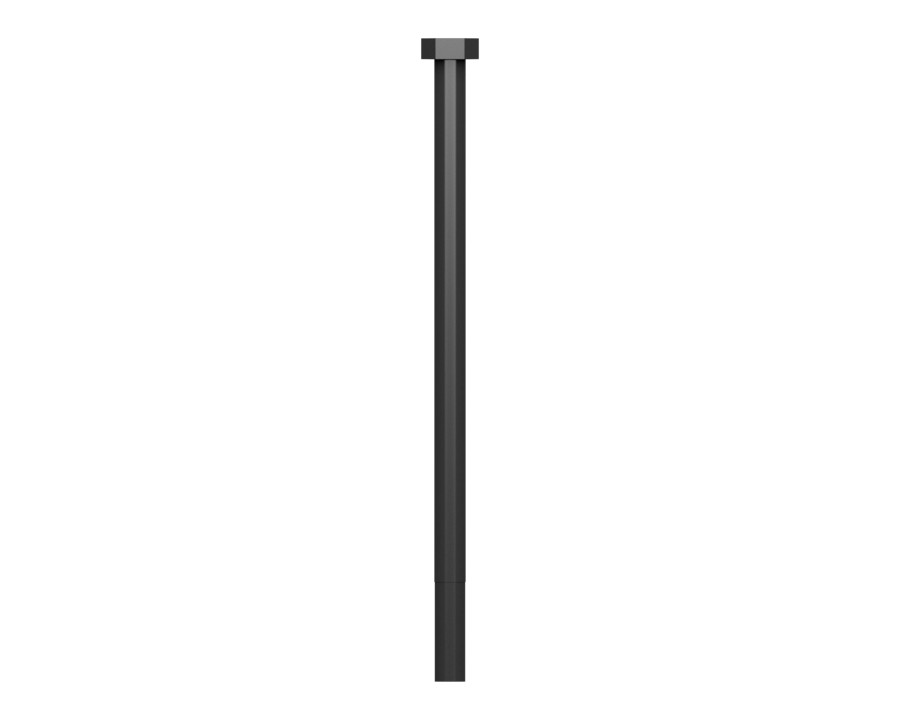

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 168 mm (6.614 in) |
Compatible Equipment
- Generator Sets: C9
- Motor Graders: 14, 12H
- Track Loaders: 994K, 995, 990K
- Cold Planers: PL72
- Compactors: C9.3B
- Engines: C7
- Dozers: D6T, D6R XL, D6R III, D6T LGP, D6R II, D7E, D6R, D7R, D6R LGP, D7
- Excavators: 637K, 637G, 637E, 350 L
Additional information
| Machine Model | 12H, 14, 350 L, 637E, 637G, 637K, 990K, 994K, 995, C7, C9, C9.3B, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7R, PL72 |
|---|---|
| Equipment Type | Excavators, Track Loaders, Dozers, Motor Graders, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
