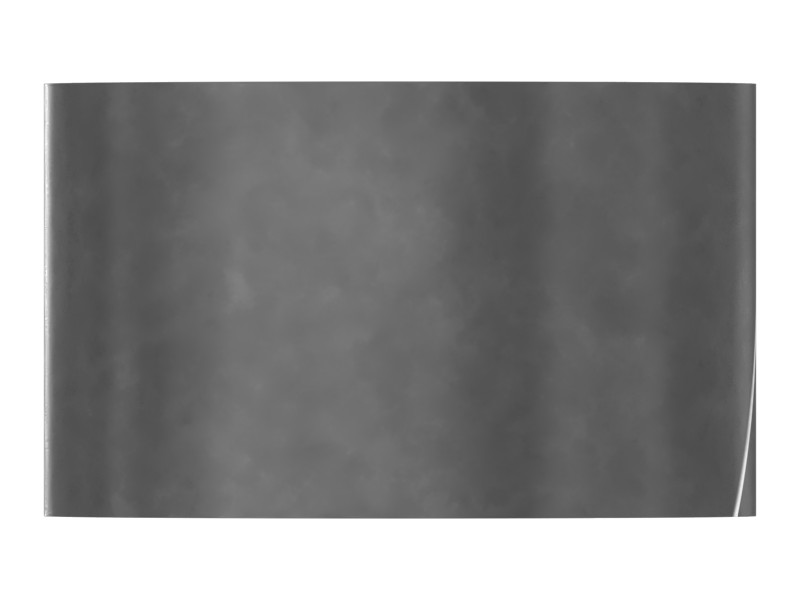

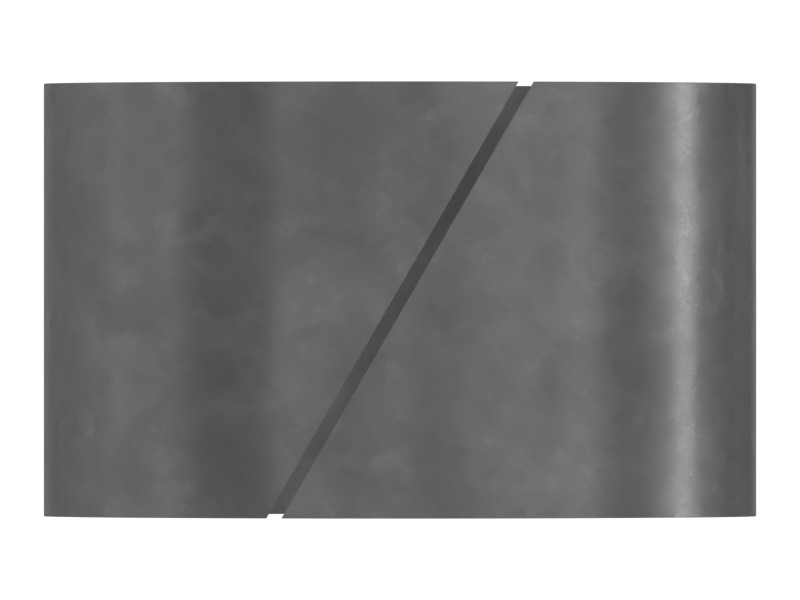

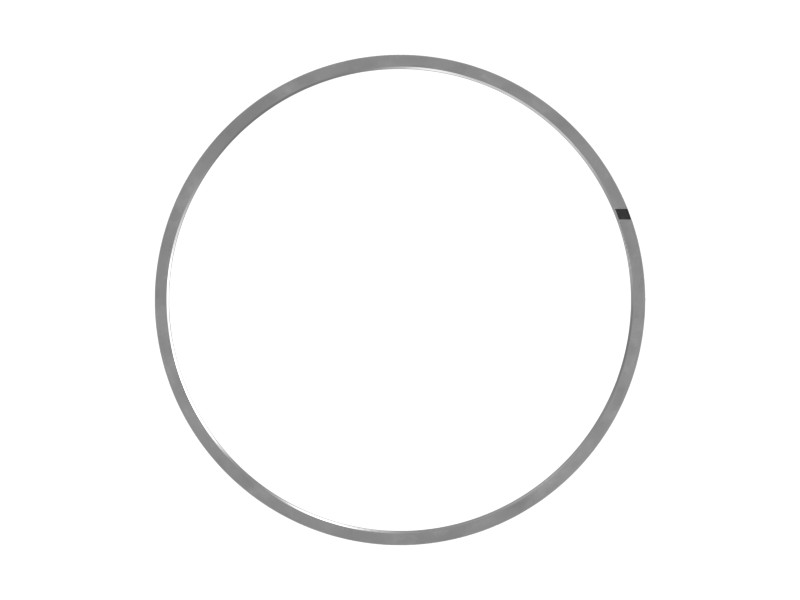

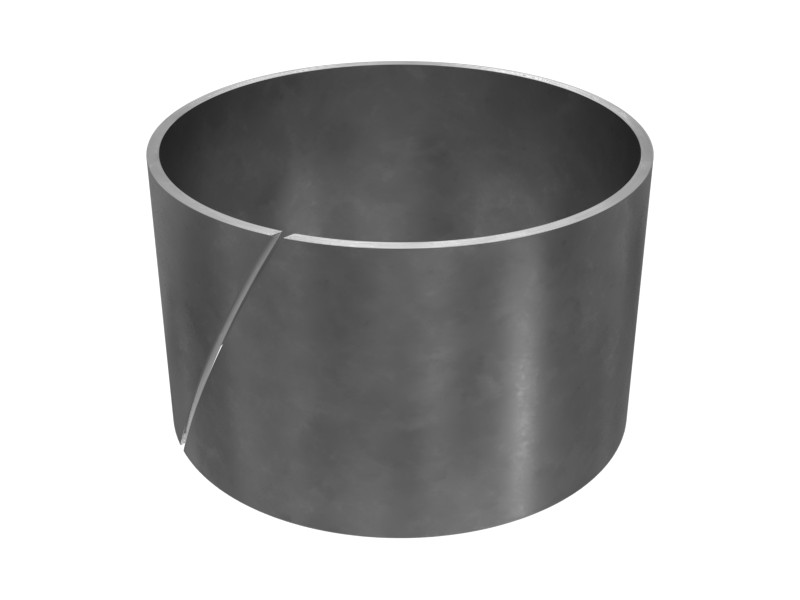

8T-6747 101.6 mm ID Wear Ring
Cat® 101.6 mm ID Plastic Wear Ring Used in Hydraulic Cylinder Heads
Description
Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Groove Diameter – B (+/- 0.001 in) | 4.20 in |
| Rod Diameter | 101.60 mm (4.00 in) |
| Groove Width – A (+/- 0.003 in) | 2.56 in |
| Groove Diameter – B (+/- 0.0254 mm) | 106.68 mm |
| Groove Width – A (+/- 0.0762 mm) | 65.00 mm |
Compatible Equipment
- Dozers: D10T2, D10N, D10T, D10R, D9L
- Excavators: 621G
- Wheel Loaders: 992D, 992C, R1700 II
