Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, installation torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Fluid bearing group• Designed to
meet or exceed the performance of industry-standard parts and provide leak-free connections

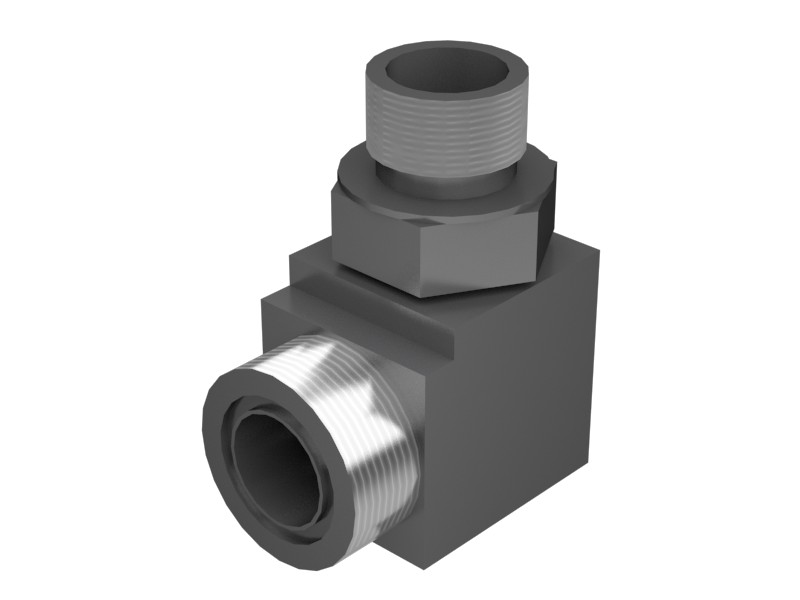

- Images provided are for reference only. Adapter construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Adapters are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Plated Steel |
|---|---|
| Material | Carbon Steel |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Coolant and DEF Compatible Seals | 415-2887 (1-7/16-12), 6V-5063 (1-1/16-12) |
| Oil and Fuel Compatible Seals | 228-7093 (1-7/16-12), 238-5082 (1-1/16-12) |
| Transmission and Hydraulic Oil Compatible Seals | 3D-2824 (1-1/16-12), 5K-9090 (1-7/16-12) |
Compatible Equipment
- Generator Sets: 3406B, 3406C, 3516C, 3512E, C7.1, 3512B, C9, C4.4
- Track Loaders: 953K, 826G, 816F, 953, 982, 826K, 834H, 826H, 824G, 992, 993
- Cold Planers: PM622, PL87, PM620, PL83, PL61
- Compactors: 834K, 825K, 824K, CS11, CS12, CB-335D, CS56B, CS-563E, CS78B, CB-434D, CS-583D, CS74B, 816, 815, 814, CB-334D, CS79B, CP56B, CS68B, CS-54B
- Engines: C175-16, C18
- Excavators: 336D, 320D, 329D, 330, 320D2, 306E2, 349D, 390F L, 374D L, 349D2 L, 390D L, 349D2, 374F, 306E, 330D L, 374, 349F L, 120 GC, 315C, 325D, 336D L, 320D L, 323D L, 320, 325C, 315D L, 325D L, 325C L, 318D2 L, 340, 324D L, 320C, 330C L, 323D, 314C, 330D, 323, 329D L, 336, 320 GC, 314D LCR, 314D CR, 328D LCR, 330GC, 336 GC, 324D, 637K, 637E, 637G, 3512C, 352, 3516E, 345D L, 355, 320D3 GC, 320D RR, 326, 320D FM, 318D L, 657G, 395, 320E, 330C, 315F LCR, 349E, 345C, 385C L, 352F, 385C, 365C, 349D L, 365B, 349E L VG, 621G, 390F, 621H, 385B, 349E L, 345C L, 390D, 385C FS, 374F L, 345D, 365C L, 349, 416F2, 6060, 365B L, M325D L MH, 416E, 350, 350MHPU, 6015, 3101, 325B L, 311B, 330 GC, 320D3, 434F2, 428F, 318D2, 3508B
- Asphalt Pavers: AP-600D, AP355F
- Skid Steer Loaders: 246C, 226B3, 226B, 262C, 216B3, 279C, 24
- Motor Graders: 16H, 14M, 120H, 14, 316F, 349 GC
- Wheel Excavators: MD6200, MD6310, MD6250
- Dozers: D8, D11R, D10N, D8T, D7R II, D7E, D9, D10, D9T, D10R, D6K2
- Mini Excavators: 305.5E, 305.5E2
- Wheel Loaders: 950G, 924HZ, 950H, 924GZ, 988K, 926M, 928HZ, 980G, 962G, 950 GC, 928G, 962L, RM400, 836, 834, 980H, 966H, 906K, 950L, 988H, 986H, 980, 980L, 972H, 950, 938K, 938M, RM500B
- Off-Highway Trucks: 796 AC, 797F, 725, 740B, 730, 771D, 775G, 798 AC, 793F, 735, 740, 793D, 772G, 777D, 770G, 793, 785, 789, 7495, 794 AC, 740 GC, 777, 745C, 777E, 773F, 745, 785D, 725C2, 773D, 789D, 773
