Description

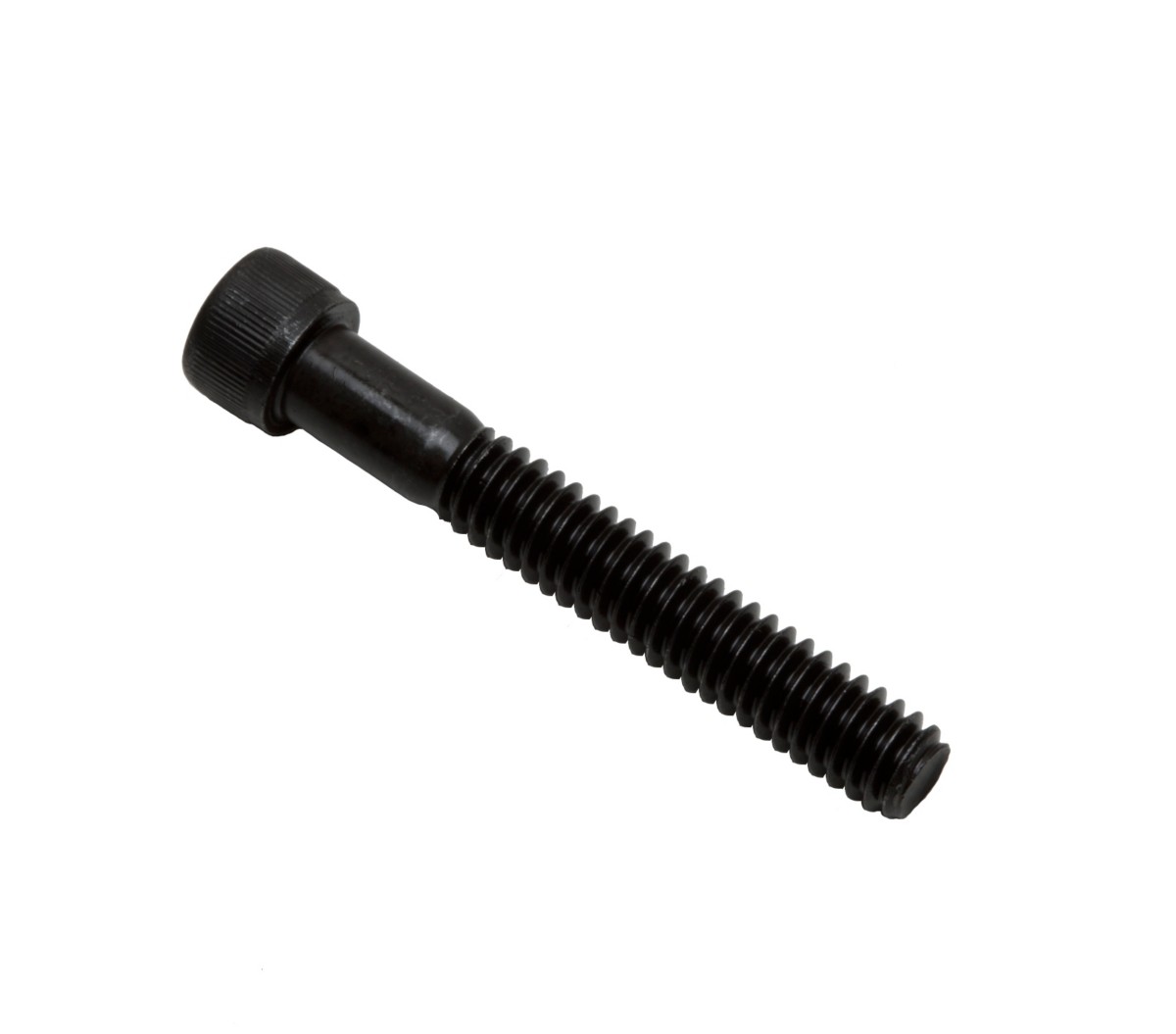

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Bolt Length | 55 mm (2.165 in) |
|---|---|
| Class or Grade | ISO 898-1 Class 12.9 |
| Material | Alloy Steel |
| Handle Length | 7.5 mm (0.295 in) |
| Coating | Zinc Phosphate + Oil |
| Thread Size | M20 mm (0 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Type | Socket Head |
| Thread Size (Diameter × Pitch) | M20 × 2.50 mm |
Compatible Equipment
- Mini Excavators: 307E2
- Excavators: 3516E, 6040, 308E
- Off-Highway Trucks: 797F, 798 AC, 7495
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
