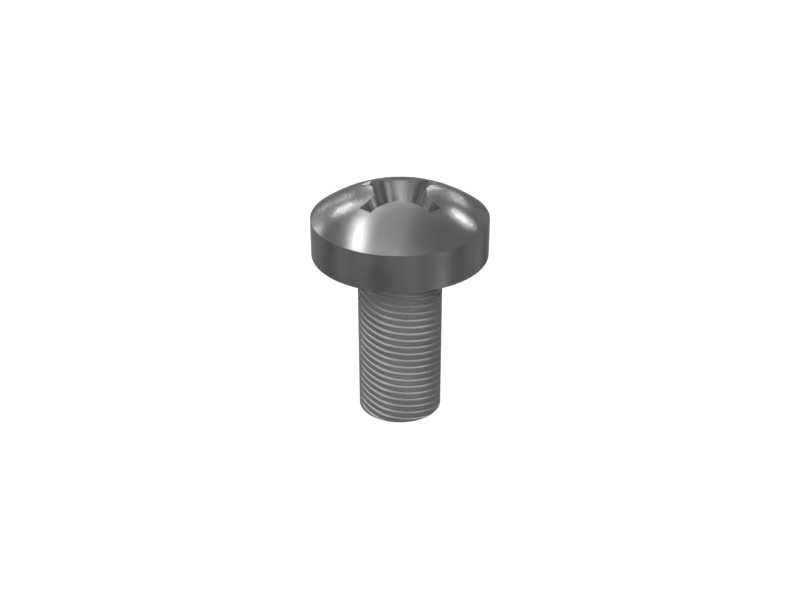

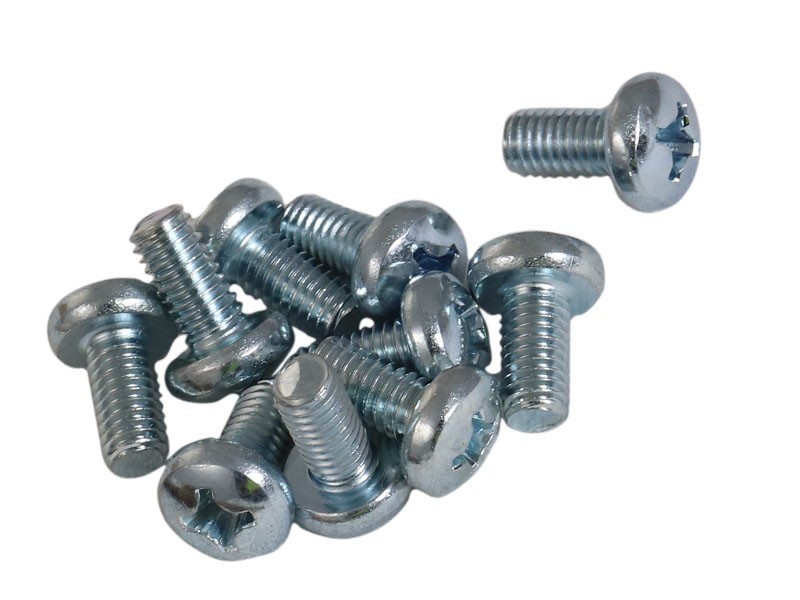

8T-6411 M6x1 Thread Machine Screw
Cat® circuit breaker panel machine screw for securely attaching components in the circuit breaker panel, ensuring a reliable electrical connection
Description
Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Class or Grade | ISO 898-1 Class 4.8 |
|---|---|
| Bolt Length | 12 mm (0.472 in) |
| Bolt Type | Rounded Head (Pan) |
| Thread Size | M6 mm (0 in) |
| Thread Direction | RH |
| Head Type | Oil Pan |
| Material | Steel |
| Coating | None |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Length | 12 mm |
| Handle Length | None mm (0.079 in) |
Compatible Equipment
- Generator Sets: 3406B, 3512B, 3406C, 3516C, C9, C4.4, 3512E
- Track Loaders: 993, 995, 990K, 834H, 994K, 992
- Cold Planers: TH360B
- Compactors: 834K, 815, 824K, 825K, 816, 814
- Engines: C15, C18
- Excavators: 320D, 305, 336D, 308D, 303, 303.5E2 CR, 305C CR, 303C CR, 390D L, 390F L, 374F, 3456, 374D L, 349D, 349D2, 349D2 L, 329D, 330D L, 305E2 CR, 349F L, 330C L, 330 L, 336F, 320B, 325C L, 336F L, 328D LCR, 325C, 320C, 320D FM, 330C, 314D CR, 330B, 320D L, 315C, 311B, 325B L, 325D L, 313F L, 312C, 311D LRR, 311C, 324D L, 323D L, 314C, 336D L, 320C L, 314D LCR, 336F L XE, 325D, 312D L, 336F LN, 352F, 385B, 365B, 345D L, 385C, 365C, 3508B, 390F, 385C L, 350 L, 345C, 345B, 345D, 3516B, 365C L, 385C FS, 349D L, 335F LCR, 329D L, 312D, 315D L, 365B L, 390D, 416E, 374F L, 340D L, 320, 345C L, 325B, 330D, 312F, 312C L, 324D, 320D RR
- Motor Graders: 316F
- Dozers: D6T
- Mini Excavators: 305.5E2, 307, 307B, 303.5E, 305.5E, 303.5D, 307C, 303.5C, 307D, 303.5, 305.5 GC
- Wheel Loaders: 834, 988K, 950G, 962G, 990H, 980H, 988F, 986H, 988H, 988G, 992D
- Off-Highway Trucks: 740, 725, 730, 798 AC, 796 AC, 735, 794 AC
