Description

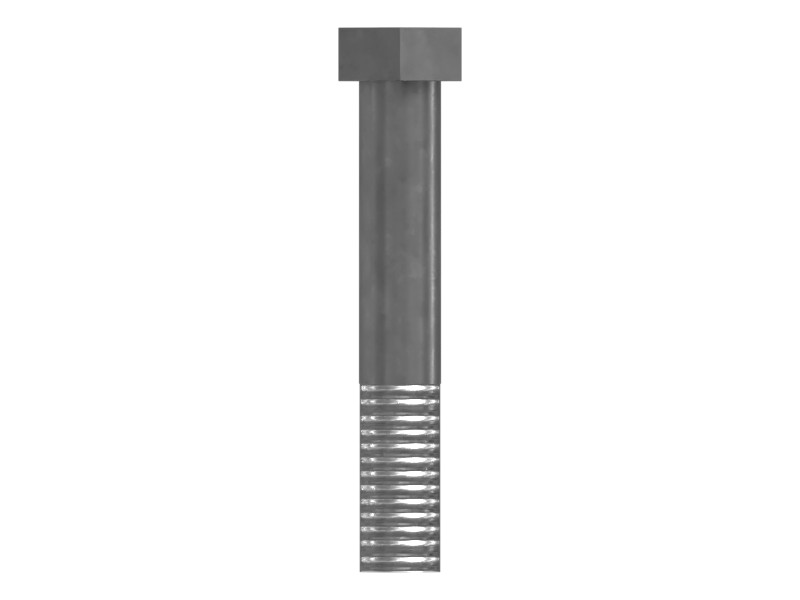

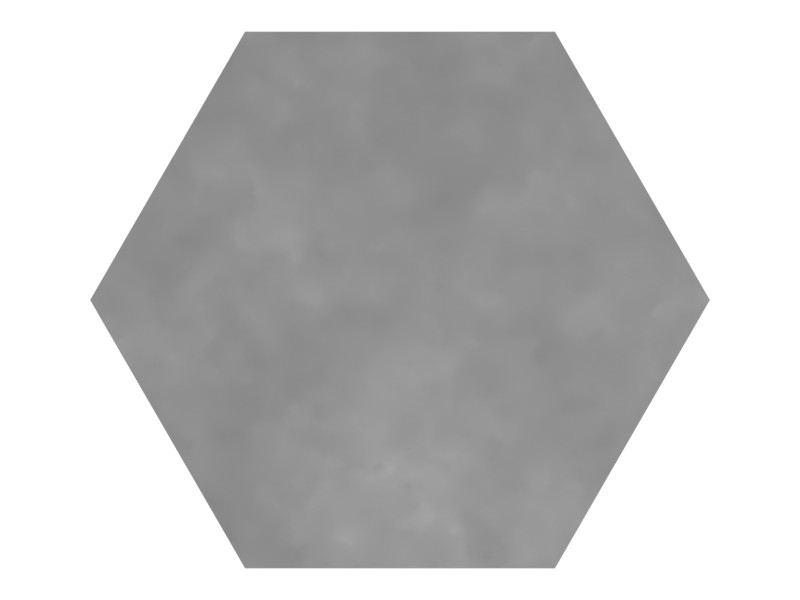

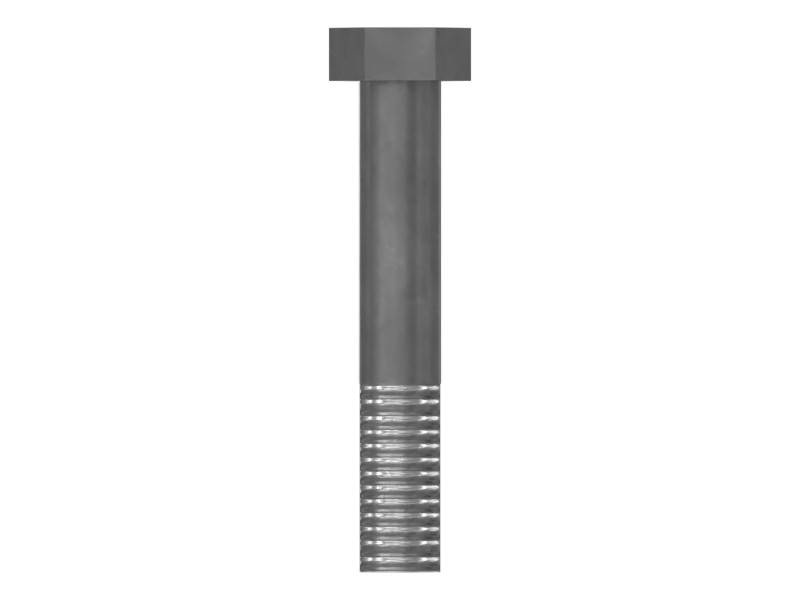

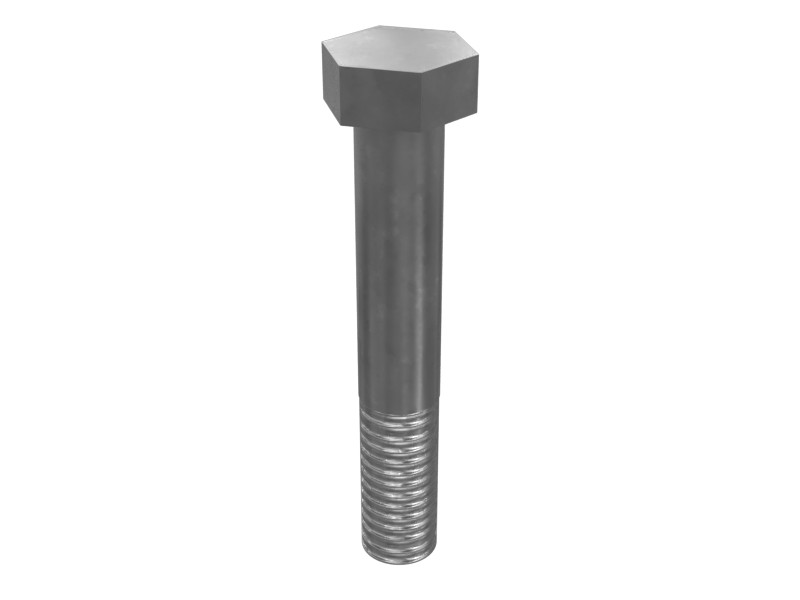

Track bolts are used to secure track shoes to the link assembly.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M20 mm (0 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Size | M20 mm (0.7874 in) |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Bolt Length | 120 mm (4.724 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 74 mm (2.913 in) |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: C7.1, 3516C
- Track Loaders: 990K, 826K, 963D, 973K, 963, 834H, 963K, 826G, 953, 992, 994K, 824G, 953D, 824C, 953K, 826H
- Cold Planers: PL87, PL61, PL83, TH360B, TH417D
- Compactors: CS11, 815, CS12, 824K, 825K, 834K, CB-335D, 814, CP56B, CS68B, CS56B, CS74B, CB-334D, CS54B, CP54B, CS-533C, CS-583D, CS-563E, CS-54, 816, CS-54B, CS-533E, CS64B
- Engines: C13, C32, C18
- Excavators: 303.5E2 CR, 305, 305E2 CR, 6020B, 120 GC, 6040, 352, 6015, 6015B, 350 L, 385C, 6060, 325B L, 320B, 328D LCR, 345B, 365C L, 3508B
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 24
- Motor Graders: 160K, 12K, 120, 14, 14M, 140K
- Wheel Excavators: MD6250, MD6310
- Dozers: D11, D7E, D6T, D6R, D5M, D5N, D6N, D6K2, D4, D7, D6R XL, D6T LGP, D6R III, D6M, D7R, D8, D6R LGP, D8N, D6R II
- Mini Excavators: 305E2, 303.5C, 303.5E, 305.5E2
- Wheel Loaders: 836, 972H, 950H, 988K, 962G, 980G, 966H, 950G, 834, 910, 988H, 988G, 966F, 990H
- Off-Highway Trucks: 770G, 794 AC, 796 AC, 775G, 772G, 793F, 793D, 797F, 798 AC, 7495, 793, 773
