Description
Cat® fasteners are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do. Hex head bolts/screws provide very strong driving performance. Cat fasteners are manufactured to precise specifications to be durable, reliable and efficient. Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements. Cat bolts, nuts and washers are specially designed to work together as a system to maximize clamp load. Coatings meet the special requirements of different applications (RoHS compliant). Cat bolts form a matched system with matching hardened washers and nuts that consistently produces high clamping force. You can rely on Cat fasteners to help you build, maintain or repair, for most machine and shop applications around the world.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M10 mm (0 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 120 mm (4.724 in) |

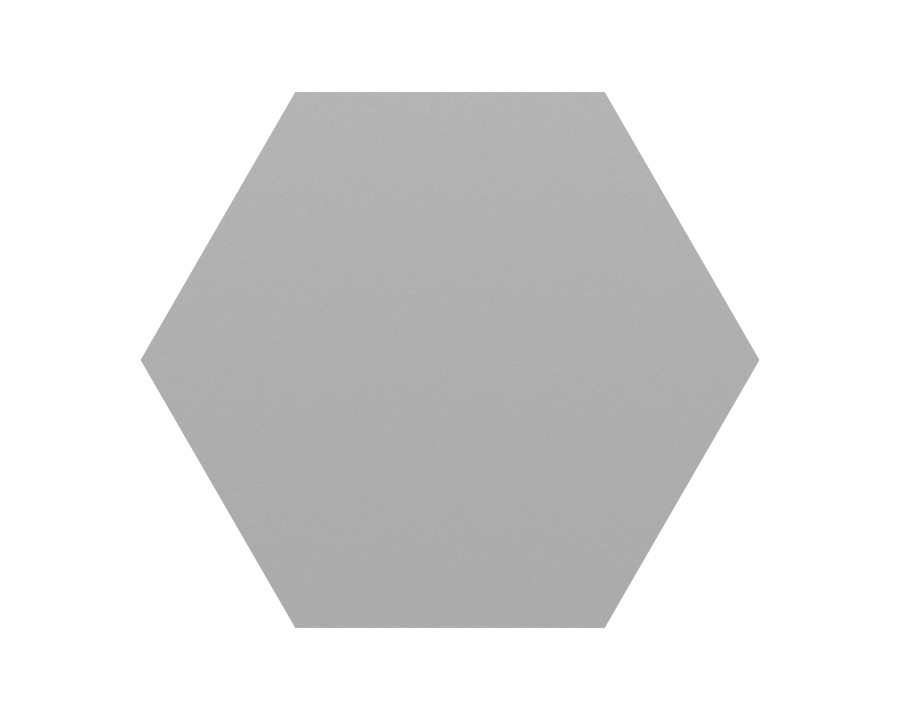

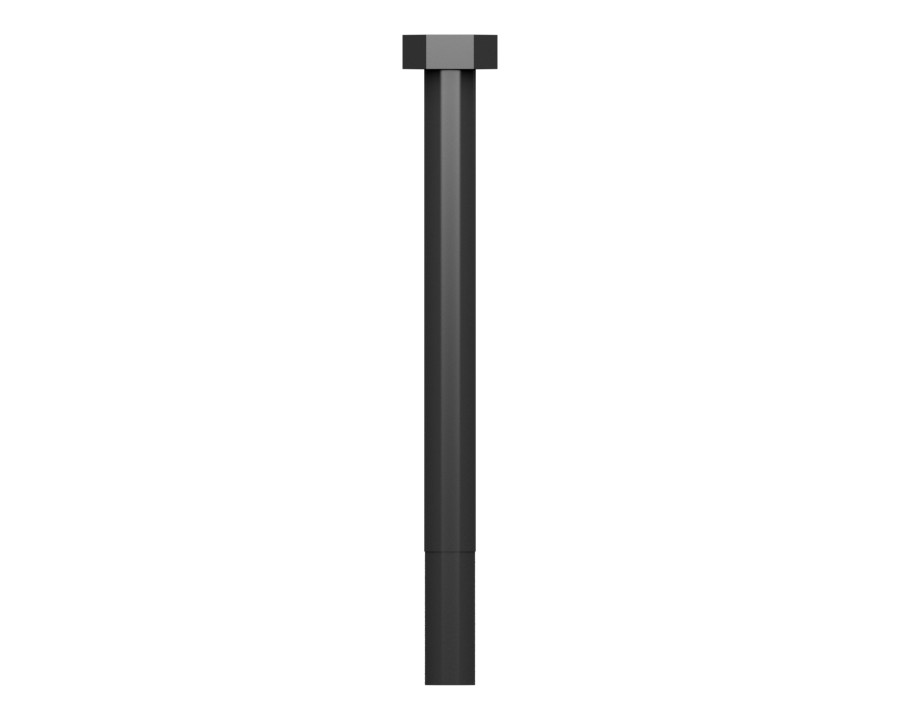

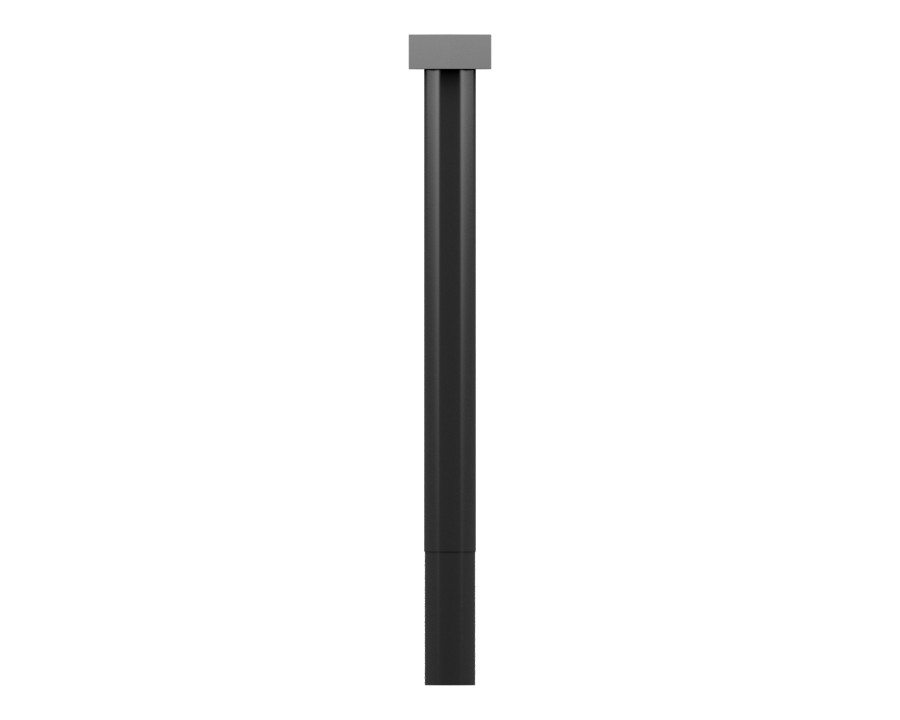

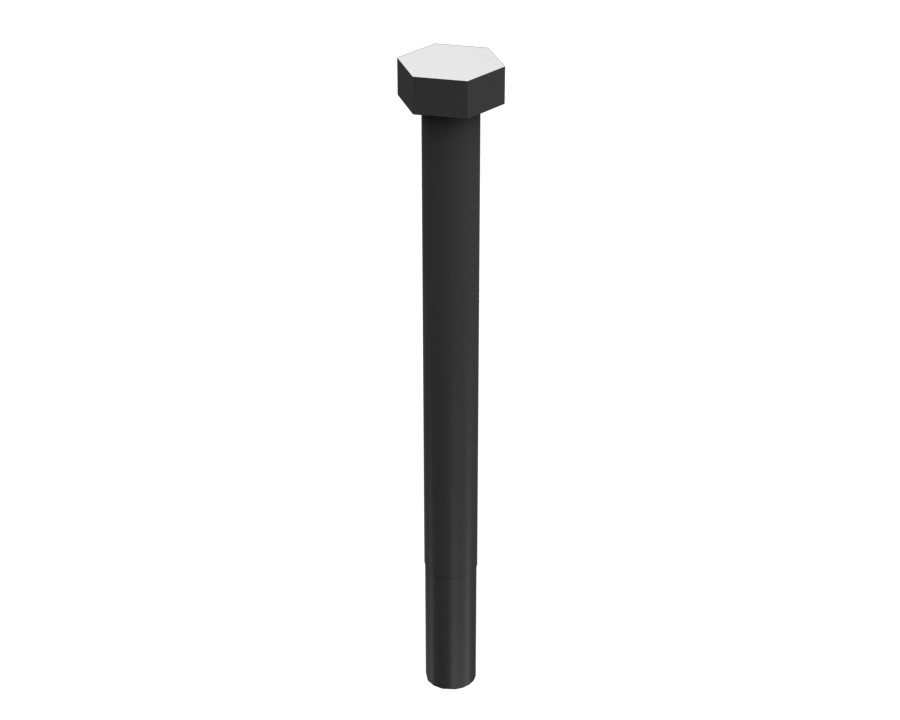

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 94 mm (3.701 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 995, 990K, 973K, 994K, 982, 972, 992, 993
- Cold Planers: PL83, PL72, PL87
- Compactors: 825K, C9.3B, CS-533C, CS-583D
- Engines: C7, C175-16
- Excavators: 307.5, 3126, 349F L, 336E, 637K, 325B L, 320B, 325B, 350 L, 349E L VG, 352F, 349E L, 345B, 3508B
- Skid Steer Loaders: 3126B
- Motor Graders: 16M, 18, 16, 120, 140H, 120H, 12H, 16M3, 160K, 14, 140K, 12K
- Wheel Excavators: M320
- Dozers: D6T, D5M, D8T, D6R III, D6R II, D6T LGP, D6M, D6N, D7E, D7, D10R
- Mini Excavators: 307, 306
- Wheel Loaders: 950, 980, 966, 950G, 928G, 962G, 966K, 986H
- Off-Highway Trucks: 796 AC, 797F, 793F, 794 AC, 793D, 773F, 798 AC, 793
Additional information
| Machine Model | 120, 120H, 12H, 12K, 14, 140H, 140K, 16, 160K, 16M, 16M3, 18, 306, 307, 307.5, 3126, 3126B, 320B, 325B, 325B L, 336E, 345B, 349E L, 349E L VG, 349F L, 350 L, 3508B, 352F, 637K, 773F, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 825K, 928G, 950, 950G, 962G, 966, 966K, 972, 973K, 980, 982, 986H, 990K, 992, 993, 994K, 995, C175-16, C7, C9, C9.3B, CS-533C, CS-583D, D10R, D5M, D6M, D6N, D6R II, D6R III, D6T, D6T LGP, D7, D7E, D8T, M320, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
