Description

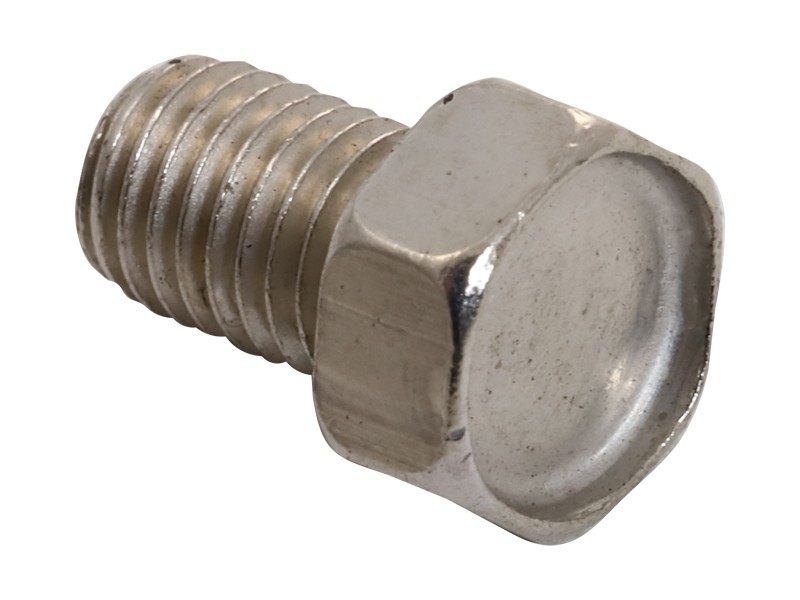

The slotted hex head screw is a screw with a hex head and a straight slot in the hex head. The hex head allows a wrench to be used to turn the screw, making it easier to turn and secure two objects together. It is made of strong, durable materials such as brass to ensure strength and withstand demanding working conditions.
Attributes
- Helps distribute the load over a larger area, which helps resist vibration and shock
- Nickel-plated alloy with good corrosion resistance
Applications
The slotted hex head screw provides a smooth, flat surface and can be used to prevent objects from moving.
Specifications
| Class or Grade | Brass Bronze Copper |
|---|---|
| Thread Size (Diameter × Pitch) | 1/4×28 mm |
| Thread Size (in – TPI) | 1/4-28 in |
| Thread | Finish Milled |
| Coating | Zinc |
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size | 0.250 mm (0.01 in) |
| Bolt Length | 9.53 mm (3/8 in) |
| Bolt Type | Hex Head |
| Handle Length | 2.72 mm (0.11 in) |
Compatible Equipment
- Motor Graders: 140H, 120H, 12H, 16H
- Track Loaders: 826G, 824C, 824G, 834H
- Compactors: CB-334D, CS-583D, CB-335D
- Dozers: D10N, D10R, D6N, D5M, D6R, D6M, D6R II, D9R, D9N, D5N, D7R, D7R II
- Mini Excavators: 301.5, 303.5
- Excavators: 325B L, 301.6, 320C, 301.8, 330B, 320B, 325B, 345B, 303
- Wheel Loaders: 962G, 950G, 980G, 924GZ, 972G, 928G, 836, 966F, 980H, 992D, 988F, 988H, 988G
Additional information
| Machine Model | 120H, 12H, 140H, 16H, 301.5, 301.6, 301.8, 303, 303.5, 320B, 320C, 325B, 325B L, 330B, 345B, 824C, 824G, 826G, 834H, 836, 924GZ, 928G, 950G, 962G, 966F, 972G, 980G, 980H, 988F, 988G, 988H, 992D, CB-334D, CB-335D, CS-583D, D10N, D10R, D5M, D5N, D6M, D6N, D6R, D6R II, D7R, D7R II, D9N, D9R |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors |
| Part Source | Genuine OEM |
