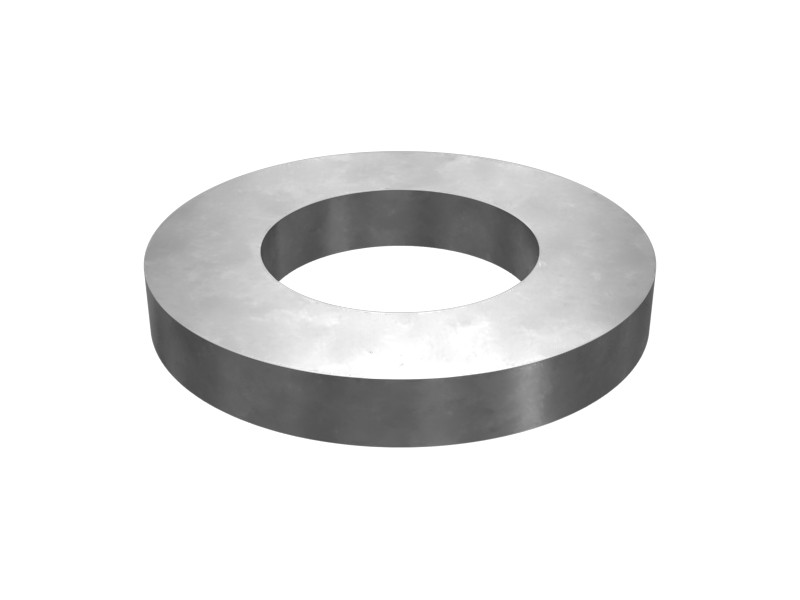

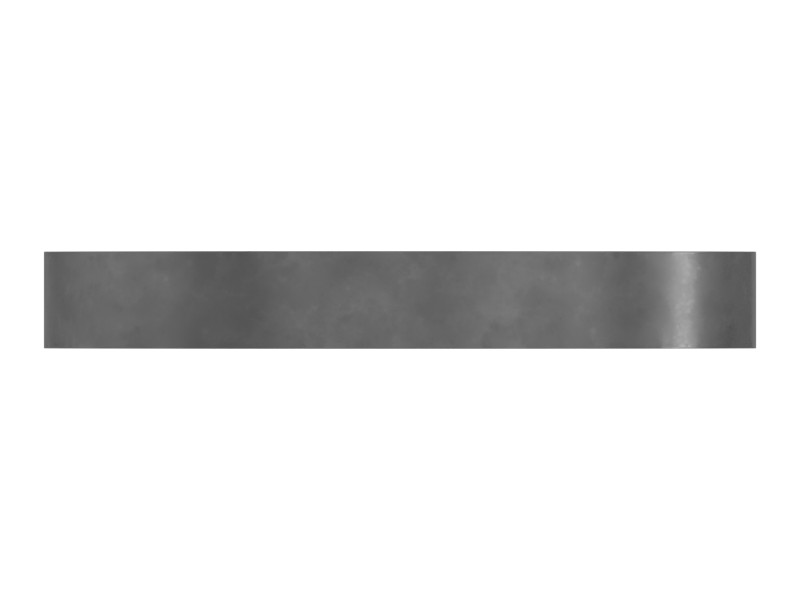

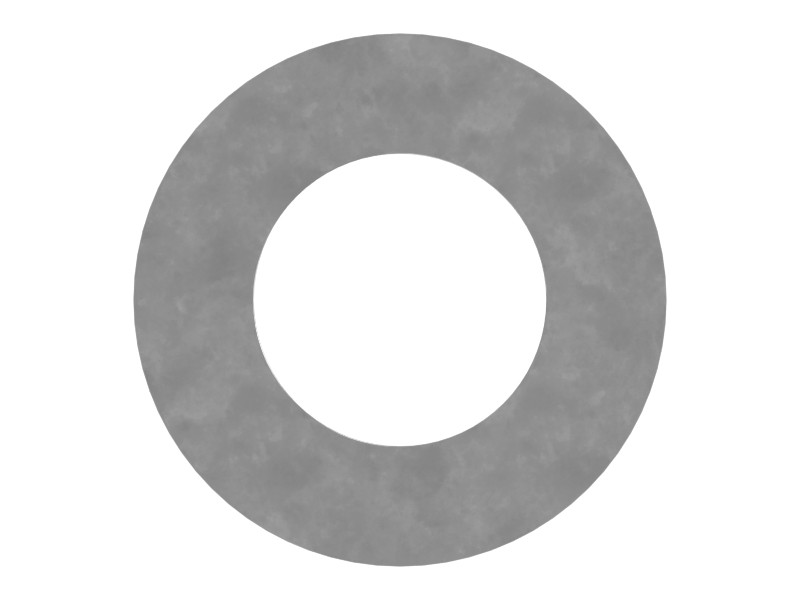

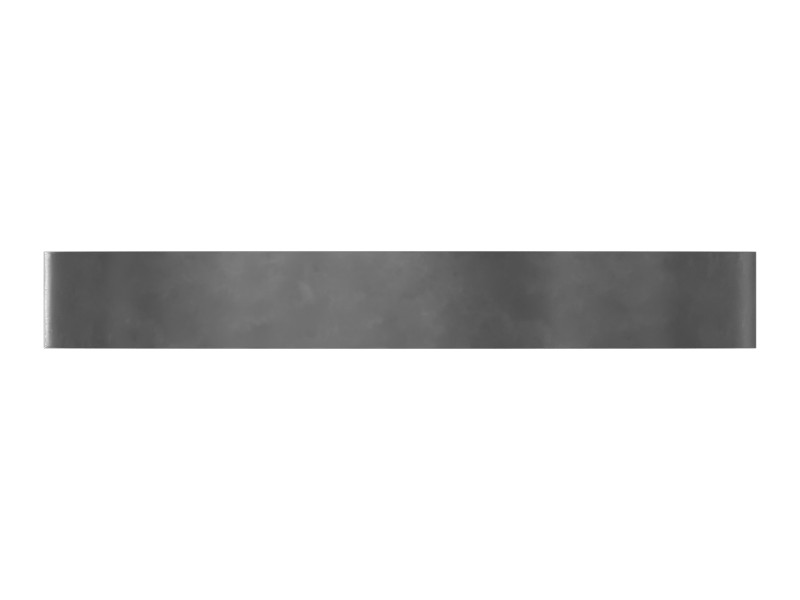

8T-4896 2.5 mm Thick Hard Washer
Cat® hard washer designed for 3/8 inch fasteners, preventing the fastener from sinking into the material and distributing the load more evenly.
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Hardened | Yes |
|---|---|
| Surface Finish | Zinc Plated |
| Inside Diameter (ID) – 1 | 0.41 in |
| Outside Diameter (OD) – 2 | 0.72 in |
| Thickness – 3 | 0.09 in |
| Outside Diameter | 18.5 mm (0.728 in) |
| Inside Diameter | 10.2 mm (0.402 in) |
| Material | HARDENED STEEL |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M10 mm (3/8 in) |
| Coating | Zinc plating provides low to moderate corrosion protection and electrical conductivity. Salt spray resistance: 96 hours with no white rust. Coating color – silver. |
| Thickness | 2.5 mm (0.098 in) |
Compatible Equipment
- Generator Sets: G3516C, G3516, C9, C3.3DE33E0, C4.4, C2.2DE18E3, 3406B, 3516C, 3512E, 3406C, 3512B, C7.1
- Track Loaders: 993, 953, 994K, 992, 963, 982, 973K, 953K, 834H, 995, 826H, 816F, 824C, 824G, 990K, 826G, 953D, 826K, 963K, 963D
- Cold Planers: PL87, PL61, PL83, PM620, PM622, SE50 VT, PL72, PM-200, TH55-E70, TH360B
- Compactors: CS-533C, CS-563E, CS-56, CB-335D, CB-66B, CB-334D, CW-34, CS78B, CS68B, CB-34B, CB-44B, CB-24B, CS-54, CB16, CB2.9, CS74B, CW-16, CB-36B, CB-534D, CB-434D, 815, 816, 814, CC2.7 GC, CB2.5 GC, CS54B, CP56B, CB2.7 GC, CS56B, CS12, CS11, CP11 GC, CB2.7, CB2.5, C9.3B, CP12 GC, CS12 GC, 834K, CC-34B, CB-64B, 824K, 825K, CP54B, CS-583D, C13B, CS79B, CB-564D, C-9, CB13, C-15, CB10, CB15, CS-533E, CS64B, CS-54B
- Engines: C13, C7, C32, C15, C27, C11, C6.6, C18, C175-16, C12
- Excavators: 326D2, 320D, 3456, 320D2, 330, 305, 374D L, 329D2, 303.5E2 CR, 3126, 326D2 L, 329D2 L, 329D, 390F L, 390D L, 374F, 374, 316 GC, 313 GC, 313, 305E2 CR, 395, 120 GC, M325D L MH, 3516B, 3516E, 3512C, 326, 6030, 6040, 320E, 323 GX, 336 GC, 350, 303.5CR, 637G, 3508B, 320D FM, 323, 320 GC, 365B L, 303CR, 302.7CR, 637K, 345 GC, 335, 325, 313 GX, 312 GX, 316 GX, 621K, 621G, 352, 320D3, 6015, 313D2, 312 GC, 315 GC, 320, 333, 330 GC, 320 GX, 305 CR, 621H, 340, 314C, 312C, 312C L, 301.8, 301.6, 330GC, 320D L, 326 GC, 333 GC, 6060, 315, 6020B, 350MHPU, 3101, 657G, 323 GC, 330C L, 320D2 L, 330 L, 320C, 312E L, 323D L, 328D LCR, 318D2 L, 325D L, 314D LCR, 312D L, 313F L, 312D2 GC, 330B, 320D2 GC, 325C, 325B L, 329D L, 311D LRR, 320D GC, 324D, 312D2, 315D L, 325D, 335F LCR, 323D, 315F LCR, 314D CR, 320D RR, 329E L, 324D L, 330D2, 325C L, 312D2 L, 315C, 312D, 326D L, 323D2 L, 637E, 329E, 313D2-GC, 330D2 L, 330C, 320C L, 313D2 GC, 323D2, 320B, 326GC, 323GC, 313F LGC, 365C L, 385C L, 365C, 390F, 385C, 350 L, 345B, 345C L, 390D, 385B, 385C FS, 374F L, 352F, 365B, 6015B, 428F, 345C, 318D2, 312F, 312E, 6018
- Asphalt Pavers: AD30, AD45, AP-600D, AP355F, AP655F L, AP300F, AP655F, AD63
- Skid Steer Loaders: 299D3 XE, 289D3, 24, 249D3, 232D3, 226D3, 239D3, 236D3, 232D, 236B3, 313D2 LGP, 246C, 279C, 3126B, 262C
- Motor Graders: 16M, 140 GC, 12K, 160K, 140K, 120, 14, 14M, 349 GC, 316F, 16, 18, 140H, 120H, 12H, 16H, 140G, 16M3, 3606
- Wheel Excavators: MD6200, MD6310, MD6250, IT14G, M315GC, M320, M322D, M315
- Dozers: D8, D9R, D10T2, D11N, D11R, D10N, D11T, D10R, D10T, D5H, D6R II, D7H, D6R, D8R, D7R II, D9N, D6N, D4E, D6R III, D8N, D6R LGP, D8T, D6T, D7G, D7R, D9T, D6T LGP, D6M, D10, D5M, D4G, D3K2 LGP, D7E, D5K LGP, D9L, D8L, D6G, D6G2 LGP, D6K2, D5K XL, D5N, D11, D6R XL, D5K2 XL, D3G, D9, D7, D4, D1, D5G, D7G2, D6G2 XL
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 305.5 GC, 302CR, 307B, 305.5E, 307E2, 303.5E, 301.7CR, 301.5, 308, 310
- Wheel Loaders: R1600H, 992C, 992D, 988H, R1300G, R3000H, R1700G, R1700 II, R2900G, 988G, 988F, RM500B, 986H, 980, 938M, 834, 836, 980G, R1700K, RM400, 938K, 924K, M314, 988K, 910, 950 GC, 926M, 966H, R1700 XE, R2900 XE, 950H, 950, 980H, 950G, 972G, 966F, 990H, 980L, 928G, 928HZ, 972H, 950L, 962G, 966K, 906K, 924HZ, 962L
- Off-Highway Trucks: 785D, 797F, 745, 777, 789D, 770G, 7495, 793F, 793D, 794 AC, 798 AC, 796 AC, 735, 789, 730, 773, 740 GC, 740, 772G, 775G, 793, 785, 725, 777D, 773E, 777E, 771D, 773F, 740B, 745C, 773D, 725C2
