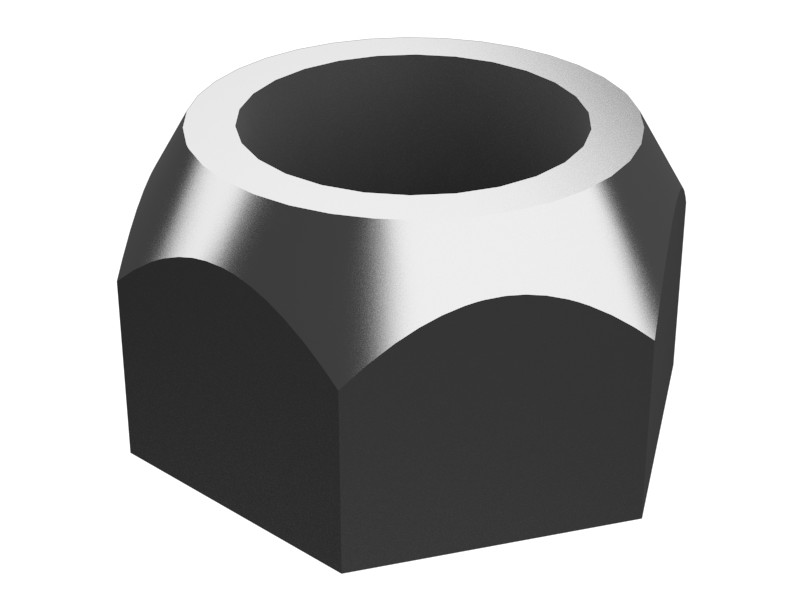

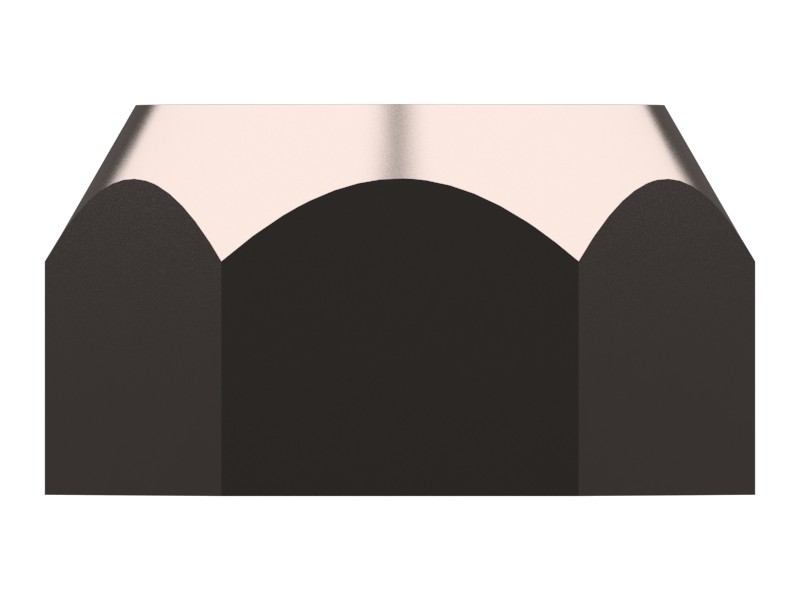

8T-4778 M16 x 2 mm Inner Ring Lock Nut
Track Nut
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Track nuts are used to secure track shoes to the link assembly.
Specifications
| Thread | Coarse Thread UNC |
|---|---|
| Hardened | Yes |
| Hole Thread Pitch | 2.00 |
| Thread Size | M16 mm (0 in) |
| Nut Width – 3 | 24 mm |
| Class or Grade | ISO 898-2 Class 10 |
| Thread Direction | RH |
| Thickness | 15.2 mm (0.598 in) |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Height | 15 mm |
| Drive Chain | 24 mm (0.945 in) |
| Nut Model | Lock Nut |
| Material | STEEL |
| Material Description | ISO 898-2 Class 10 |
| Coating | Zinc Plated |
Additional information
| Part Source | Genuine OEM |
|---|
