Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 100 mm (3.937 in) |

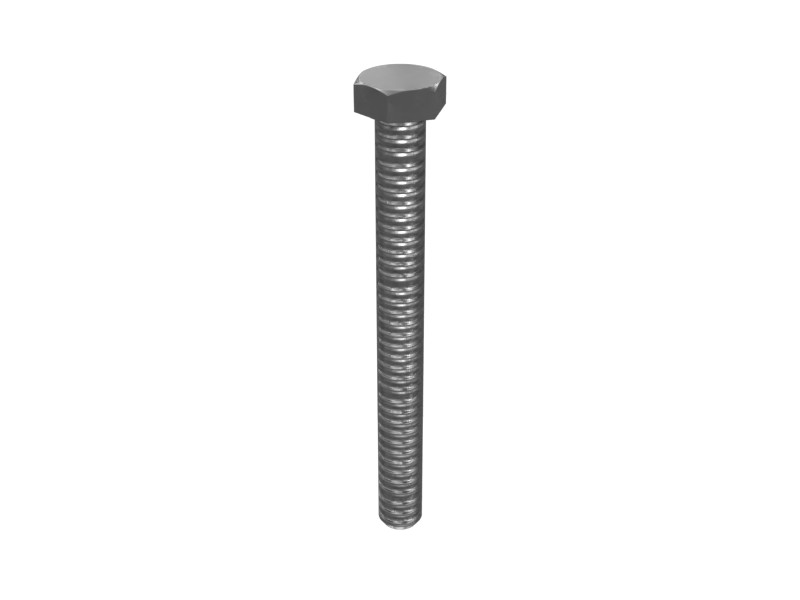

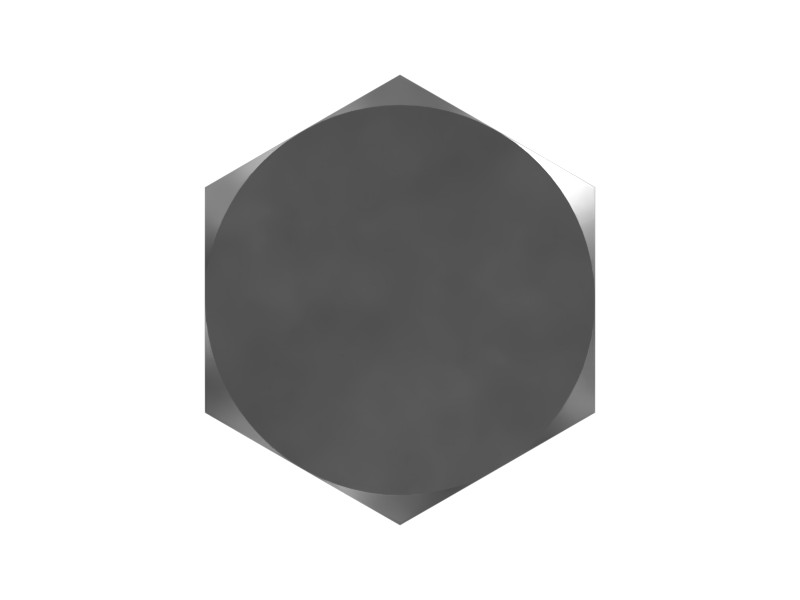

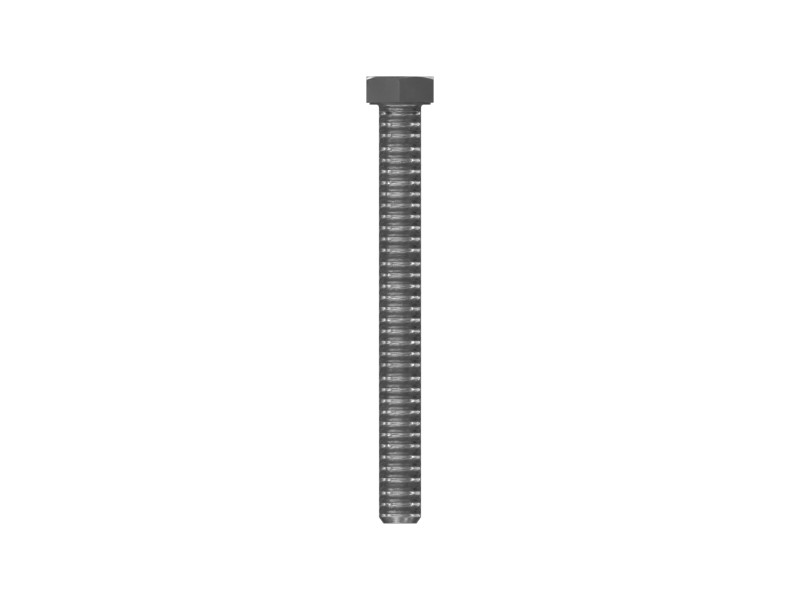

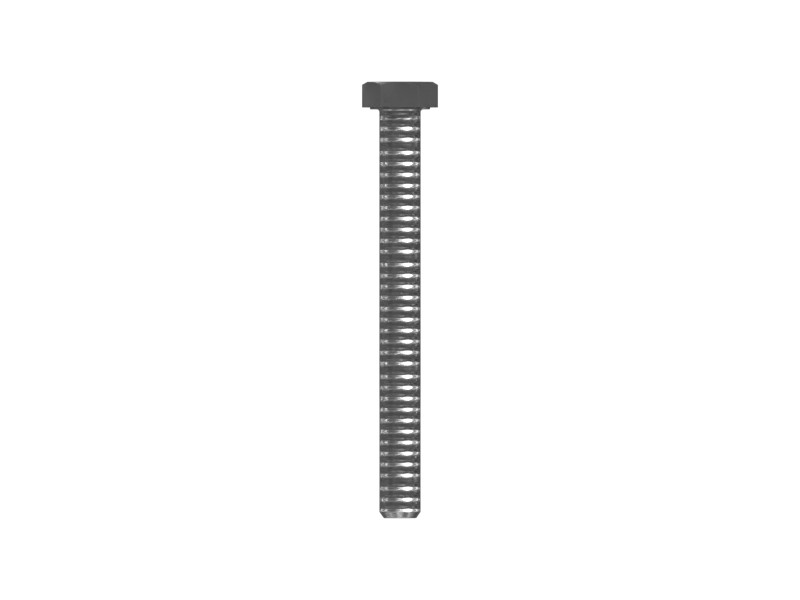

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 74 mm (2.913 in) |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: 3516C, 3512E, C9, 3512B
- Track Loaders: 826K, 982, 963D, 973K, 995, 953, 972, 992, 994K, 826H, 953K, 824G, 990K, 824C, 963K, 826G, 963, 816F, 953D, 993
- Cold Planers: PM620, PM622, PL83, PL87, PL61, PL72, PM-200, TH255C
- Compactors: CB1.7, CB1.8, 825K, 824K, 834K, 814, CP12 GC, CS7, CB-534D, CS12 GC, CS11, 816, 815, CB2.9, CB2.5, CB2.7, CP11 GC, CB-334D, CW-34, C13B, C9.3B, CW-16, CS-563E, CS-583D, CB-564D, CB-335D, CS-533C, CB2.7 GC, CB2.5 GC, CS12, CS-533E
- Engines: C27, C15, C32, C13, C11, C18, C175-16
- Excavators: 330, 374D L, 390F L, 320D2, 336D, 320D, 303.5E2 CR, 336D2, 326D2 L, 329D2 L, 305C CR, 329D, 326D2, 306E2, 305, 349D2 L, 374F, 349D2, 349D, 390D L, 329D2, 308D, 306E, 313 GC, 313, 316 GC, 374, 330D L, 349F L, 305E2 CR, 355, 336, 303.5CR, 303CR, 313D2, 312 GC, 315 GC, 320 GX, 320 GC, 320, 323 GX, 320D3, 326, 336 GC, 345 GC, 323, 395, 352, 340, 320D3 GC, 305 CR, 335, 350, 323 GC, 6060, 315, 336E L, 637K, 325, 314D LCR, 330 GC, 621K, 326 GC, 326GC, 330GC, 323GC, 333, 621G, 349, 3516E, 432, 6015, 6030, 120 GC, 6040, 336F L, 385C, 345C, 349D L, 390F, 385C L, 416E, 340D L, 385C FS, 621H, 349E L, 365C, 345D L, 6015B, 637E, 345C L, 385B, 350MHPU, 329E, 329E L, 313 GX, 312 GX, 3508B, 336D L, 320D L, 3516B, 333 GC, 6020B, 325C L, 325C, 312C L, 320D2 L, 324D, 330 L, 324D L, 329D L, 323D L, 320D FM, 325D L, 336F, 323D2 L, 325B L, 336E, 315C, 320C, 311B, 312D L, 330C, 312D, 336E H, 336E LH, 320D2 GC, 336D2 GC, 330B, 434F2, 312E L, 313F L, 336E LN, 312D2, 320B, 312C, 320D RR, 311D LRR, 313D2-GC, 328D LCR, 318D2 L, 315F LCR, 330D2 L, 330D, 312D2 L, 315D L, 330C L, 330D2, 314C, 336D2 L, 325D, 311C, 312E, 320D GC, 336F LN, 336D2 XE, 313D2 GC, 320E, 323D2, 312D2 GC, 336F L XE, 318D2, 320C L, 314D CR, 657G, 365B, 349E, 335F LCR, 637G, 365B L, 345B, 345D, 340D2 L, 349E L VG, 390D, 365C L, 416F2, 352F, 374F L, 316 GX, 350 L, 3512C, 6015 FS, 6018, M325D L MH, 3101, 325B, 318D L, 312F, 323D, 326D L
- Asphalt Pavers: AP355F, AP300F, AD30, AD45, AP-600D, AP655F, AP655F L, AD63
- Skid Steer Loaders: 249D3, 24, 232D3, 226D3, 226B3, 239D3, 272D3, 272D3 XE, 299D3 XE, 289D3, 246D3, 232D, 216B3, 246D, 262D, 226B, 262D3, 236, 236B3
- Motor Graders: 120, 16M, 140 GC, 316F, 14, 14M, 16, 16M3, 160K, 140H, 18, 12H, 140K, 12K, 16H, 120H, 349 GC
- Wheel Excavators: MD6310, MD6250, M315, M320, MD6200, M315D, IT14G, M315D2, M317D2, M322D, M320D2, M313D, M315GC
- Dozers: D11, D6T LGP, D10, D6T, D6R LGP, D6R XL, D6R, D8R, D7, D8, D8T, D4, D9, D9R, D10R, D11R, D10T2, D5H, D6R II, D5K LGP, D6R III, D6M, D5M, D6N, D4G, D3G, D11T, D6K2, D5N, D7E, D9T, D8N, D5G, D3K2 LGP, D7R, D5K XL
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 306.5, 306, 305.5E2, 303.5, 305.5, 305.5E, 307D, 303.5E, 308, 307, 307C, 307E2, 305E2
- Wheel Loaders: M314, 950, 986H, 980, 966H, RM400, 834, R2900 XE, R1700K, 836, 972H, 950H, 938M, 972L, 988K, 980H, 972G, 966, 950L, 926M, R1700 XE, 924K, 950G, 924GZ, 962G, R2900G, 938K, 928HZ, 928G, 980G, 980L, 966L, 990H, 966F, 966K, RM500B, 906K, R3000H, R1700G, 962L, 950 GC
- Off-Highway Trucks: 793D, 785, 798 AC, 794 AC, 789, 740 GC, 793F, 789D, 740, 777, 770G, 797F, 796 AC, 745, 793, 785D, 7495, 775G, 730, 777E, 735, 772G, 773F, 773E, 773, 725C2, 740B, 745C, 725, 777D
