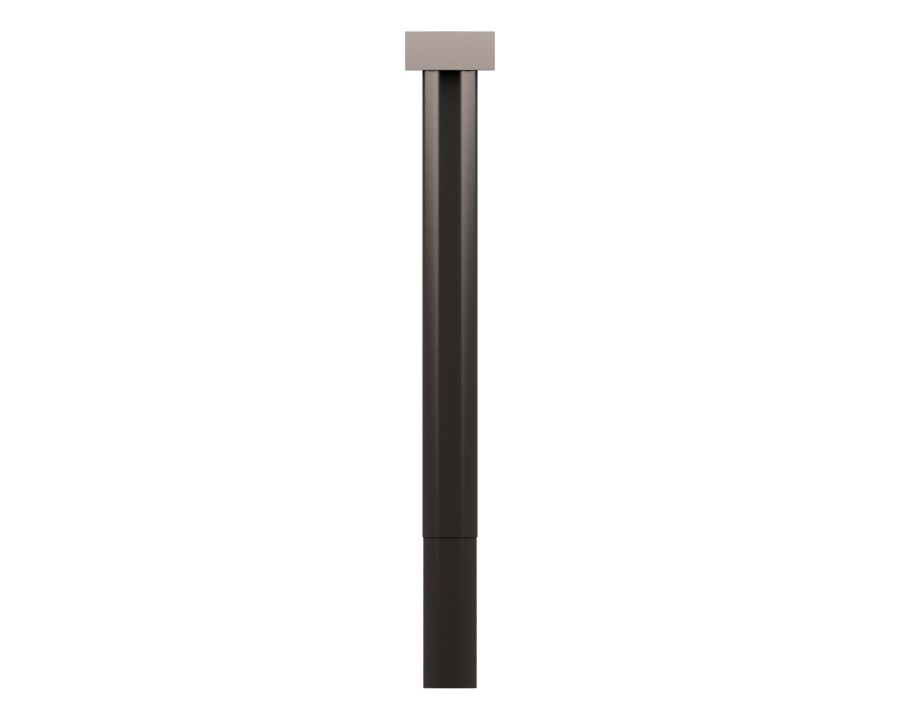

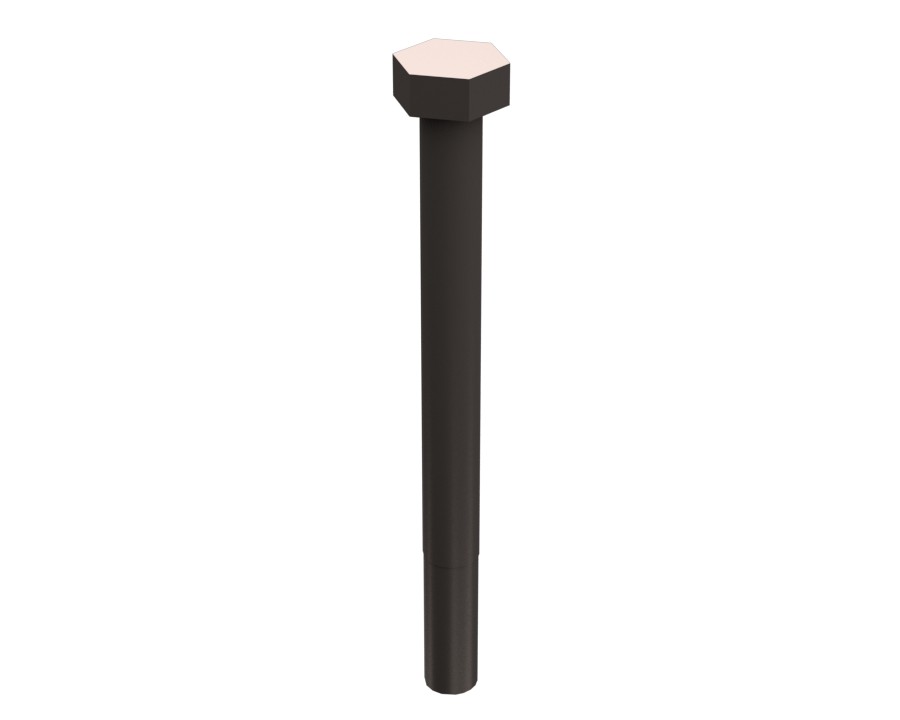

Description
The bolt material hardness and thread design provide high strength and resistance to bolt thread stripping.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | M8 mm (0 in) |
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M8X1.25 mm |
| Bolt Length | 90 mm (3.543 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 68 mm (2.677 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: G3516, 3512B
- Track Loaders: 826K, 826H, 963, 982, 993, 995, 990K, 994K, 834H, 953
- Cold Planers: SE60 VT XW, PL87, PL72, PM620, PL61, PM622, PL83
- Compactors: CB1.7, CB1.8, CS7, 825K, 834K, CB-44B, 824K, CP56B, CS68B, CS56B, CS78B, CS74B, CS12 GC, CP12 GC, CP11 GC, CS12, CW-34, CS-533C, CS-583D, CB-434D, CB-14, CW-16, 816, 815, 814, CB10
- Engines: C32, C7, C27, C12
- Excavators: 320D2, 329D, 320D, 330, 329D2, 326D2, 303.5E2 CR, 374F, 336D, 390F L, 349D2, 3126, 349D, 336D2, 326D2 L, 305C CR, 303C CR, 349D2 L, 308D, 329D2 L, 330D L, 374, 352, 355, 320D L, 311D LRR, 314D LCR, 324D L, 329D L, 350, 336, 395, 320, 326, 340, 320 GC, 320 GX, 120 GC, 336F, 328D LCR, 336F L, 323D L, 330C, 336E L, 325D L, 320E, 320C, 320D2 L, 323D, 336 GC, 330D2 L, 301.8, 325C, 320D FM, 312C, 315D L, 330D, 311C, 313D2, 312D2 GC, 330C L, 320B, 329E L, 336D2 L, 349, 330D2, 323GC, 336D L, 330 GC, 301.6, 3516E, 302.7CR, 303CR, 303.5CR, 637K, 432, 323, 345 GC, 333, 312D, 312D L, 312E, 314D CR, 312E L, 330GC, 340D L, SE60 V XW, 324D, 336F L XE, 320D RR, 416F2, M325D L MH, 349D L, 345D L, 340D2 L, 325C L, 336F LN, 323D2 L, 318D2 L, 312D2, 314C, 320D2 GC, 335F LCR, 325D, 345C, 345D, 385C, 349E, 345C L, 374F L, 325B L, 313D2 GC, 312C L, 336D2 XE, 318D L, 315C, 336E LH, 313F L, 312D2 L, 323D2, 315F LCR, 326D L, 365B, 390F, 352F, 336E, 320D3, 329E, 365B L, 349E L VG, 416E, 349E L, 385C L, 345B, 434F2, 385B, 365C L, 428F, 3516B, 336E H, 350MHPU, 323 GX, 336D2 GC, 336E LN, 318D2, 311B, 320C L, 312F, 313D2-GC
- Asphalt Pavers: AP655F L, AP655F, AP355F, AD30
- Skid Steer Loaders: 216B3, 226B3, 236, 262C, 279C, 246C, 236B3, 226B
- Motor Graders: 140 GC, 316F, 349 GC, 140G, 14
- Wheel Excavators: M320, MD6310, MD6250, MD6200, M315
- Dozers: D6N, D5N, D7R II, D4, D6K2, D6R, D6M, D5M, D6R II, D7R, D6R III, D6T LGP, D6T, D6R XL, D7E, D8T, D5G, D4G, D9T, D1, D3G, D11T, D11R, D10R, D10T, D11
- Mini Excavators: 303.5C, 306, 303.5E, 302CR, 305.5, 307C, 307B, 301.5, 307D, 303.5D
- Wheel Loaders: 980, 834, 926M, 962G, 950G, 972L, 966L, 950L, 962L, 988K, 906K, 966H, 990H, 950H, 938K, M314, 910, R2900 XE, 836, R2900G, 938M, 988F, 988H, 988G, 980L, 992D, 924K, R1700 XE, R1700K
- Off-Highway Trucks: 740, 740B, 735, 730, 725, 793F, 789D, 794 AC, 785, 789, 796 AC, 725C2, 793D, 797F, 785D, 793
