Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, installation torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Fluid bearing group• Designed to
meet or exceed the performance of industry-standard parts and provide leak-free connections

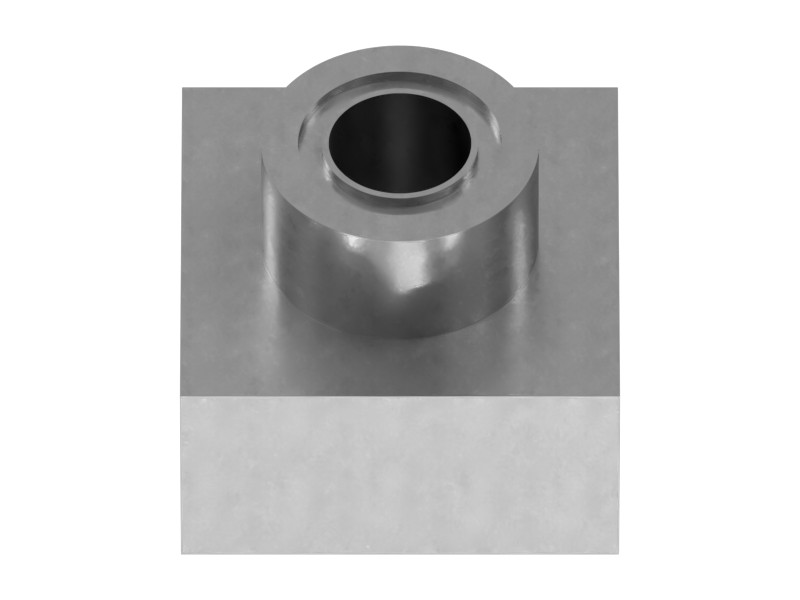

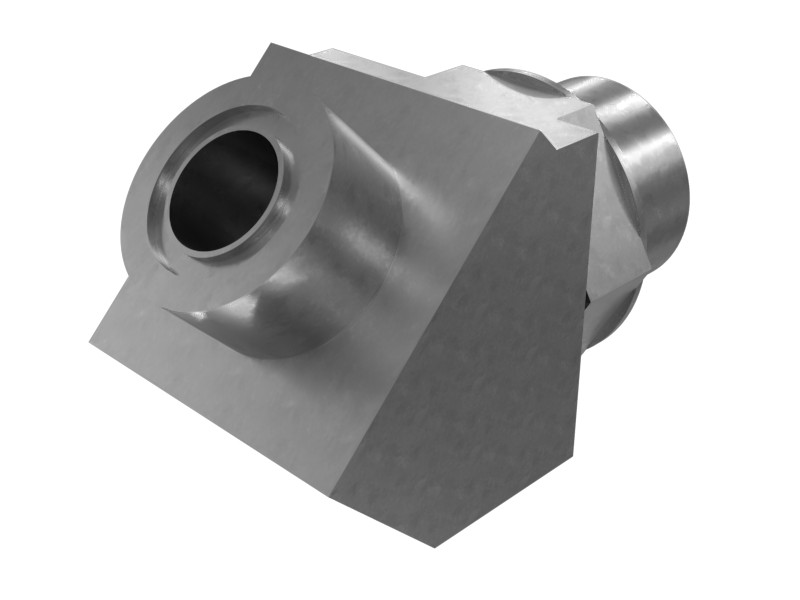

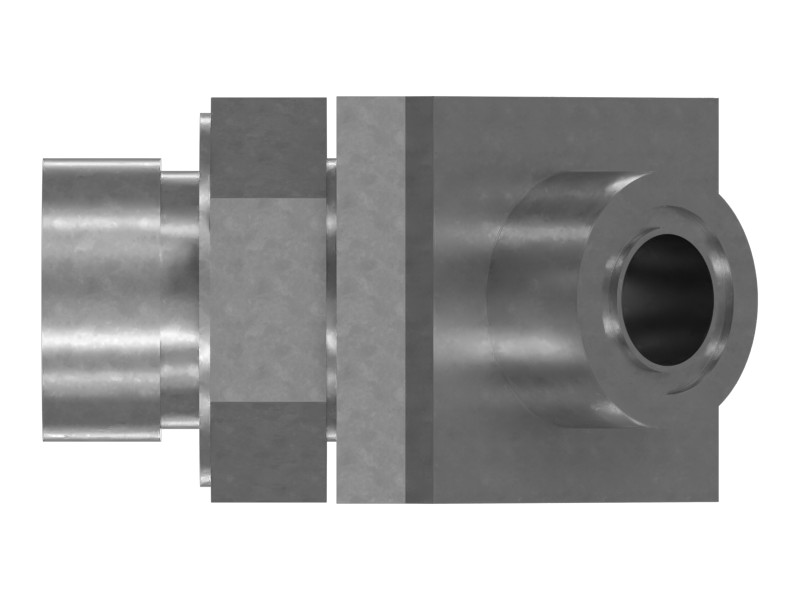

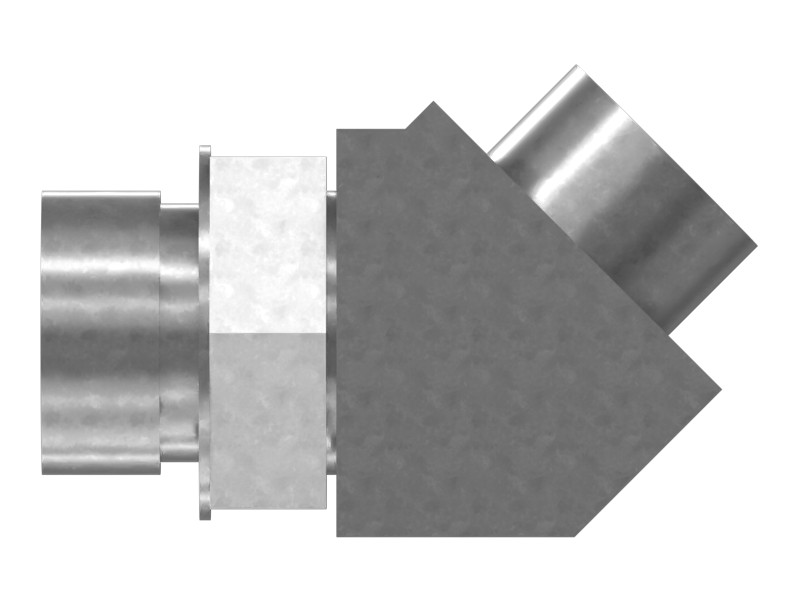

- Images provided are for reference only. Adapter construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Adapters are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Plated Steel |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Coolant and DEF Compatible Seals | 291-8145 (1-3/16-12), 6V-5064 (1-5/16-12) |
| Oil and Fuel Compatible Seals | 238-5083 (1-3/16-12), 238-5084 (1-5/16-12) |
| Transmission and Hydraulic Oil Compatible Seals | 4K-1388 (1-3/16-12), 7M-8485 (1-5/16-12) |
Compatible Equipment
- Generator Sets: 3512B
- Track Loaders: 834H, 990K, 826K, 972, 826H, 994K, 995
- Cold Planers: PL87, PL83, PL72, PL61
- Compactors: 824K, 825K, 834K, CB-44B, CB-534D, CB-434D, CB10
- Engines: C32
- Excavators: 390D L, 326D2 L, 320D, 329D2, 329D, 320D2, 305C CR, 329D2 L, 330, 336D, 326D2, 390F L, 374D L, 374F, 313 GC, 316 GC, 330D L, 313, 637K, 365B L, 340, 336 GC, 385C L, 374F L, 336, 621K, 6030, 320, 313 GX, 312C, 336D L, 314D CR, 336D2 L, 325B L, 323, 314D LCR, 311C, 320B, 336E, 329D L, 320D L, 312D L, 324D L, 318D2 L, 323D L, 314C, 312 GC, 330D2, 312C L, 320E, 325C L, 320 GC, 311D LRR, 336E L, 323D2 L, 320D FM, 323D, 320D2 L, 325D L, 324D, 320C, 320D2 GC, 315D L, 395, 312D, 330D, 330D2 L, 336E LN, 315, 315 GC, 3508B, 312 GX, 3101, 316 GX, 385C, 385C FS, 390D, 365C, 390F, 345B, 365C L, 6020B, 345C, 365B, 621H, 6015, 325C, 325B
- Asphalt Pavers: AD45
- Skid Steer Loaders: 24, 262C, 246C, 279C, 236D3, 299D3 XE, 239D3, 262D3, 259D3, 249D3, 242D3, 272D3, 272D3 XE
- Motor Graders: 120, 16M3, 16, 18, 14M, 14
- Wheel Excavators: MD6250, IT14G, M315, M315GC
- Dozers: D8, D8T, D6T, D6R, D5M, D8R, D7R II, D4, D6N, D11, D5N, D7, D9, D10T2, D10N, D11T, D10T, D10R, D6R II, D9R, D9T, D6T LGP, D6R III, D6K2, D8N, D6R LGP, D6R XL
- Compact Track Loaders: 299D3
- Wheel Loaders: RM400, 924K, 972G, 988K, 966L, 980L, 924GZ, 990H, 926M, 938K, 972L, 938M, 966, 928G, 988H, 988G, 836, R2900 XE, R1700 XE, 834, R1700K
- Off-Highway Trucks: 794 AC, 770G, 735, 725, 793, 797F, 798 AC, 772G, 793F, 740, 785D, 773D, 771D, 789, 730, 796 AC, 789D, 773E, 785, 777, 773, 777E, 793D
