Description
The bolt material hardness and thread design provide high strength and resistance to bolt thread stripping.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M6 mm (0 in) |
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Bolt Length | 70 mm (2.756 in) |

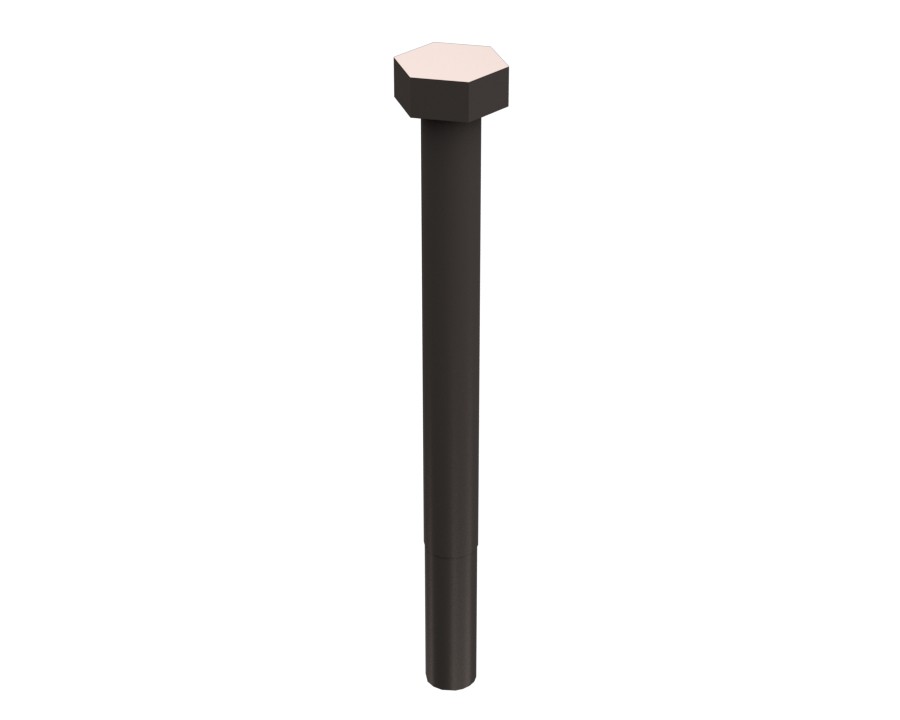

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 52 mm (2.047 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3512B, C9, G3516C, DG30
- Track Loaders: 990K, 816F
- Cold Planers: SE50 VT, PM622, PM620, TH360B, PL61, SE60 VT XW
- Compactors: CS12, CB-534D, CB-434D, CS-56, CW-34, CB-14, CS-54, CB-564D, CB2.5, CS-563E, CB2.9, CB2.7, CP56B, CS78B, CS56B, CS68B, CS74B, CB2.5 GC, CC2.7 GC, CB2.7 GC, CS-533E
- Engines: C7, C13, C15, C27, C32, C18
- Excavators: 3456, 301.7D, 336D, 330, 330D L, 637K, 621K, 312 GX, 312 GC, 621H, 345B, 6020B, 350 L, SE60 V XW, 3516E, 3516B, 428F, 434F2, 385C, 432, 3508B, 325B L, 320B, 336D L, 301.8, 325B, 311C, 330 L, 325C, 314C, 311B, 330C, 325D L, 326, 6030, 330B, 6040
- Asphalt Pavers: AP655F, AD30, AP355F, AP300F, AP-600D, AP655F L
- Skid Steer Loaders: 246C, 262C, 279C
- Motor Graders: 16M, 14, 16M3, 18, 16, 14M, 16H
- Wheel Excavators: M315, MD6200, MD6310, M313D, M320D2, MD6250, M317D2, M320, M322D, M315D, M315D2, IT14G, M315GC
- Dozers: D1, D5K2 XL, D10T2, D11T, D3K2 LGP, D10T, D6T LGP, D6K2, D4, D10R
- Wheel Loaders: 950H, 972H, 980H, 966H, 972G, 980G, 950G, 962G, 906K, 950 GC, 986H, R1700 II, RM500B, M314, 966F
- Off-Highway Trucks: 797F, 740B, 789D, 773F, 745C, 7495, 789, 773
