Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, installation torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Fluid bearing group• Designed to
meet or exceed the performance of industry-standard parts and provide leak-free connections

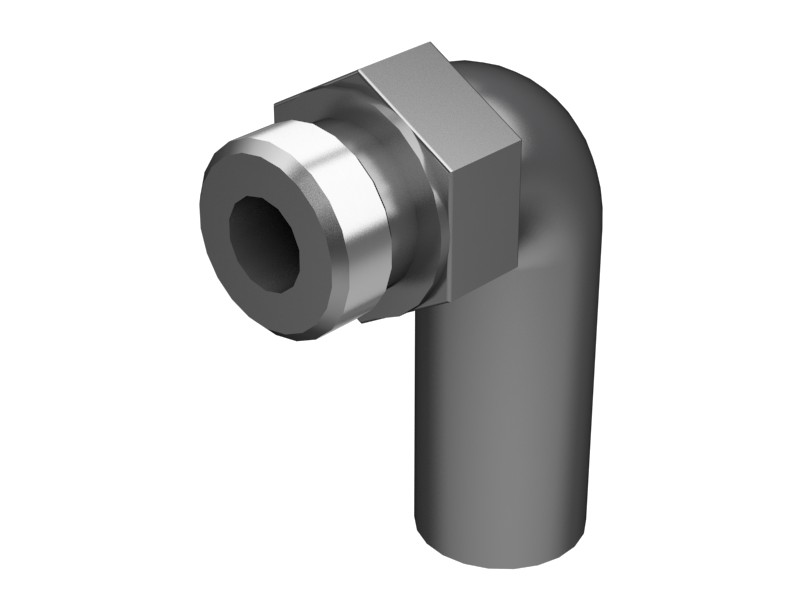

- Images provided are for reference only. Adapter construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Adapters are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Plated Steel |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Transmission and Hydraulic Oil Compatible Seals | 3D-2824 (1-1/16-12) |
| Oil and Fuel Compatible Seals | 238-5082 (1-1/16-12) |
| Coolant and DEF Compatible Seals | 6V-5063 (1-1/16-12) |
Compatible Equipment
- Generator Sets: 3512B, 3512E, G3516C
- Track Loaders: 972, 993, 834H, 990K, 826K
- Compactors: 825K, 824K
- Engines: C7, C32, C15
- Excavators: 336D2, 305C CR, 374F, 307.5, 374, 637K, 3516B, 395, 325, 350, 336, 3101, 352, 345 GC, 340, 336D2 L, 336D2 GC, 336 GC, 657G, 3512C, 374F L, 621K, 621H, 349, 340D2 L, 320 GC, 355, 315F LCR, 336D2 XE, 637G, 637E, 323, 335
- Asphalt Pavers: AP655F, AD45, AP655F L
- Skid Steer Loaders: 24
- Motor Graders: 140G, 160K, 349 GC, 140K, 14
- Wheel Excavators: MD6250, IT14G
- Dozers: D11T, D11, D9, D7, D10T, D11N, D11R, D10R, D10T2, D9R, D6N, D9T, D6T LGP, D7R, D7E, D10, D10N
- Mini Excavators: 310, 308.5, 307
- Wheel Loaders: 950, R1700K, 966, 966K, 950L, 988H, 988G, R1700 XE, 962L, 972G, 990H, 966L, 972L, 980H, 966H, R2900 XE, 986H
- Off-Highway Trucks: 798 AC, 794 AC, 793F, 785, 796 AC, 777E, 789, 773
Additional information
| Machine Model | 14, 140G, 140K, 160K, 24, 305C CR, 307, 307.5, 308.5, 310, 3101, 315F LCR, 320 GC, 323, 325, 335, 336, 336 GC, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340, 340D2 L, 345 GC, 349, 349 GC, 350, 3512B, 3512C, 3512E, 3516B, 352, 355, 374, 374F, 374F L, 395, 621H, 621K, 637E, 637G, 637K, 657G, 773, 777E, 785, 789, 793F, 794 AC, 796 AC, 798 AC, 824K, 825K, 826K, 834H, 950, 950L, 962L, 966, 966H, 966K, 966L, 972, 972G, 972L, 980H, 986H, 988G, 988H, 990H, 990K, 993, AD45, AP655F, AP655F L, C15, C32, C7, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D6N, D6T LGP, D7, D7E, D7R, D9, D9R, D9T, G3516C, IT14G, MD6250, R1700 XE, R1700K, R2900 XE |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
