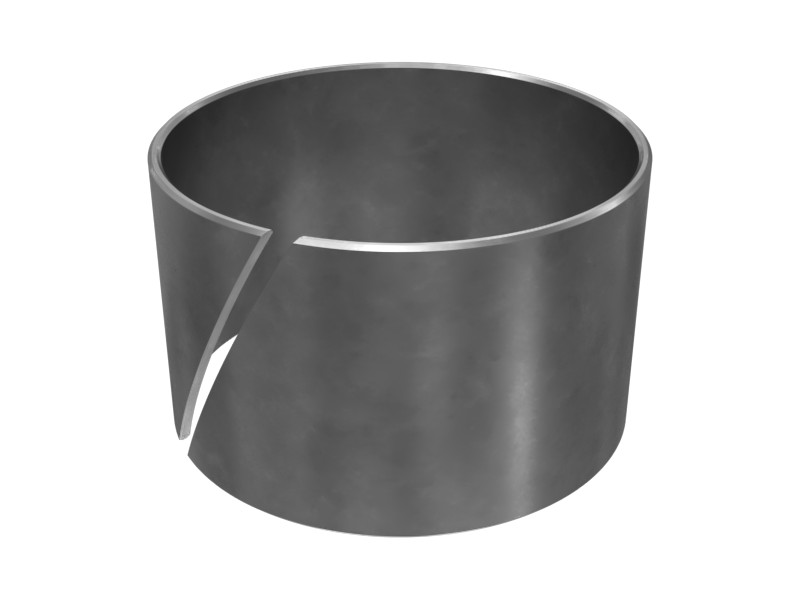

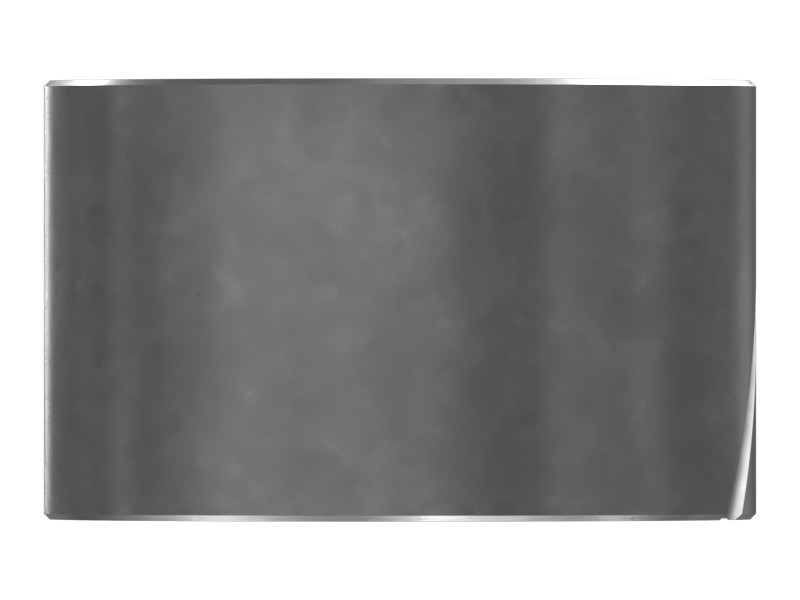

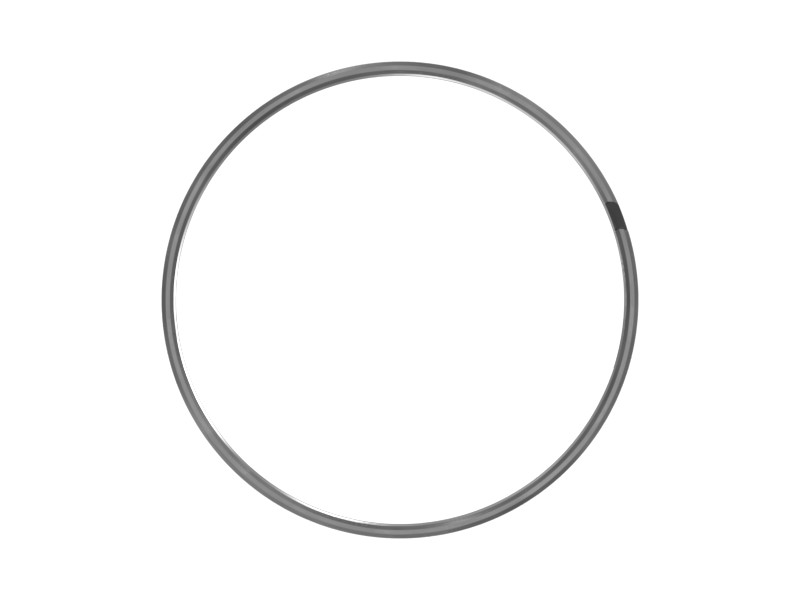

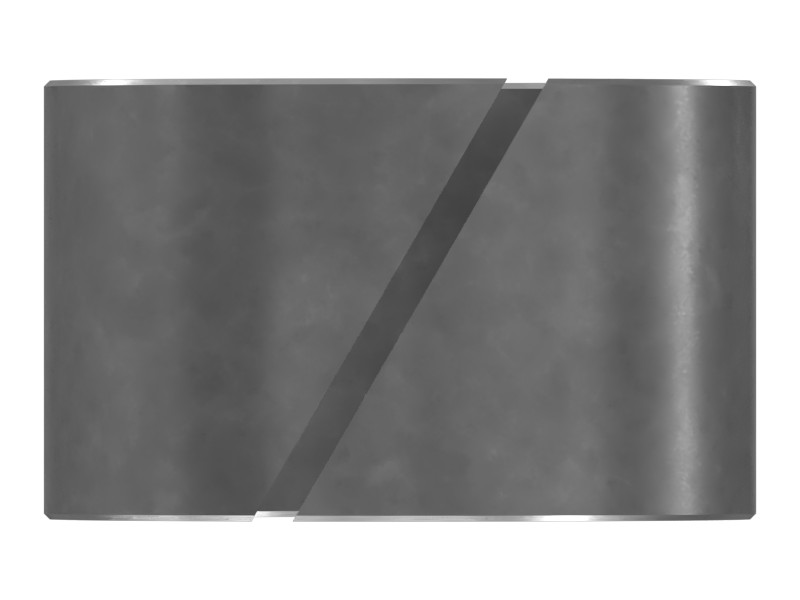

8T-3330 95.25 mm ID Wear Ring
Cat® 95.25 mm ID Plastic Wear Ring Used in Hydraulic Cylinder Heads
Description
Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Groove Width – A (+/- 0.003 in) | 2.44 in |
|---|---|
| Groove Width – A (+/- 0.0762 mm) | 62.00 mm |
| Groove Diameter – B (+/- 0.001 in) | 3.95 in |
| Rod Diameter | 95.25 mm (3.75 in) |
| Groove Diameter – B (+/- 0.0254 mm) | 100.33 mm |
| Material | Plastic Plastic |
Compatible Equipment
- Dozers: D11, D11T, D11R, D11N
- Wheel Loaders: 966H, 972H
