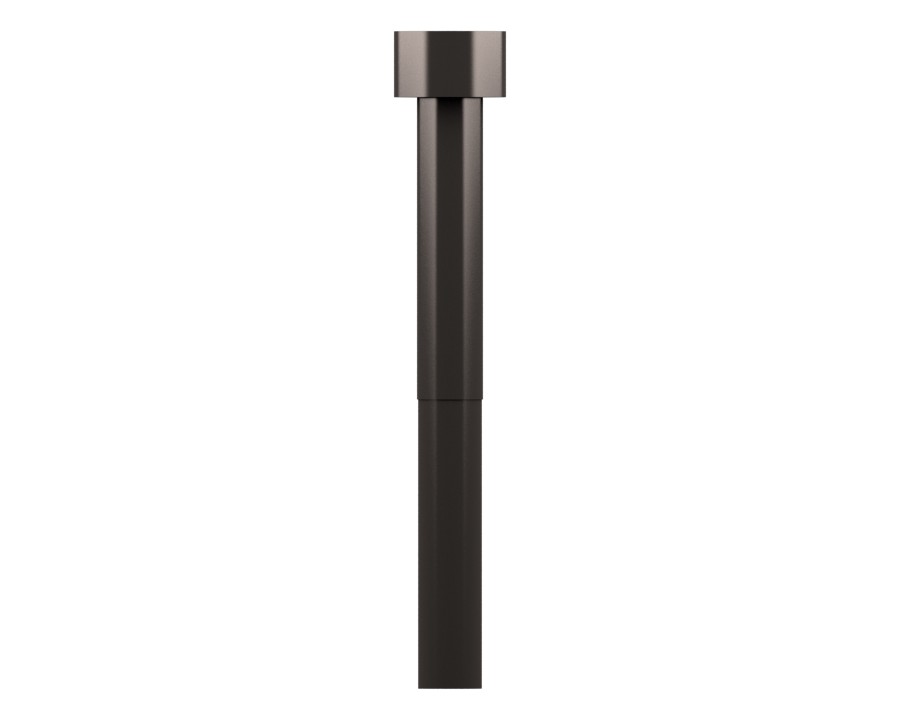

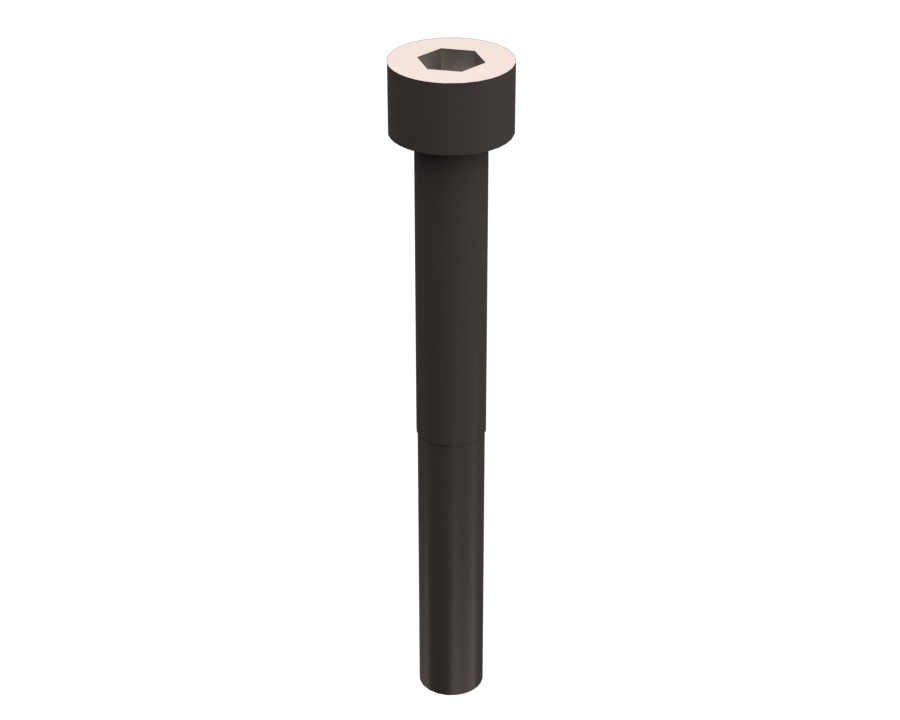

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | ISO 898-1 Class 12.9 |
|---|---|
| Coating | None |
| Bolt Length | 45 mm (1.772 in) |
| Thread Direction | RH |
| Locking Feature | None |
| Bolt Type | Socket Head |
| Thread Size (Diameter × Pitch) | M5 × 0.80 mm |
| Handle Length | 23 mm (0.906 in) |
| Thread Size | M5 mm (0 in) |
Compatible Equipment
- Generator Sets: C9, C4.4, C7.1
- Cold Planers: TH360B
- Compactors: CB16, CS-533C, CB13, CB15
- Engines: C11, C15, C6.6, C13, C18
- Dozers: D6K2
- Excavators: 6060, 6040, 303
- Asphalt Pavers: AP655F L, AP655F, AP-600D
