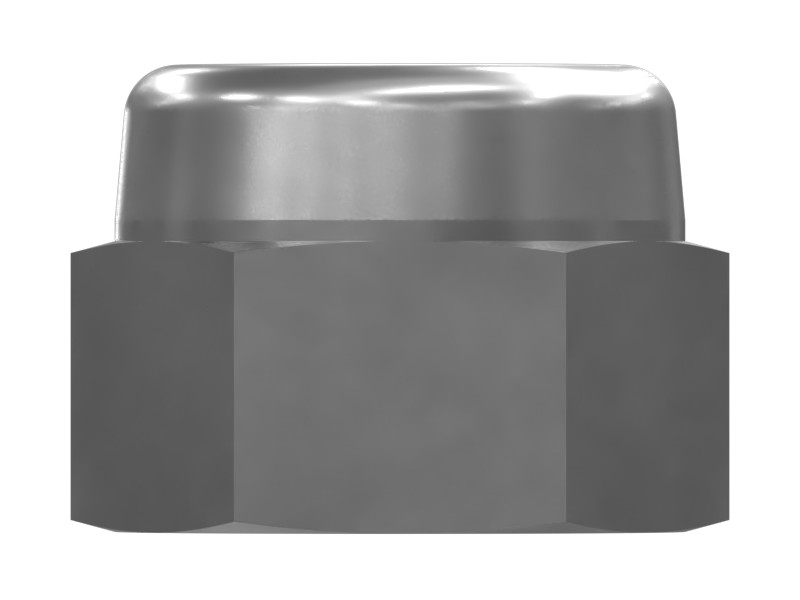

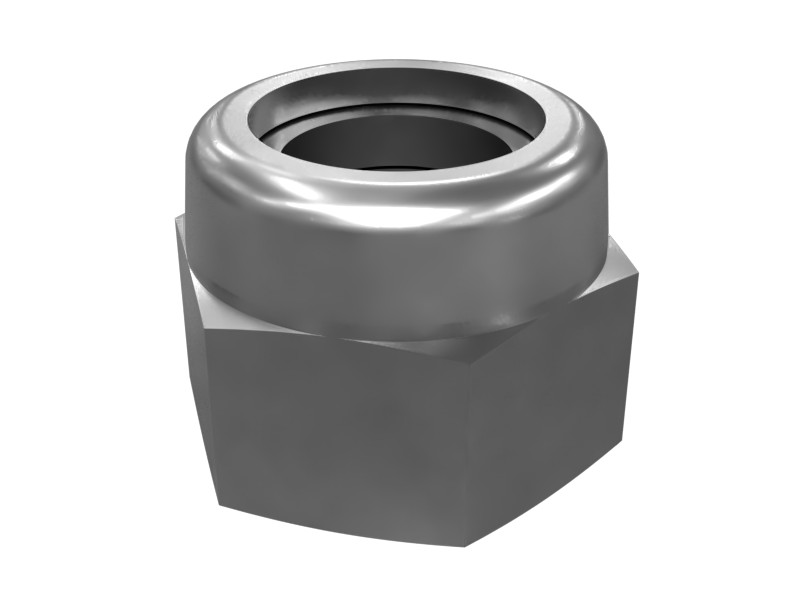

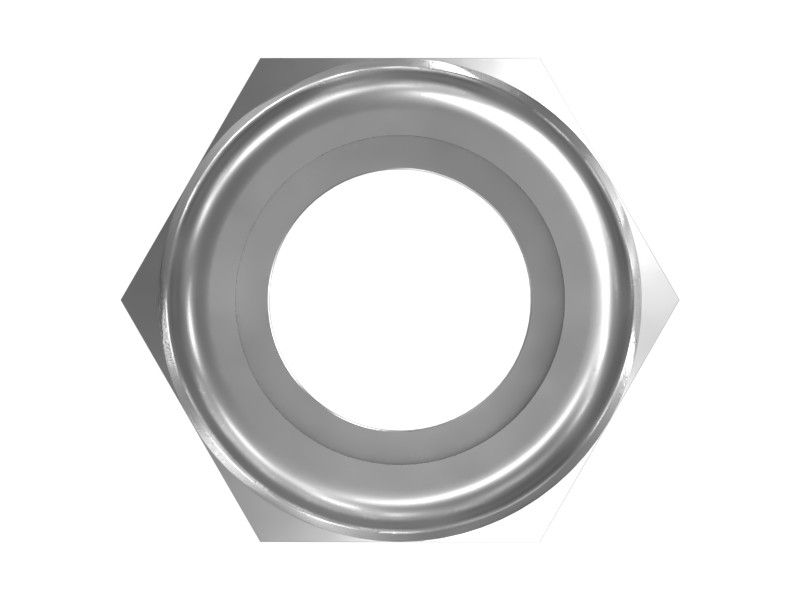

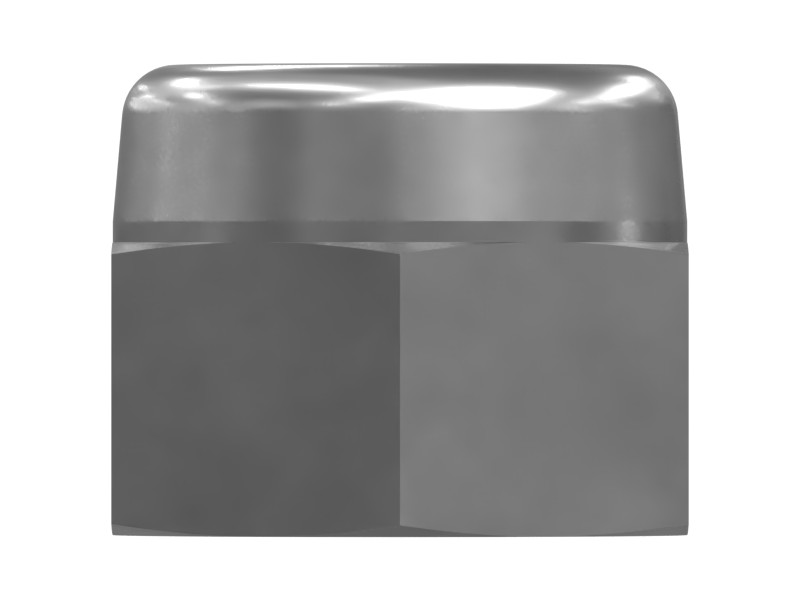

8T-2658 M3X0.5 Lock Nut
Cat® M3X0.5 internally threaded lock nut for wiring harnesses ensures a reliable, secure electrical connection
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Drive Chain | 5.5 mm (0.217 in) |
|---|---|
| Material | Carbon Steel |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M3x0.5 mm |
| Class or Grade | ISO 898-2 Class 10 |
| Material Description | Steel |
| Hex Size | 5.5 mm (0.22 in) |
| Thread Size | M3 mm (0 in) |
| Height | 4.5 mm (0.17 in) |
| Pitch | 0.5 mm |
| Coating | Zinc Plated |
| Thickness | 4.5 mm (0.177 in) |
| Nut Model | Hex Head Self-Locking Nut |
Compatible Equipment
- Generator Sets: 3512E, 3516C, C7.1, 3406C, 3512B
- Track Loaders: 993, 990K
- Cold Planers: SE50 VT, PL61, PL87, PL83, TH417D
- Compactors: CB-534D, CB-434D, CB-564D, CS-56, CS-583D, CS-563E, CS-54, CS-533E
- Engines: C6.6, C32, C175-16, C18, C12
- Excavators: 303.5E2 CR, 306E2, 308E, 307E, 305E2 CR, 3512C, 301.6, 301.8, 302.7CR, 303CR, 303.5CR, 320D3, 3516E, 428F, 416E, 6020B, 3516B, 3508B
- Skid Steer Loaders: 232D3, 226D3, 239D3, 272D3, 249D3, 236D3, 236, 246D, 216B3, 226B, 24, 262C, 279C, 262D, 226B3, 236D, 236B3, 246C
- Motor Graders: 120, 14, 3606
- Wheel Excavators: M315, M320
- Dozers: D7, D1, D10, D6M, D4, D11R, D11, D10T, D3K2 LGP, D7R II, D6R, D6R II, D5K2 XL, D5N, D7R, D6K2, D5M, D6N, D10R, D11T, D10T2, D6T
- Compact Track Loaders: 299D3
- Mini Excavators: 305.5 GC, 302CR, 301.7CR, 301.5, 301.7D CR, 307E2, 308E2, 305.5E2, 307
- Wheel Loaders: 924K, 938M, 938K, 926M, R1700G
- Off-Highway Trucks: 7495
Additional information
| Machine Model | 120, 14, 216B3, 226B, 226B3, 226D3, 232D3, 236, 236B3, 236D, 236D3, 239D3, 24, 246C, 246D, 249D3, 262C, 262D, 272D3, 279C, 299D3, 301.5, 301.6, 301.7CR, 301.7D CR, 301.8, 302.7CR, 302CR, 303.5CR, 303.5E2 CR, 303CR, 305.5 GC, 305.5E2, 305E2 CR, 306E2, 307, 307E, 307E2, 308E, 308E2, 320D3, 3406C, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 416E, 428F, 6020B, 7495, 924K, 926M, 938K, 938M, 990K, 993, C12, C175-16, C18, C32, C6.6, C7.1, CB-434D, CB-534D, CB-564D, CS-533E, CS-54, CS-56, CS-563E, CS-583D, D1, D10, D10R, D10T, D10T2, D11, D11R, D11T, D3K2 LGP, D4, D5K2 XL, D5M, D5N, D6K2, D6M, D6N, D6R, D6R II, D6T, D7, D7R, D7R II, M315, M320, PL61, PL83, PL87, R1700G, SE50 VT, TH417D |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
