Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, installation torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Fluid bearing group• Designed to
meet or exceed the performance of industry-standard parts and provide leak-free connections

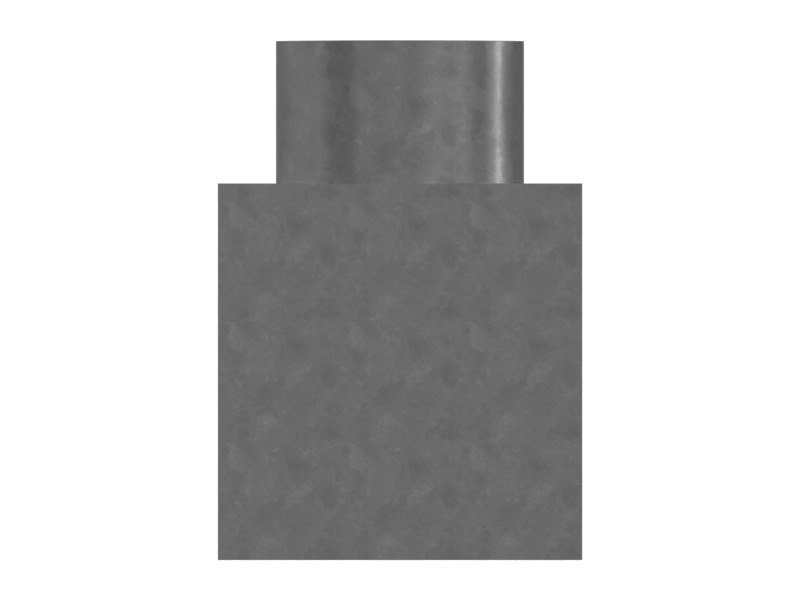

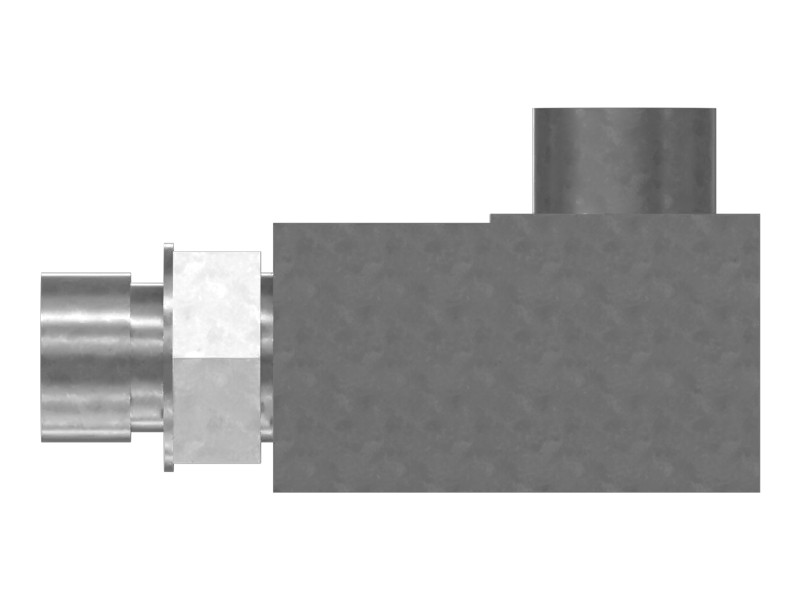

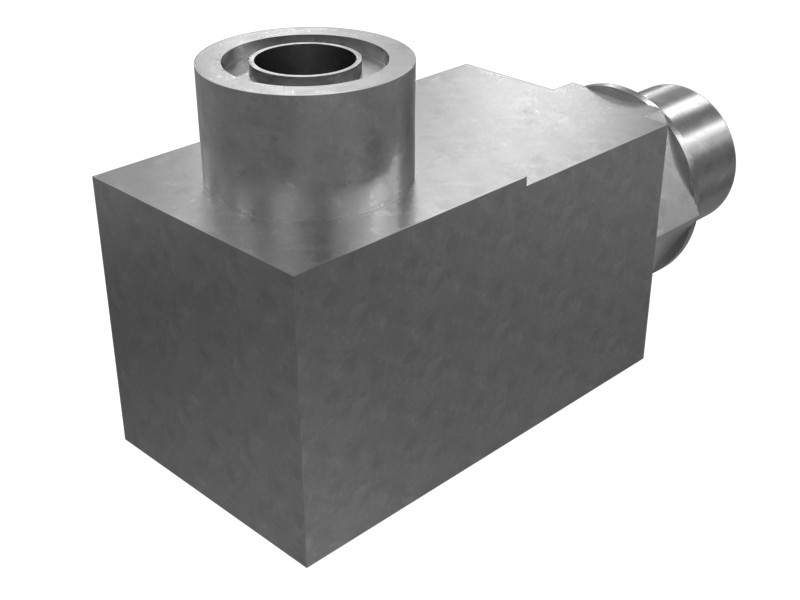

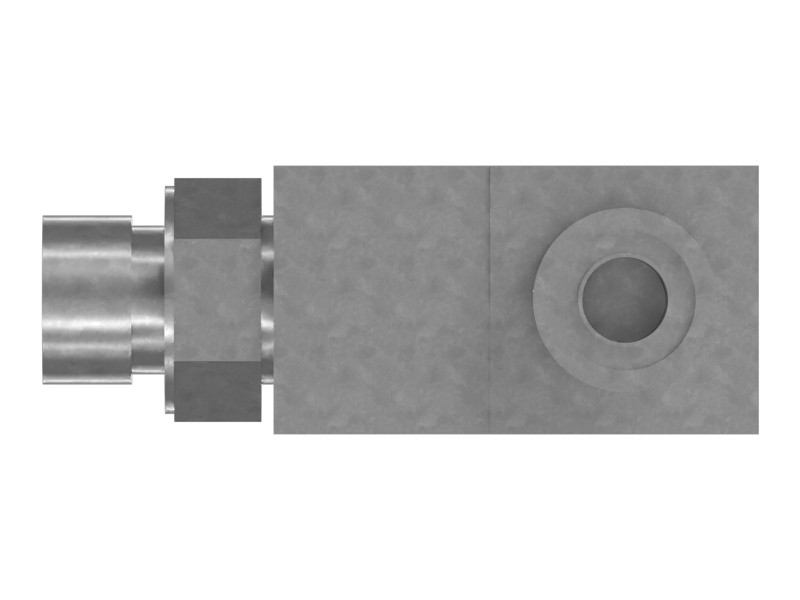

- Images provided are for reference only. Adapter construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Adapters are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Material | Carbon Steel |
| Material Description | Plated Steel |
| Coolant and DEF Compatible Seals | 180-8424 (13/16-16), 6V-6609 (3/4-16) |
| Oil and Fuel Compatible Seals | 228-7090 (13/16-16), 238-5080 (3/4-16) |
| Transmission and Hydraulic Oil Compatible Seals | 3K-0360 (3/4-16), 6V-8398 (13/16-16) |
Compatible Equipment
- Generator Sets: C9, 3512B, 3516C, C7.1
- Track Loaders: 972, 990K, 973K, 994K, 995
- Cold Planers: TH360B, PL87, PL61, PL83
- Compactors: CS-533C, 834K, CB-44B, CB10
- Engines: C7, C32
- Excavators: 330, 336D2, 308E, 336D, 305C CR, 307E, 320D, 374, 349F L, 330D L, 313 GC, 305E2 CR, 313, 340, 6020B, 333 GC, 326 GC, 326, 336, 320 GC, 333, 320D3, 340D2 L, 352F, 349E L VG, 3516B, 621H, 349E, 336D L, 336E L, 336F, 325B, 320, 336 GC, 336E LH, 336D2 L, 336F L, 330 GC, 320B, 336E H, 330B, 323, 315D L, 311C, 329E, 336D2 XE, 323D L, 329E L, 330D, 345B, 349E L, 432, 637G, 325B L, 320 GX, 323 GX, 302.7CR, 303.5CR, 303CR, 336E LN, 330GC, 320E, 336E, 336F LN, 323GC, 313F LGC, 312E L, 637E, 325, 320D FM, 336F L XE, 318D L, 313F L, 312F, 312E, 314D LCR, 326GC, 657G, 323 GC, 374F L, 637K, 352, 3508B, 335F LCR, 336D2 GC, 340D L, 621K, 345C, 335, 320D L, 6040
- Asphalt Pavers: AD45
- Motor Graders: 16, 14M, 16M, 16H, 18, 14, 140 GC, 120, 120H, 316F, 16M3
- Wheel Excavators: M315, M320D2, M320, M315D, M322D, M313D, M315D2, M315GC, M317D2
- Dozers: D9, D10T, D7E, D6R III, D11T, D11R, D6T, D10R, D9R, D9T, D6T LGP, D8R, D6R, D10N, D9L, D8L, D9N
- Mini Excavators: 305.5E, 306, 307D, 303.5E, 307E2, 308E2, 305.5, 307
- Wheel Loaders: R2900 XE, M314, RM500B, 988G, 966, 924HZ, 962G, 980H, 980G, 988K, 950G, 972L, 972G, 836, 966K, 966L, 928G, 988H, 906K, 990H, 992C, 992D, 988F, RM400
- Off-Highway Trucks: 798 AC, 789D, 773E, 740, 775G, 735, 793F, 770G, 772G, 773D, 785D, 794 AC, 785, 789, 773, 771D, 796 AC, 730
