Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications

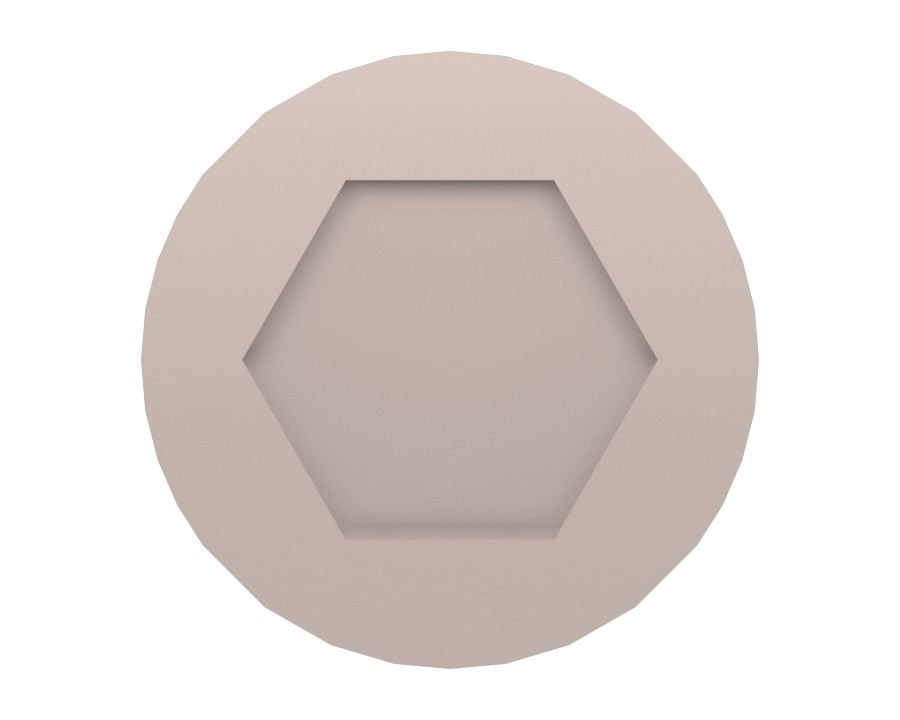

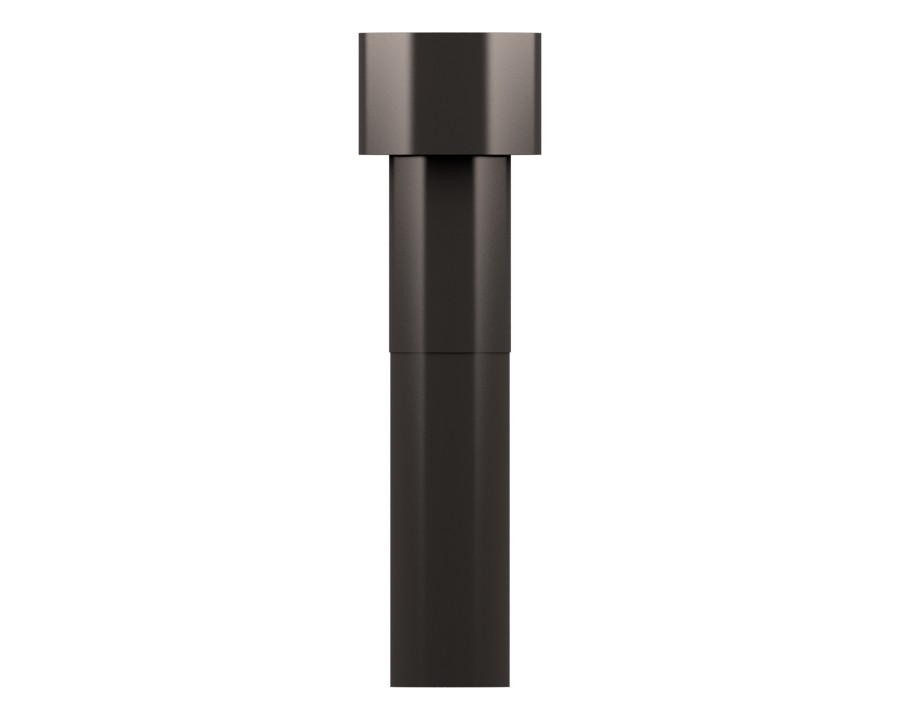

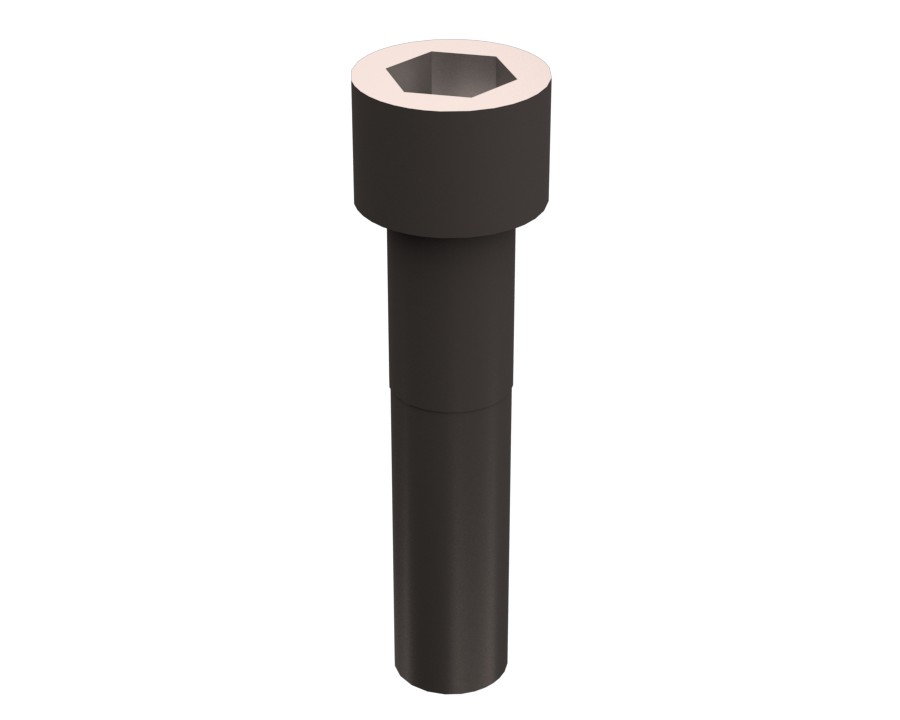

| Bolt Type | Socket Head |
|---|---|
| Thread Size | M16 mm (0 in) |
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | Zinc Phosphate + Oil |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M 16 X 2 mm |
| Bolt Length | 70 mm (2.756 in) |
| Handle Length | 26 mm (1.024 in) |
Compatible Equipment
- Motor Graders: 14
- Track Loaders: 973K
- Wheel Excavators: M315, M320, M317D2, M320D2, M315D2, M315GC
- Compactors: CB-434D
- Dozers: D7R II, D6R III, D6R, D6R II, D7H, D7R, D8N, D6R XL, D5N
- Mini Excavators: 310
- Excavators: 330D L, 352, 325, 320 GC, 320, 6015, 6060, 323 GC, 323, 320C, 323D L, 320D FM, 324D L, 320D2 L, 320D L, 340, 320E, 320D2 GC, 323D2 L, 323D2, 320D RR, 324D, 320B, 325C L, 323D, 315, 320D GC, 323GC, 325D L, 320C L, 657G, 6015B, 352F, 390D, 390F, 416E, 320D, 320D2, 330, 374D L, 390F L, 390D L
- Wheel Loaders: M314
- Off-Highway Trucks: 794 AC, 777, 7495, 797F, 796 AC, 798 AC
Additional information
| Machine Model | 14, 310, 315, 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GC, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325C L, 325D L, 330, 330D L, 340, 352, 352F, 374D L, 390D, 390D L, 390F, 390F L, 416E, 6015, 6015B, 6060, 657G, 7495, 777, 794 AC, 796 AC, 797F, 798 AC, 973K, CB-434D, D5N, D6R, D6R II, D6R III, D6R XL, D7H, D7R, D7R II, D8N, M314, M315, M315D2, M315GC, M317D2, M320, M320D2 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
