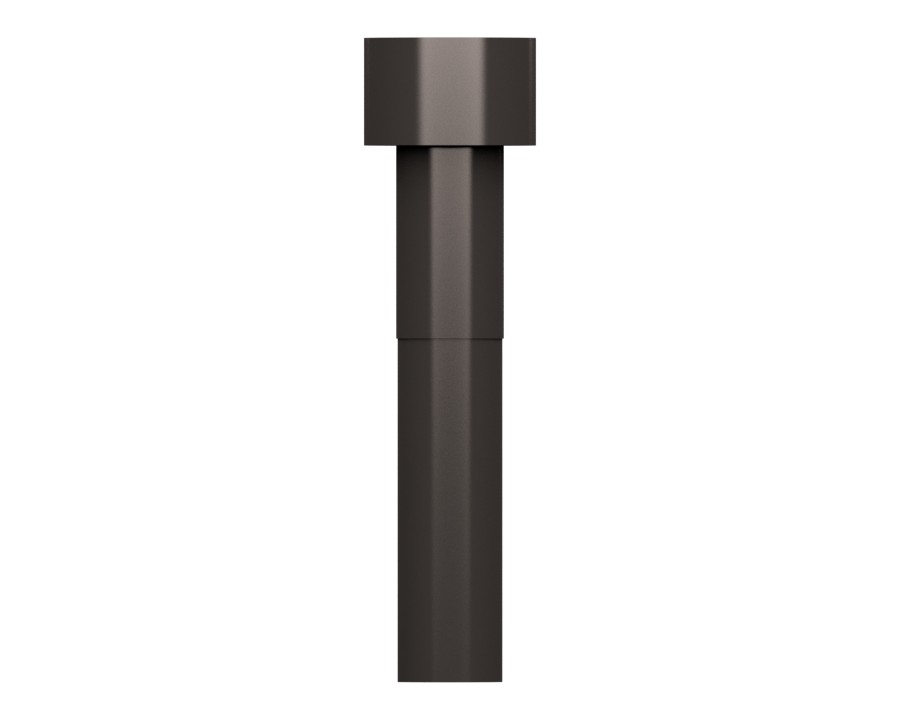

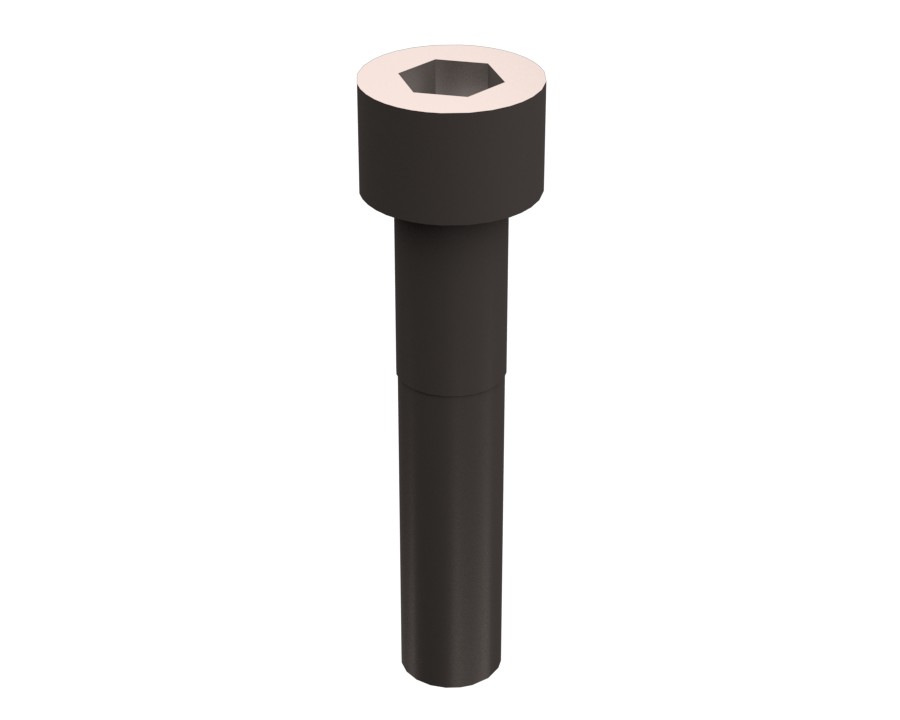

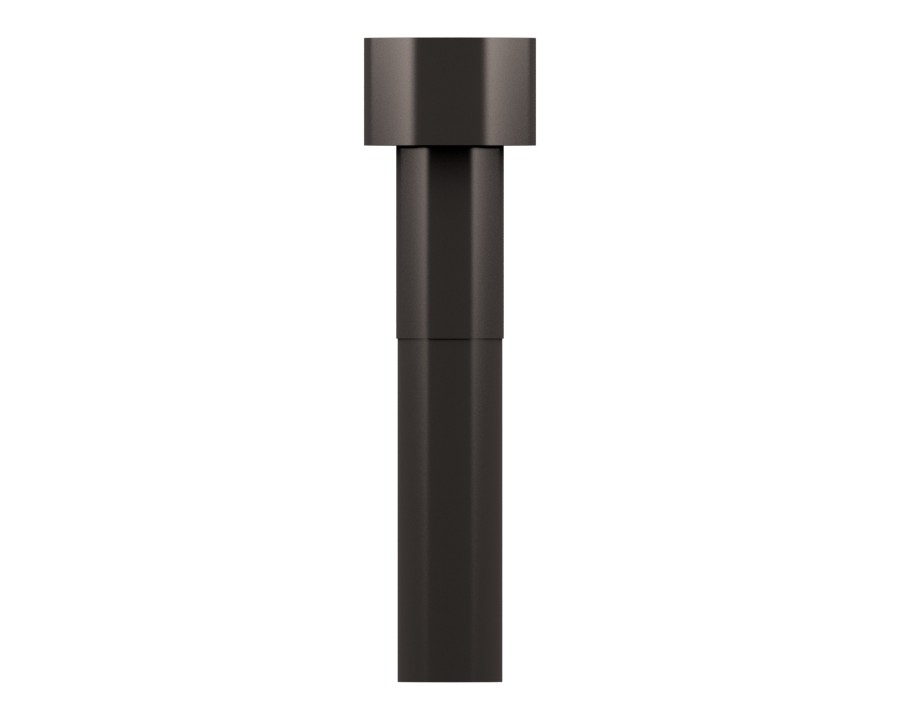

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Handle Length | 18 mm (0.709 in) |
|---|---|
| Thread Size (Diameter × Pitch) | M10 × 1.50 mm |
| Thread Size | M10 mm (0 in) |
| Material | Alloy Steel |
| Thread Direction | RH |

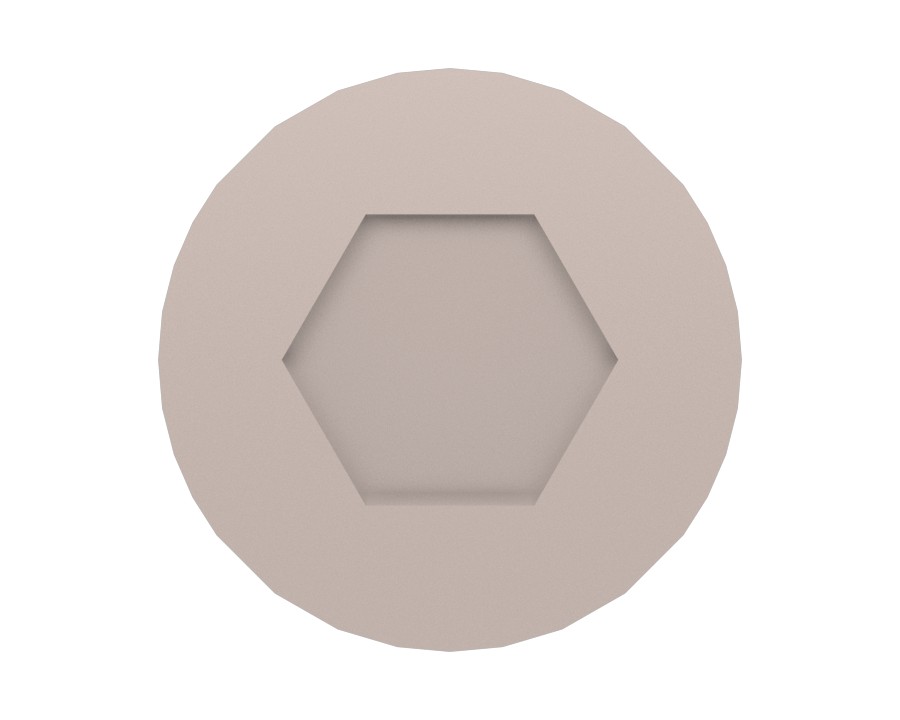

| Bolt Type | Socket Head |
| Class or Grade | ISO 898-1 Class 12.9 |
| Locking Feature | None |
| Bolt Length | 50 mm (1.969 in) |
| Coating | None |
Compatible Equipment
- Generator Sets: 3406B, C9, 3406C, 3512B, G3516, G3516C
- Track Loaders: 972, 973K
- Cold Planers: PL72, TH360B
- Compactors: CB-534D, C9.3B, CS-533C, CB-434D, CS-583D, C-9
- Engines: C13, C15, C7, C18
- Excavators: 3126, 374D L, 390D L, 349D, 303, 349D2 L, 349D2, 340, 637K, 345D L, 320C, 330C, 311D LRR, 325C, 325D, 314D CR, 336F L XE, 336, 320B, 312D2 L, 313D2, 312D, 313D2 GC, 312D2 GC, 336F, 336E H, 336E, 336F L, 312D L, 336F LN, 330C L, 314D LCR, 349D L, 345D, 350, 3516B, 345B, 345 GC, 336E LN, 312E L, 336E L, 312D2, 325B L, 385B, 365B, 365B L, 325C L, 323D L, 312F, 315D L, 320D FM, 390D, 350MHPU, 6040, 315F LCR, 330 L, 312E, 311B, 345C, 325B, 313D2-GC, 336E LH, 313F L, 330B, 313F LGC, 329D L
- Skid Steer Loaders: 3126B, 313D2 LGP
- Motor Graders: 3606, 16M, 349 GC, 14, 120H
- Wheel Excavators: M315, M320
- Dozers: D7E, D6T LGP, D8T, D7, D6T, D8R, D8
- Mini Excavators: 307, 307B, 308, 307E2
- Wheel Loaders: 962L, 938M, 924K, 980G, 950G, 950H, 938K, 962G, 972L, R1700K, 966, 950L, 980H, 966L, 966K, RM400, 926M, 928G, 988H, R2900 XE
- Off-Highway Trucks: 793F, 740B, 725C2, 797F, 740, 794 AC, 735, 725, 793D, 796 AC, 798 AC
