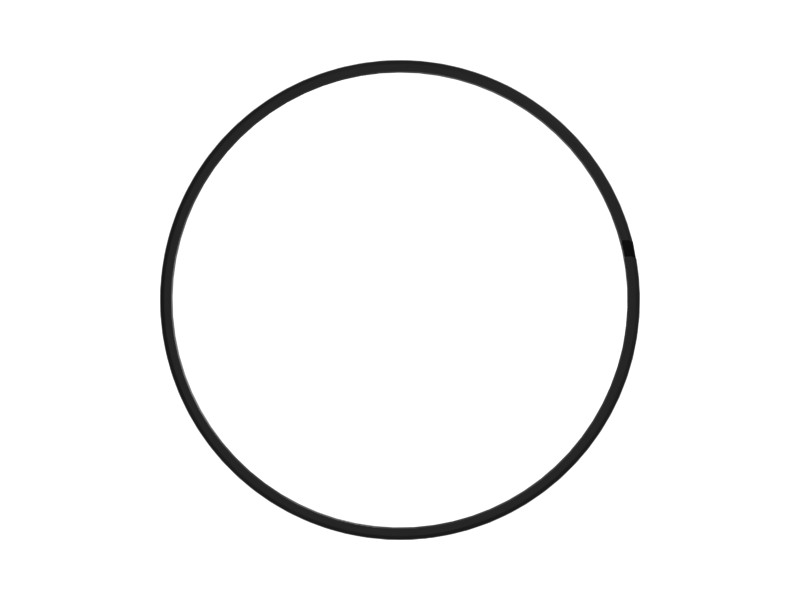

8T-0785 66.49 mm OD Plastic Ring
Cat® 24.49 mm Cross-Section Height Plastic Ring for Guiding the Piston in Hydraulic Cylinders
Description
Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.
Features
- Material: Type 6 Nylon
- 30° cut angle
- Fits rods with a diameter of 63.5 mm (2.5 in)
- Thickness: 1.5 mm (0.059 in)
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Nylon Type 6 |
|---|---|
| Groove Diameter – B (+/- 0.001 in) | 2.62 in |
| Groove Diameter – B (+/- 0.0254 mm) | 66.58 mm |
| Rod Diameter | 63.5 mm (2.5 in) |
| Groove Width – A (+/- 0.003 in) | 0.98 in |
| Groove Width – A (+/- 0.0762 mm) | 25.00 mm |
| Material | Plastic Plastic |
Compatible Equipment
- Motor Graders: 14, 16M, 16M3, 18, 16, 16H, 14M
- Track Loaders: 826K, 826G, 824G, 826H
- Wheel Excavators: M313D
- Compactors: 824K, 825K
- Dozers: D7H, D7R II, D6T LGP, D6R, D6R III, D5M, D6T, D6R II, D7G, D7R, D7G2, D5N, D7, D6R XL, D6R LGP
- Excavators: 416E, 325B L
- Wheel Loaders: 980G, 928G, 924GZ, 924HZ, 928HZ, 980H, 938M, 938K, 988H, 988G
- Skid Steer Loaders: 24
Additional information
| Machine Model | 14, 14M, 16, 16H, 16M, 16M3, 18, 24, 325B L, 416E, 824G, 824K, 825K, 826G, 826H, 826K, 924GZ, 924HZ, 928G, 928HZ, 938K, 938M, 980G, 980H, 988G, 988H, D5M, D5N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7G, D7G2, D7H, D7R, D7R II, M313D |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors |
| Part Source | Genuine OEM |
