Description

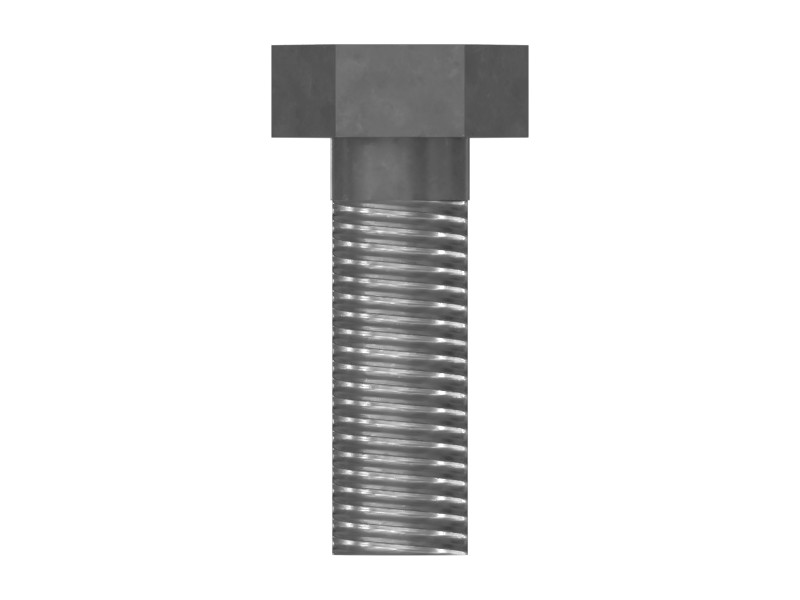

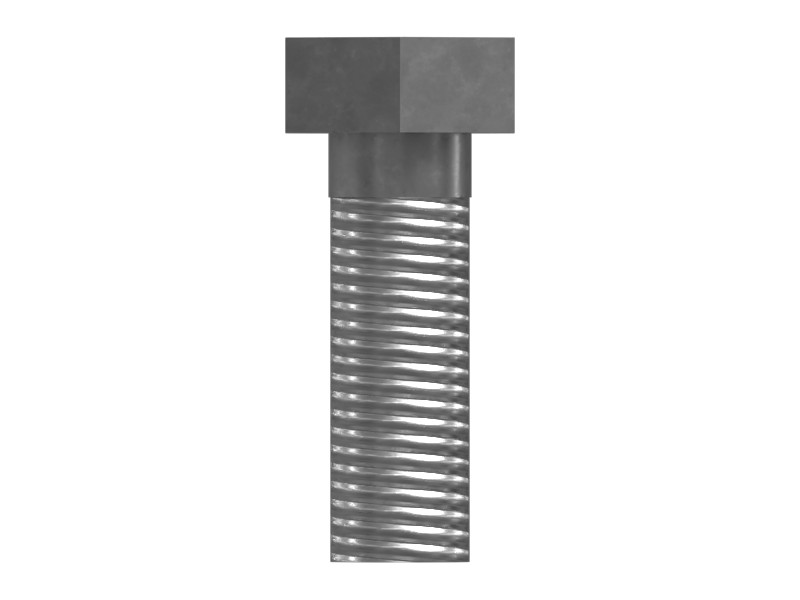

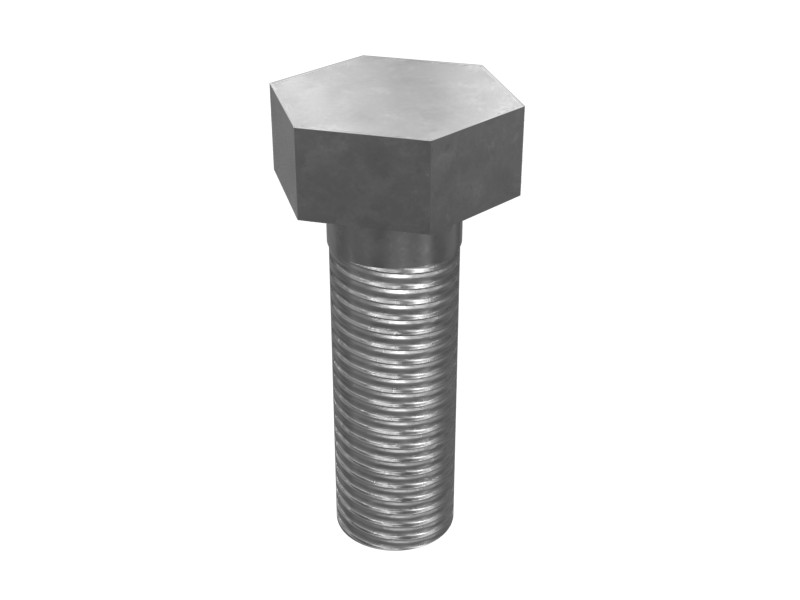

Track bolts are used to secure track shoes to the link assembly.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M10 mm (0 in) |
| Locking Feature | Nylon Patch |
| Bolt Size | M10 mm (0.3937 in) |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 30 mm (1.181 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 5 mm (0.177 in) |
| Material | STEEL |
Compatible Equipment
- Generator Sets: 3512E
- Track Loaders: 973K, 992, 993, 953, 963, 972, 995, 982, 990K, 826K, 826H, 963K, 834H, 953K, 824G, 994K, 826G
- Cold Planers: PL87, PL83, PL72, PM620, PM622
- Compactors: C9.3B, 834K, 825K, 824K
- Engines: C175-16
- Asphalt Pavers: AD30, AD45, AD63
- Skid Steer Loaders: 272D3, 249D3, 232D3, 226D3, 239D3, 272D3 XE, 299D3 XE, 262D3, 246D3, 236D3, 242D3, 289D3, 246D, 24, 262D, 236D, 232D, 259D3
- Motor Graders: 16M, 18, 14, 120, 16, 120H, 140K, 160K, 140H, 14M, 16M3, 12H, 12K
- Wheel Excavators: M320, M315, MD6310, MD6250, IT14G
- Dozers: D7R II, D6T, D8, D6R II, D7E, D6R, D6R XL, D6R LGP, D11R, D10T, D6R III, D6M, D6T LGP, D8T, D8R, D5M, D6N, D7R
- Compact Track Loaders: 299D3, 279D3
- Excavators: 3508B, 345B, 621H, 621K, 311B, 320B, 325B L, 330B, 325B
- Wheel Loaders: 950, 966, 924K, 938K, 834, R1300G, 950H, 980, M314, R1600H, 910, 938M, 836, 966H, 988K, 990H, 926M, 980H, 972H, R2900 XE, 980G, 988G, 986H, 988H, R2900G, R3000H, 980L, 966K
- Off-Highway Trucks: 793F, 793, 770G, 773, 793D, 789, 797F, 789D, 777E, 772G, 775G, 777D
