Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M6 mm (0 in) |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Bolt Length | 12 mm (0.472 in) |

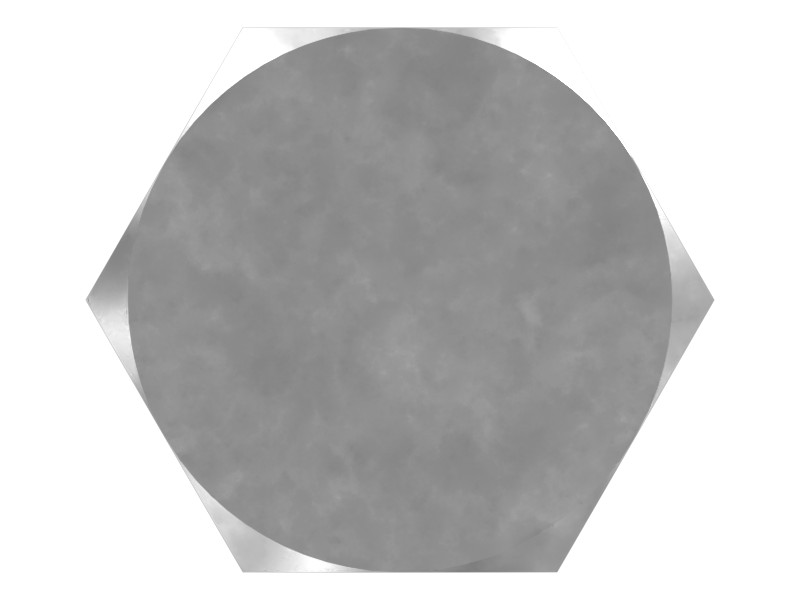

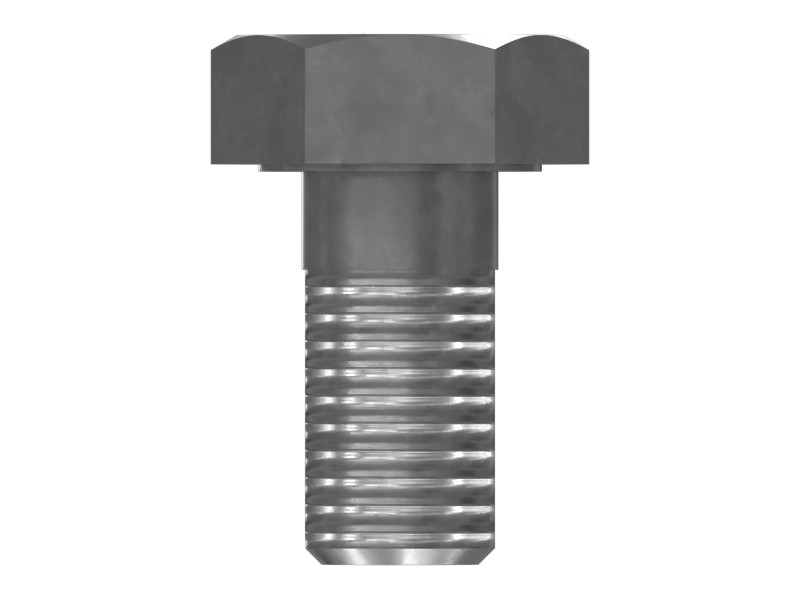

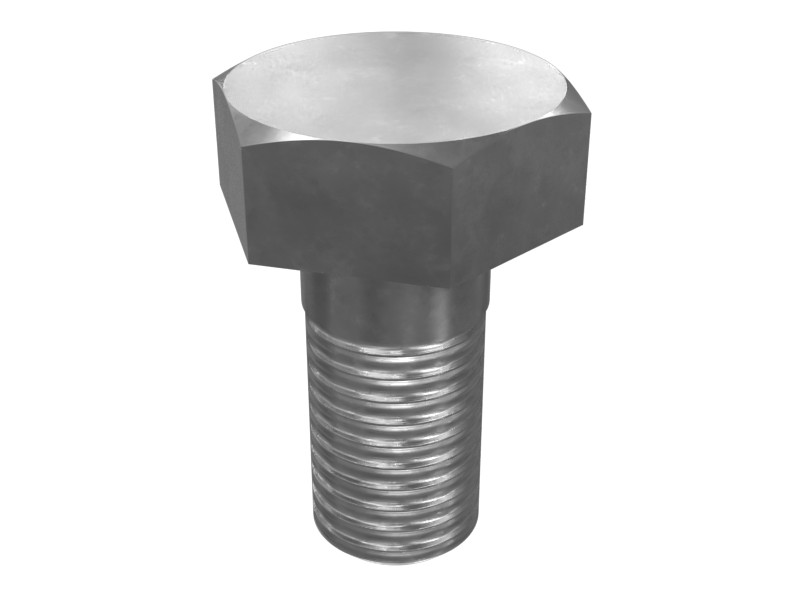

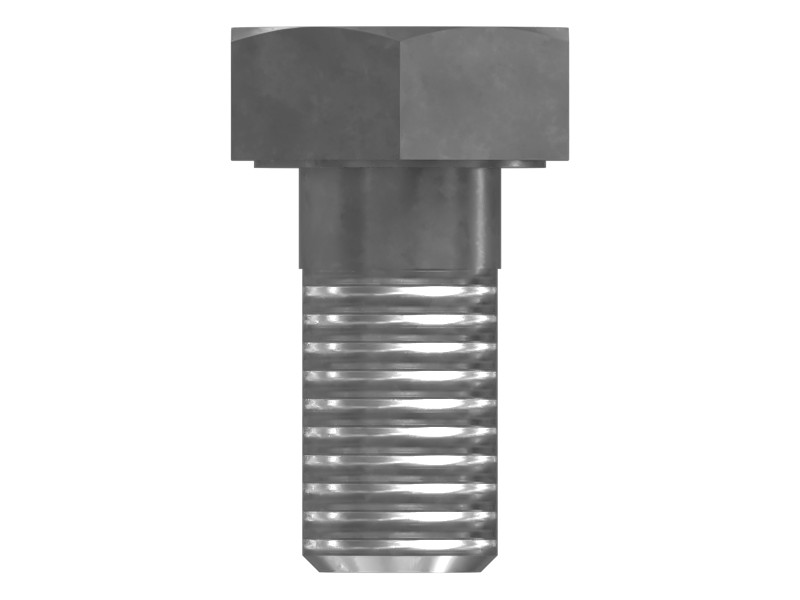

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 3 mm (0.118 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: 3512E, G3516C, 3516C, 3512B, 3406C, C9
- Track Loaders: 982, 963, 972
- Cold Planers: PL61
- Compactors: C13B, C-9
- Engines: C15, C13, C11, C32, C7, C175-16, C12, C18
- Excavators: 3456, 349F L, M325D L MH, 352, 312C, 315C, 320C, 3516E, 349, 355, 3516B, 3508B, 434F2, 3512C, 416F2, 352F, 621K, 621G, 320D FM, 312C L
- Asphalt Pavers: AP300F, AP355F
- Skid Steer Loaders: 24
- Motor Graders: 14, 16, 18, 140H, 120H, 12H, 160K, 12K, 16M3, 140K
- Wheel Excavators: M315, M320, MD6200
- Dozers: D6R III, D6N, D6R II, D5N, D7H, D9R, D7R II, D7, D10R, D11R, D7R, D6R, D6T
- Mini Excavators: 308, 310, 307D
- Wheel Loaders: R1700K, 938K, 924K, R1300G, 966K, 966, 980, 926M, 938M, 980L, R1700 XE, 950, R2900 XE
- Off-Highway Trucks: 798 AC, 794 AC, 796 AC, 793D, 775G, 777D, 797F, 793F, 789D, 740, 785, 777, 740B, 735, 730, 793, 789, 773, 725
Additional information
| Machine Model | 120H, 12H, 12K, 14, 140H, 140K, 16, 160K, 16M3, 18, 24, 307D, 308, 310, 312C, 312C L, 315C, 320C, 320D FM, 3406C, 3456, 349, 349F L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 352, 352F, 355, 416F2, 434F2, 621G, 621K, 725, 730, 735, 740, 740B, 773, 775G, 777, 777D, 785, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 924K, 926M, 938K, 938M, 950, 963, 966, 966K, 972, 980, 980L, 982, AP300F, AP355F, C-9, C11, C12, C13, C13B, C15, C175-16, C18, C32, C7, C9, D10R, D11R, D5N, D6N, D6R, D6R II, D6R III, D6T, D7, D7H, D7R, D7R II, D9R, G3516C, M315, M320, M325D L MH, MD6200, PL61, R1300G, R1700 XE, R1700K, R2900 XE |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
