Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Class or Grade | ISO 898-1 Class 8.8 |

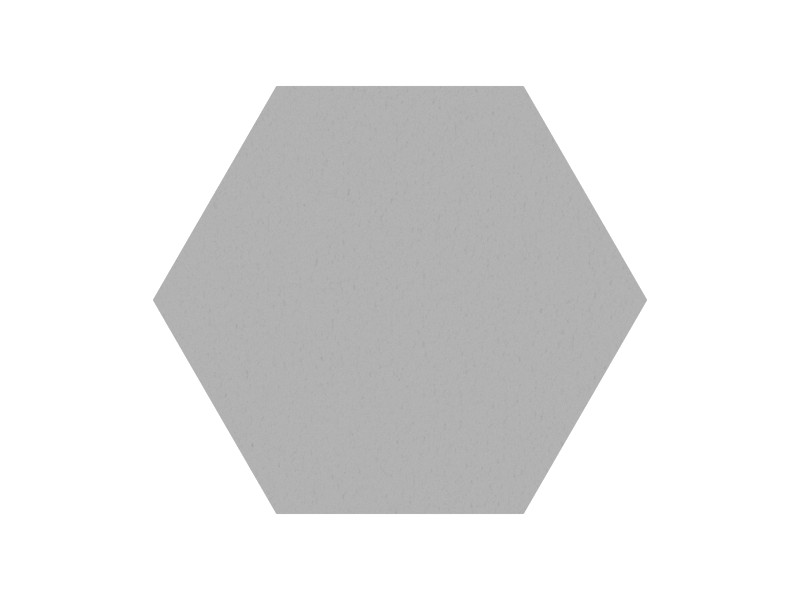

| Hex Size | 8 mm (0.31 in) |
| Thread Size | M5 mm (0 in) |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Bolt Length | 50 mm (1.97 in) |

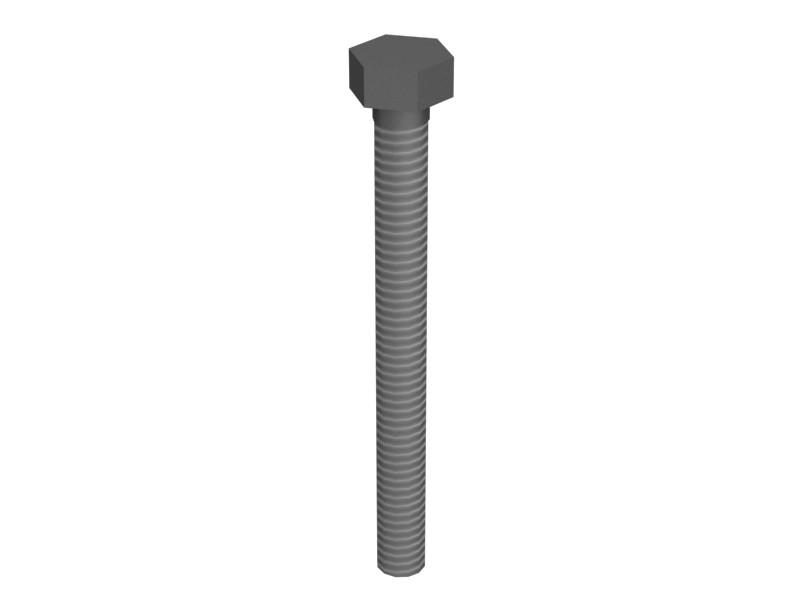

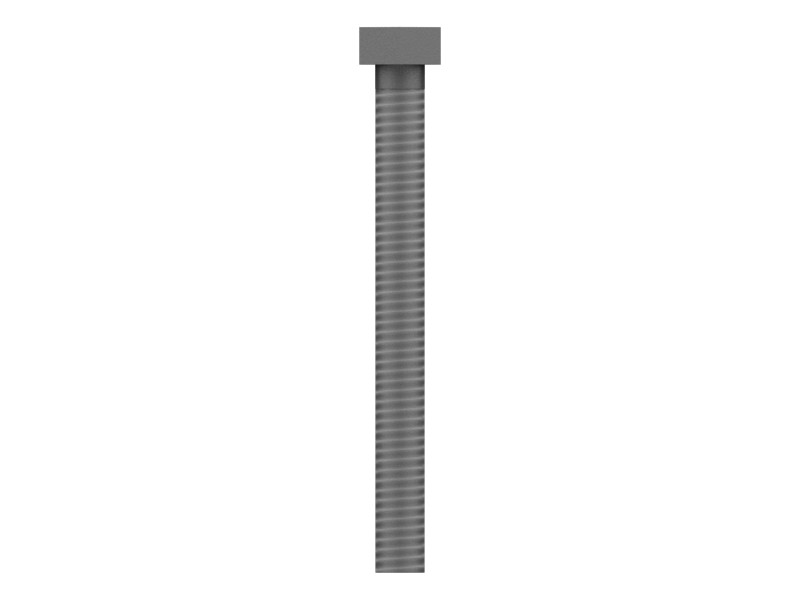

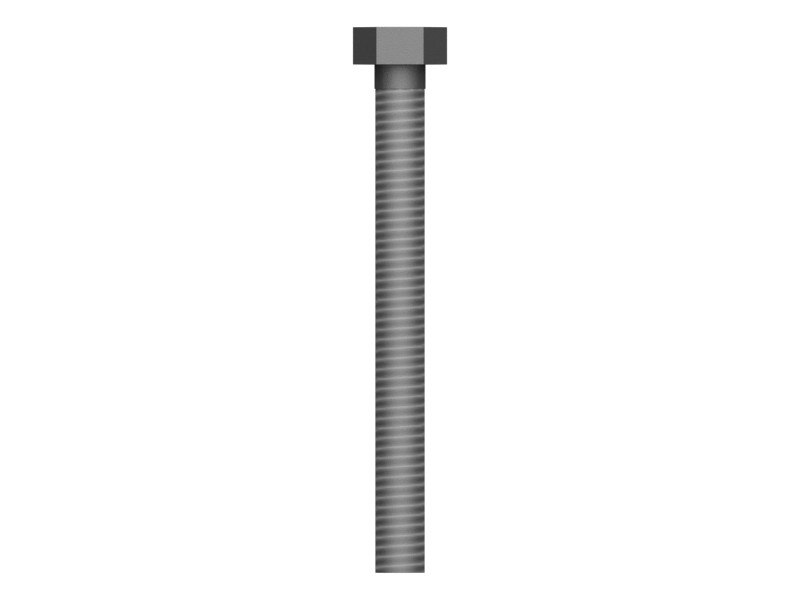

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 2 mm (0.094 in) |
Compatible Equipment
- Cold Planers: PL87, PL83
- Dozers: D6R III, D6T, D7R II, D6R, D8T, D7R, D6R XL
- Excavators: 3508B
- Off-Highway Trucks: 772G, 770G, 775G
- Asphalt Pavers: AP300F, AP355F
Additional information
| Machine Model | 3508B, 770G, 772G, 775G, AP300F, AP355F, D6R, D6R III, D6R XL, D6T, D7R, D7R II, D8T, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
