Description

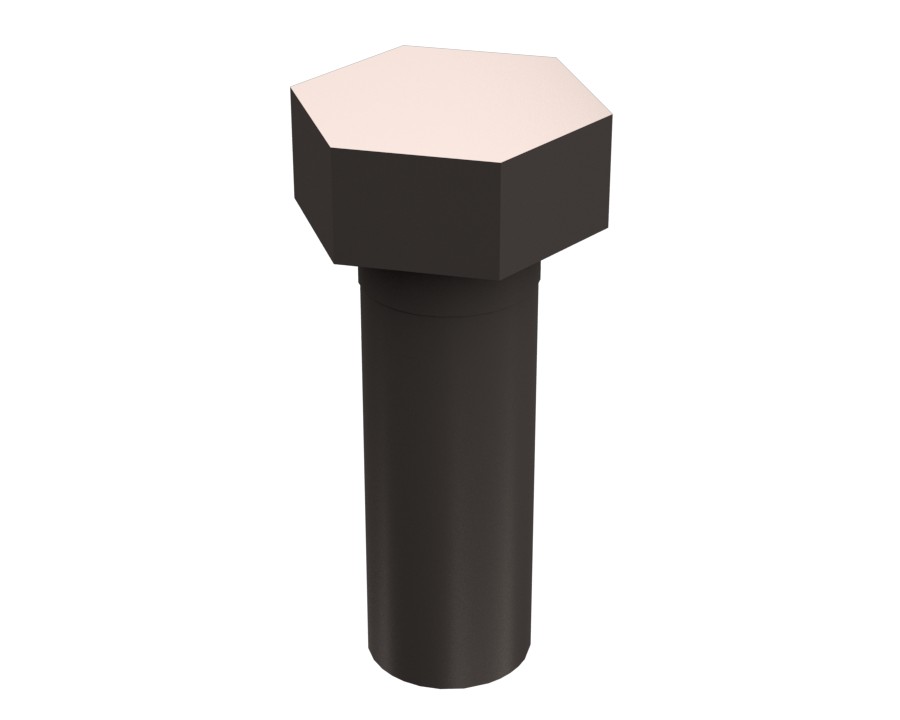

Track bolts are used to secure track shoes to the link assembly.
Specifications
| Thread Direction | RH |
|---|---|
| Overall Length | 45 mm |
| Head Height | 10.32 mm |
| Material Description | ISO 898-1 Class 10.9 |
| Drive Chain | 24 mm |
| Hole Thread Pitch | 2.00 |
| Thread Size | M16 mm (0 in) |
| Grade | 10.9 |
| Handle Length – 2 | 5 mm |
| Head Width – 5 | 24 mm |
| Head Height – 4 | 10 mm |
| Bolt Overall Length – 3 | 45 mm |
| Surface Finish | Phosphate and Oil Coating |
| Thread Size (Diameter × Pitch) | M16 × 2.00 mm |
| Bolt Size | M16 mm (0.6299 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Material | Carbon Steel |
| Locking Feature | None |
| Bolt Length | 45 mm (1.772 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Phosphate and Oil |
| Handle Length | 6 mm (0.236 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | M16-2 in |
Compatible Equipment
- Generator Sets: 3406B, C9
- Track Loaders: 953D, 834H, 963D, 963K, 963, 972, 995, 994K, 992
- Cold Planers: TH55-E70, PL72
- Compactors: 834K, C-9
- Engines: C32, C15, C7, C175-16
- Excavators: 3126, 349F L, 320D FM, 330C, 345 GC, 621K, 6015, 6030, 6060, 345C, 6015B, 352F, 349E L VG, 345C L, 349E L, 621H, 120 GC, 6040, 6020B
- Asphalt Pavers: AP655F, AP655F L
- Skid Steer Loaders: 3126B
- Motor Graders: 140 GC, 16M3, 3606
- Dozers: D6T, D6T LGP, D6M, D7E, D6R III, D6R II, D6R, D6R LGP, D6N, D6R XL, D8
- Wheel Loaders: 966, 950, 834, 836, 950H, 988K, 950G, 924HZ, 926M, 962L, 972L, 928G, 962G, 928HZ, 924K, 938M, 966L, 938K, 950L, 988G, 986H, 988H, R1700 II, R1700 XE
- Off-Highway Trucks: 796 AC, 794 AC, 793D, 797F, 793, 793F, 798 AC
Additional information
| Machine Model | 120 GC, 140 GC, 16M3, 3126, 3126B, 320D FM, 330C, 3406B, 345 GC, 345C, 345C L, 349E L, 349E L VG, 349F L, 352F, 3606, 6015, 6015B, 6020B, 6030, 6040, 6060, 621H, 621K, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 834, 834H, 834K, 836, 924HZ, 924K, 926M, 928G, 928HZ, 938K, 938M, 950, 950G, 950H, 950L, 953D, 962G, 962L, 963, 963D, 963K, 966, 966L, 972, 972L, 986H, 988G, 988H, 988K, 992, 994K, 995, AP655F, AP655F L, C-9, C15, C175-16, C32, C7, C9, D6M, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7E, D8, PL72, R1700 II, R1700 XE, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
