Description

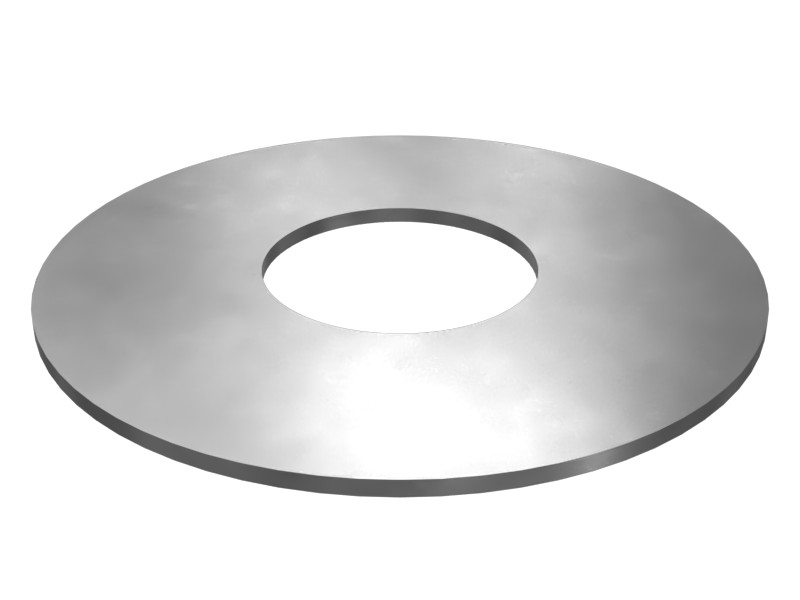

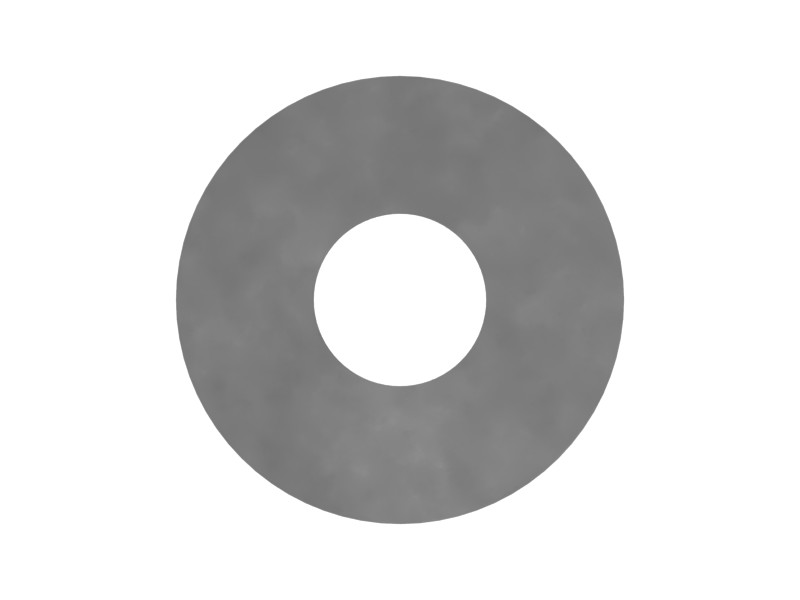

A shim is a thin, flat, ring-shaped piece of metal or plastic with a hole in the center, used to distribute the load of a fastener such as a bolt or screw. Shims can also be used to adjust the distance between two objects or surfaces and to adjust the clearance between two mating surfaces or compensate for dimensional variations.
Features
- Provides a larger surface area to distribute the load and prevent surface damage.
- Prevents fasteners from loosening.
- Manufactured to exact specifications, built for rugged durability and reliable performance.
Applications
Shims fill the gaps between mating parts and are used in cabs, rollover protective structures, and cab doors (enclosed rollover protective structures in cabs).
Specifications
| Material Description | Shim Steel |
|---|---|
| Inside Diameter | 13.5 mm (0.53 in) |
| Material | Shim Steel |
| Coating | Zinc |
| Outside Diameter | 35 mm (1.38 in) |

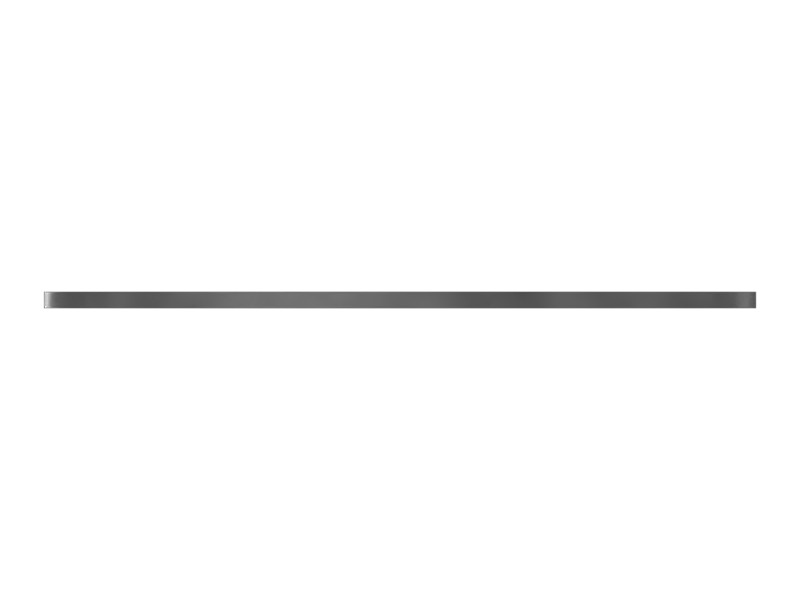

| Thickness | 0.8 mm (0.03 in) |
| Weight | 0.004 kg (0.01 lb) |
Compatible Equipment
- Track Loaders: 816F, 824G
- Dozers: D6R II, D9N, D5H, D6T, D6R, D5M, D6R III, D7R, D7R II, D7H, D8R, D6R XL, D4G, D6G2 LGP, D8N, D7G2, D3G, D9R, D9T, D6M, D6T LGP, D3K2 LGP, D6G, D8L, D5K LGP, D5K2 XL, D5K XL, D5G, D9L, D6G2 XL, D1, D10N, D11R, D11N, D10R, D10
- Excavators: 385B, 345B, 350 L, 365B, 325B L, 365B L
- Wheel Loaders: 980G, 962G, 950G, 966H, 972G, 966F, 972H, R1700 II, 950H, 980H, 836, 992C, 992D, 988F
- Off-Highway Trucks: 796 AC, 798 AC, 777D, 740, 745C, 740B, 725C2, 785D, 777E, 773D, 773E, 773, 793, 789, 771D, 785, 789D, 730, 735, 793D, 794 AC, 777, 725
- Asphalt Pavers: AD63, AD45
- Skid Steer Loaders: 216B3, 246C, 226B3, 236, 236B3, 262C, 226B
Additional information
| Machine Model | 216B3, 226B, 226B3, 236, 236B3, 246C, 262C, 325B L, 345B, 350 L, 365B, 365B L, 385B, 725, 725C2, 730, 735, 740, 740B, 745C, 771D, 773, 773D, 773E, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 794 AC, 796 AC, 798 AC, 816F, 824G, 836, 950G, 950H, 962G, 966F, 966H, 972G, 972H, 980G, 980H, 988F, 992C, 992D, AD45, AD63, D1, D10, D10N, D10R, D11N, D11R, D3G, D3K2 LGP, D4G, D5G, D5H, D5K LGP, D5K XL, D5K2 XL, D5M, D6G, D6G2 LGP, D6G2 XL, D6M, D6R, D6R II, D6R III, D6R XL, D6T, D6T LGP, D7G2, D7H, D7R, D7R II, D8L, D8N, D8R, D9L, D9N, D9R, D9T, R1700 II |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
