Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Bolt Size | M16 mm (0.6299 in) |
| Locking Feature | None |
| Thread Size | M16 mm (0 in) |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Bolt Length | 120 mm (4.724 in) |

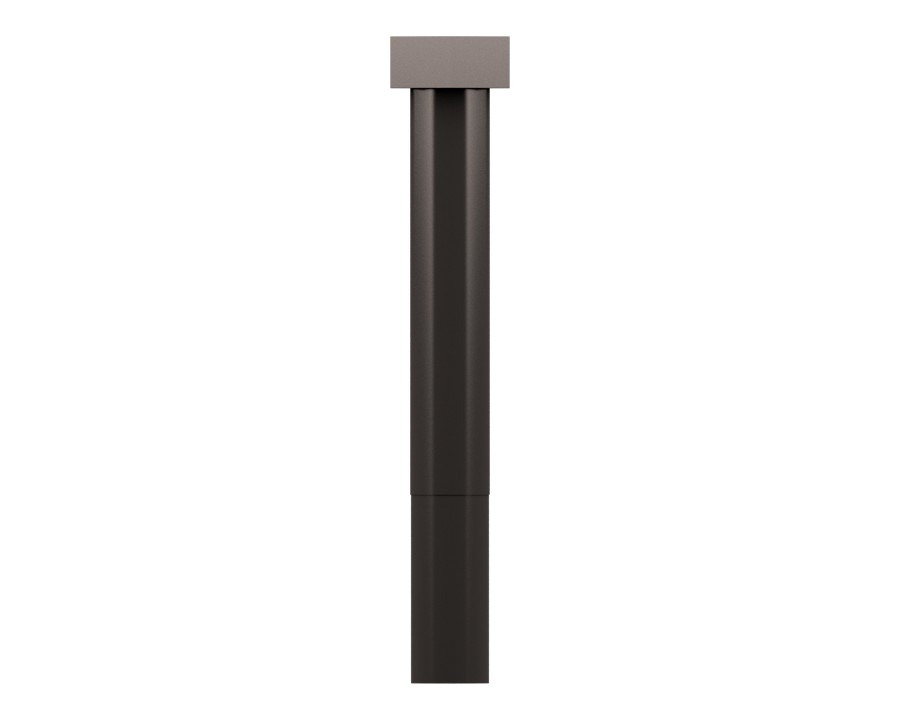

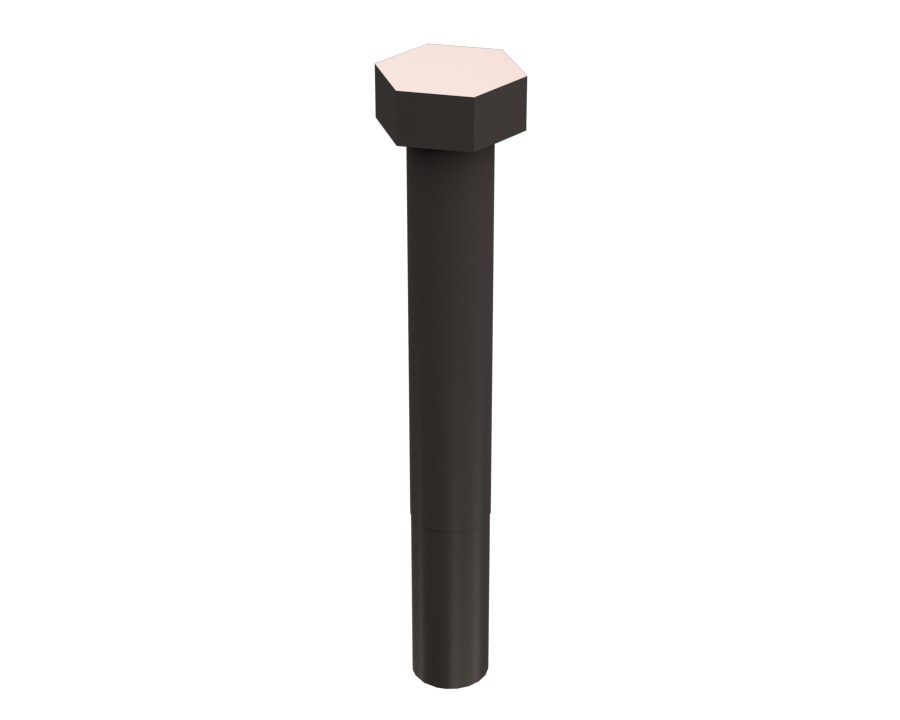

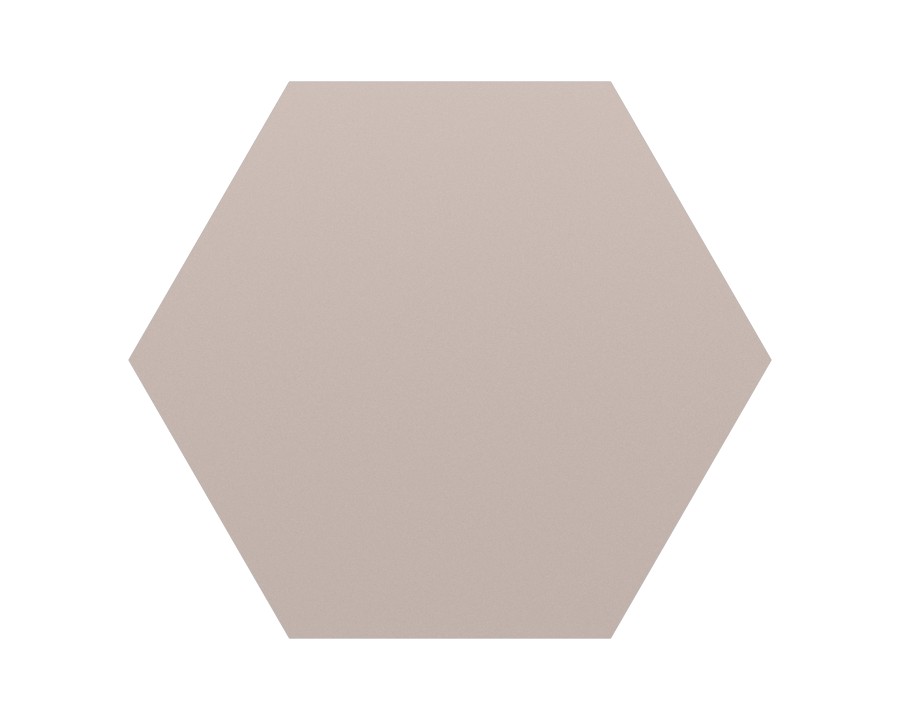

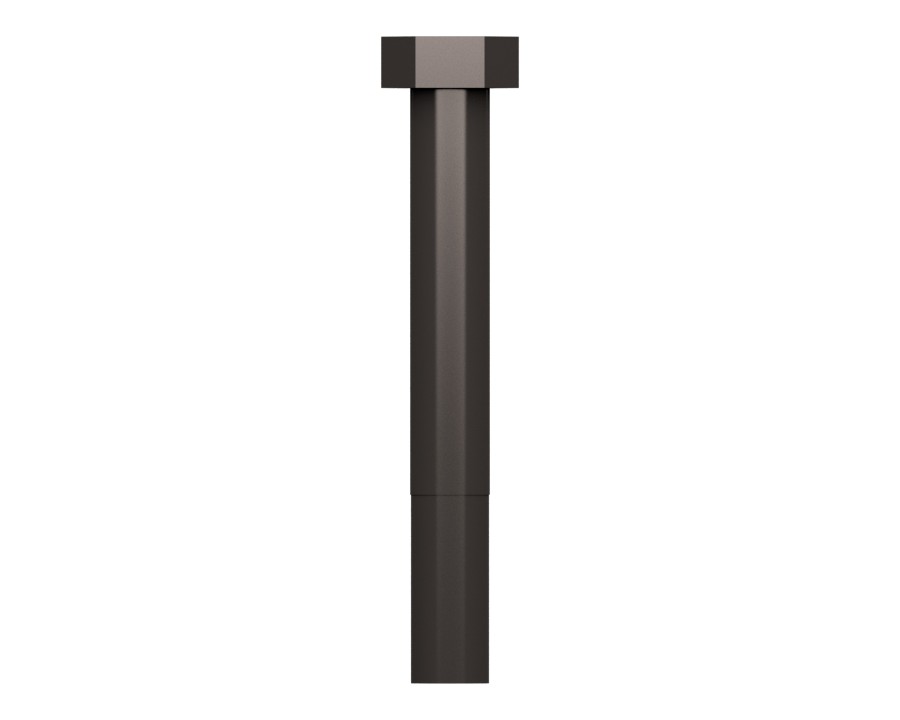

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 82 mm (3.228 in) |
Compatible Equipment
- Motor Graders: 14M
- Track Loaders: 982, 826K
- Wheel Excavators: M315
- Compactors: 834K, 824K, 825K
- Dozers: D6N, D1, D6M, D5M, D3K2 LGP, D5K2 XL, D5N
- Excavators: 352
- Wheel Loaders: 980M, 986K, 982M
- Off-Highway Trucks: 745, 740, 797F, 735, 793F, 793D, 793, 798 AC, 794 AC, 740 GC, 745C, 740B, 796 AC
Additional information
| Machine Model | 14M, 352, 735, 740, 740 GC, 740B, 745, 745C, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 824K, 825K, 826K, 834K, 980M, 982, 982M, 986K, D1, D3K2 LGP, D5K2 XL, D5M, D5N, D6M, D6N, M315 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
