Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Thread Size | 0.3125 mm (0.012 in) |
|---|---|
| Thread Direction | RH |
| Drive Chain | 12.7 mm (1/2 in) |
| Class or Grade | Austenitic Stainless |
| Thread Size (Diameter × Pitch) | 5/16×24 mm |
| Thickness | 6.75 mm (0.266 in) |
| Height | 0.27 in |

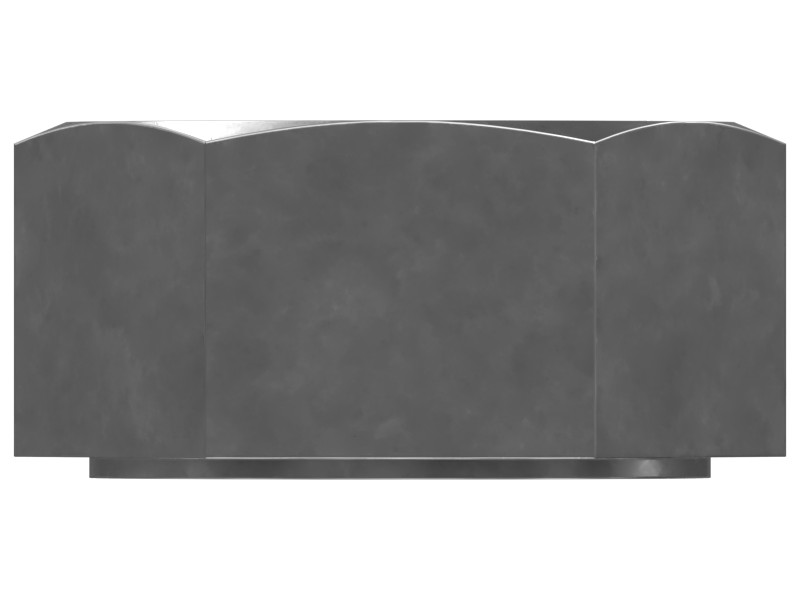

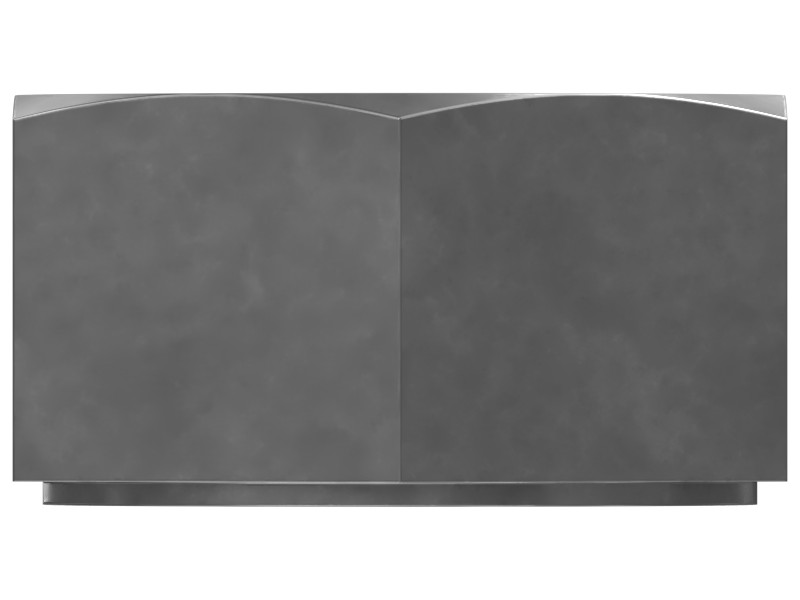

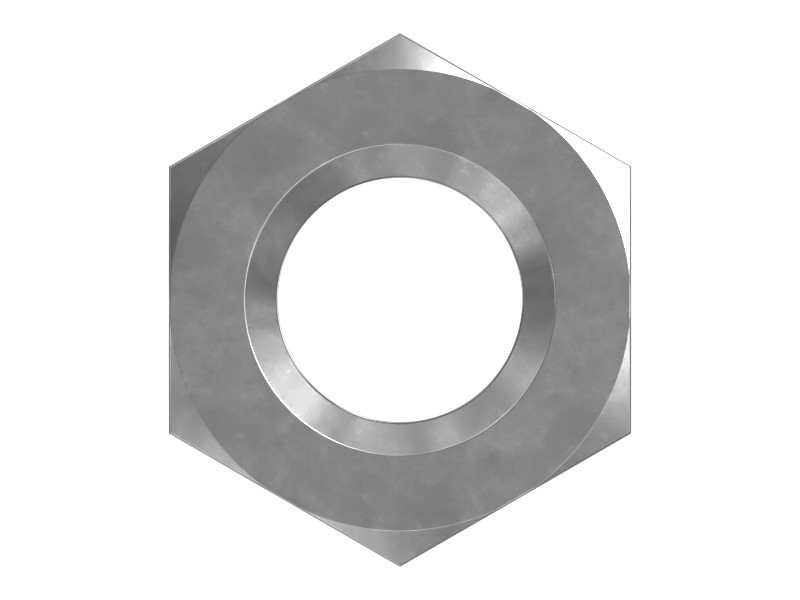

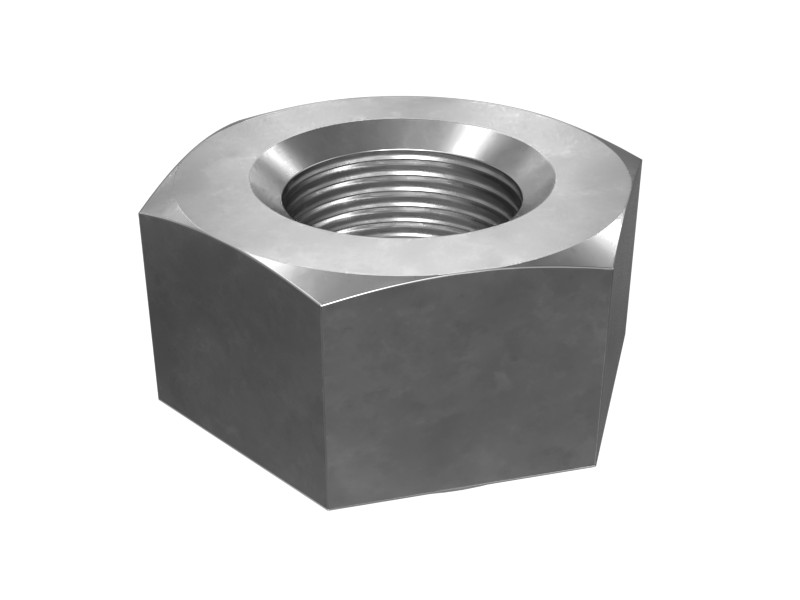

| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 5/16-24 in |
| Material Description | Austenitic Stainless Steel |
| Coating | Flash Silver Plated |
Compatible Equipment
- Generator Sets: 3516C, C4.4
- Engines: C7, C13
- Dozers: D11R, D11N, D6R II, D6R III, D9R
- Excavators: 325D L, 3126
- Wheel Loaders: 950H, 966H, 972H
- Off-Highway Trucks: 789D, 777D, 793D
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 3126, 3126B, 325D L, 3516C, 777D, 789D, 793D, 950H, 966H, 972H, C13, C4.4, C7, D11N, D11R, D6R II, D6R III, D9R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
