Description

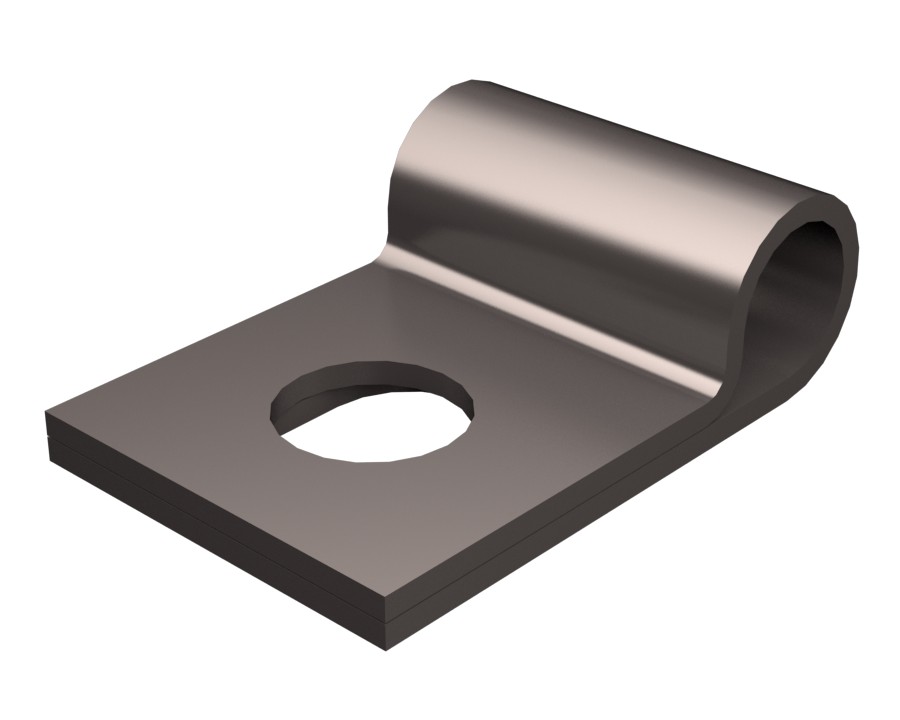

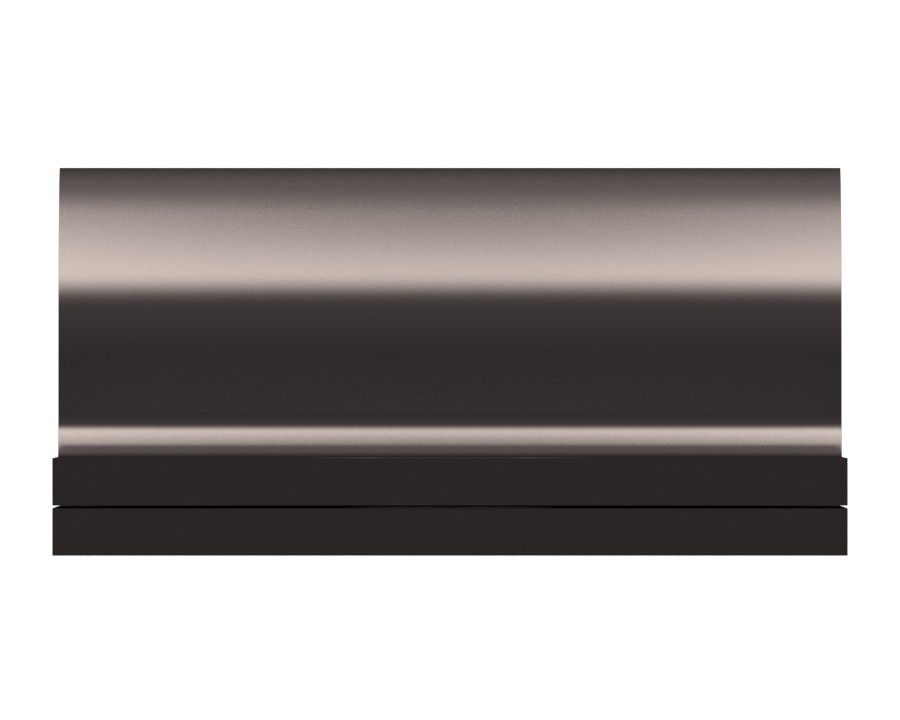

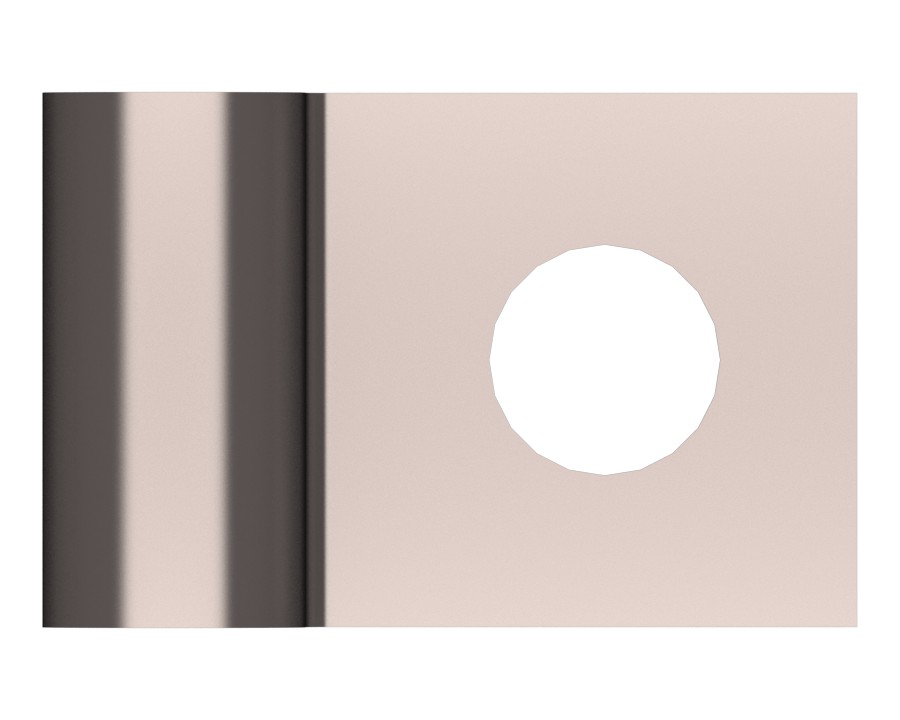

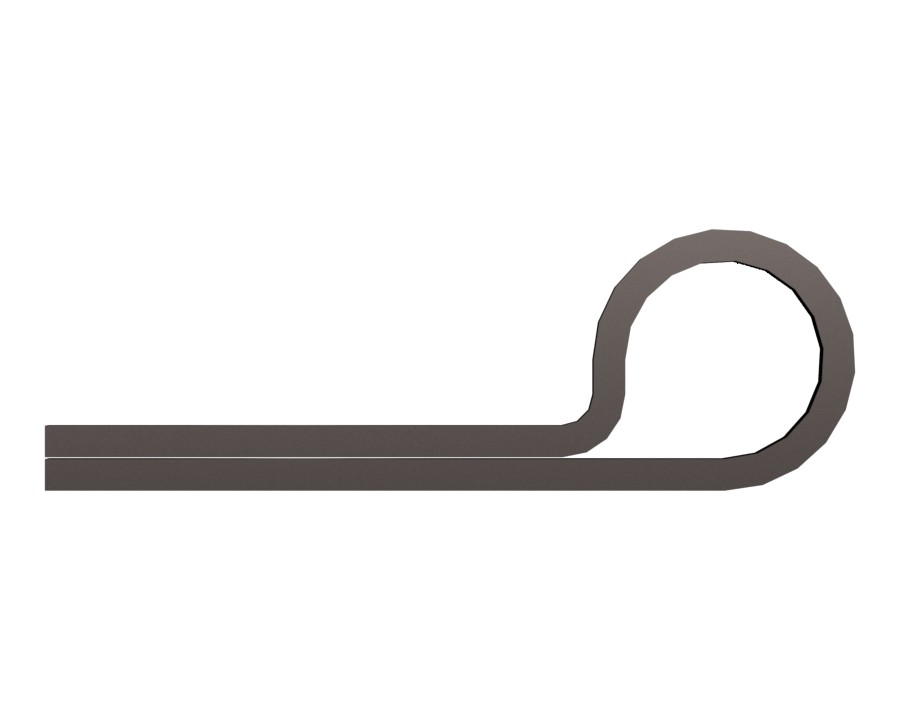

Ring clips (such as part number 8S-8820) provide a secure mounting point for rigid tubes, hoses, wiring harnesses, cables, and engine accessories.
Cat clips and clamps are manufactured to precise specifications for durability, reliability and high efficiency. Strength and quality – clips and clamps meet or exceed ANSI, ASTM and DIN requirements, with coatings that meet the special requirements of different applications (RoHS compliant). Cat clips, clamps and fasteners work together as a system to deliver outstanding reliability and safety to our customer base.
Features
- Single-tube smooth clamp
- Zinc-plated steel
- Tube Diameter: 9.5 mm (0.37 in)
- Clamp Centerline to Fastener Centerline: 20.5 mm (0.81 in)
- Width: 25.4 mm (1.00 in)
- Used with M10 or 3/8 in fasteners
Applications
This part is ideal for stocking in small repair shops and/or field service vehicles. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel Clip |
|---|---|
| Remarks | Fastener Offset: 12, Fits Fastener: M10 or 3/8, Clamp Diameter: 9.52, Clamp Thickness: 1.5, CL Clamp to CL Fastener: 20.5 |
| Clamp Width | 25.4 mm |
| Type | Single Tube Plain Clip |
| Material | Plated Steel |
| Tube Diameter | 9.52 mm (0.38 in) |
| Length | 20.5 (Clamp Centerline to Fastener Centerline) mm (0.81 (Clamp Centerline to Fastener Centerline) in) |
| Width | 25.4 mm (1.00 in) |
Compatible Equipment
- Generator Sets: G3516, 3516C
- Track Loaders: 992, 953, 982, 824G, 826K, 826G, 824C, 963, 963D, 816F, 834H
- Compactors: CS-563E, 824K, 825K, 834K
- Engines: C13, C27, C32, C7, C18
- Excavators: 3126, 349F L, 365B L, 352, 349, 336F L XE, 336E L, 336F, 336E, 336F L, 336E LH, 621H, 349E L, 365B, 3508B, 345B, 349E, 352F, 621G, 349E L VG, 336F LN, 336E LN, 336E H, 621K
- Skid Steer Loaders: 3126B
- Motor Graders: 14, 16M3, 16, 18
- Dozers: D6G2 LGP, D7E, D9L, D8L, D6G2 XL, D10, D10T
- Wheel Loaders: 834, 836, R3000H, R2900G, R1700K, 980, 986H, 980L, R2900 XE, 950G, 966K, 924GZ, 962G, 988K, 990H, 928G
- Off-Highway Trucks: 773, 730, 777, 735
Additional information
| Machine Model | 14, 16, 16M3, 18, 3126, 3126B, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 345B, 349, 349E, 349E L, 349E L VG, 349F L, 3508B, 3516C, 352, 352F, 365B, 365B L, 621G, 621H, 621K, 730, 735, 773, 777, 816F, 824C, 824G, 824K, 825K, 826G, 826K, 834, 834H, 834K, 836, 924GZ, 928G, 950G, 953, 962G, 963, 963D, 966K, 980, 980L, 982, 986H, 988K, 990H, 992, C13, C18, C27, C32, C7, CS-563E, D10, D10T, D6G2 LGP, D6G2 XL, D7E, D8L, D9L, G3516, R1700K, R2900 XE, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
