Description

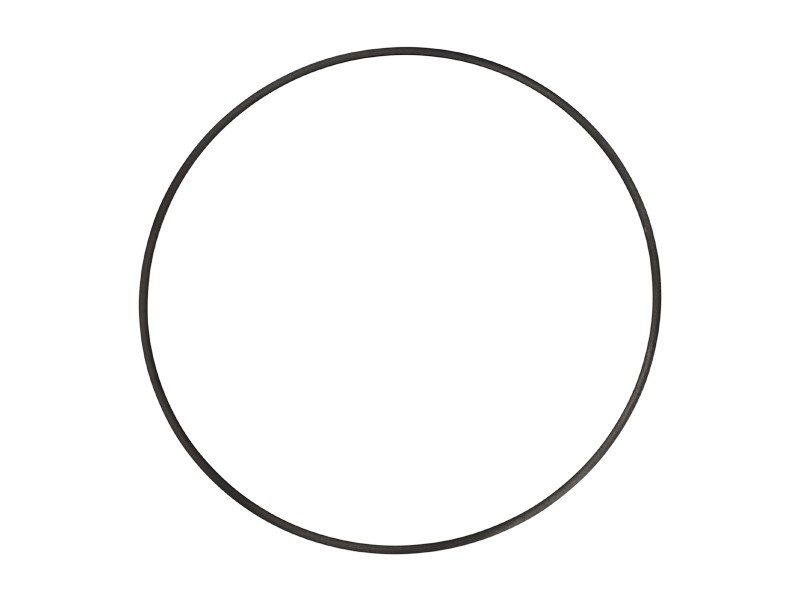

The cylinder liner shim, also known as a cylinder liner spacer, is a thin metal or composite material used in internal combustion engines to adjust cylinder liner height or compensate for wear and to restore proper clearance between the piston and the cylinder. A cylinder liner, also known as a cylinder sleeve, is a cylindrical component inserted into the cylinder block that forms the combustion chamber in which the piston moves.
Features
- Allows precise calibration and alignment adjustment, and resists wear and deformation
- Eliminates gaps or looseness between parts and ensures a secure fit
- Manufactured to exact specifications for rugged durability, reliable performance and outstanding productivity
Applications
The cylinder liner shim is used to adjust the height of the cylinder liner, compensate for wear, and restore proper piston clearance.
Specifications
| Material Description | Steel |
|---|---|
| Inside Diameter | 138.93 mm (5.47 in) |
| Length | 72.5 mm |
| Overall Height | 0.75 mm (0.02 in) |
| Outside Diameter | 143.7 mm (5.66 in) |
| Thickness | 7.54 mm (0.3 in) |
| Weight | 0.01 kg (0.03 lb) |
Compatible Equipment
- Dozers: D5H
