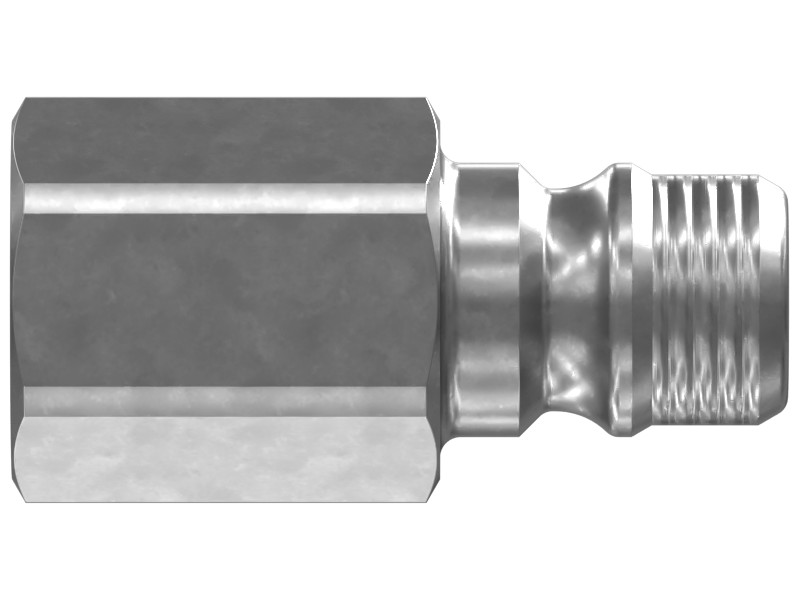

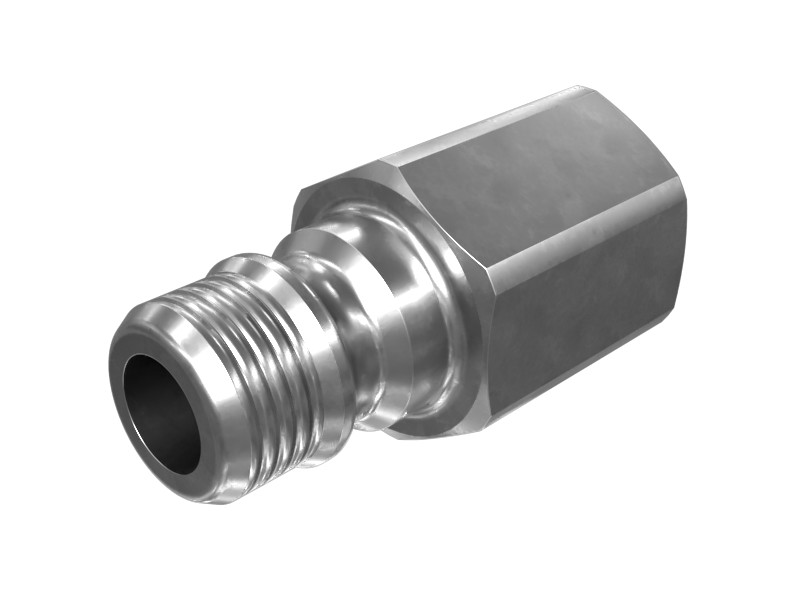

8S-4600 Quick Disconnect Threaded Coupling
Quick Disconnect Threaded Coupling (Female End) (Test)
Description
Dealer Tools
Quick disconnect threaded couplings enable quick and easy connections during testing.
Features
- Internal 1/4-18 NPT Thread
- 1/4 inch coupling
Applications
Fittings are used to connect fluid-carrying hoses and rigid tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Connector Type | NPT to Quick Disconnect |
|---|---|
| Material Description | Plated Steel |
| Primary Seal Material | NBR |
| Length | 27 mm (1.05 in) |
| Thread | 1/4-18 NPT |
| Hex Size | 16 mm (0.63 in) |
Compatible Equipment
- Off-Highway Trucks: 789D, 785D, 785, 789, 7495, 793, 793D
