Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
| Thread Size (Diameter × Pitch) | 5/8×11 mm |
| Thread Size | 0.625 mm (0.025 in) |

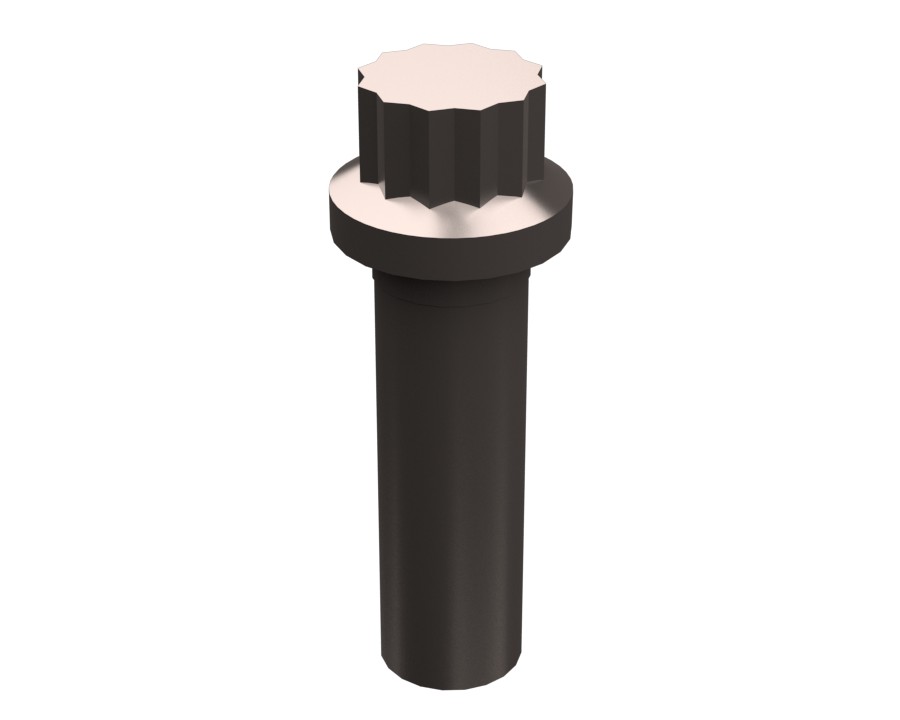

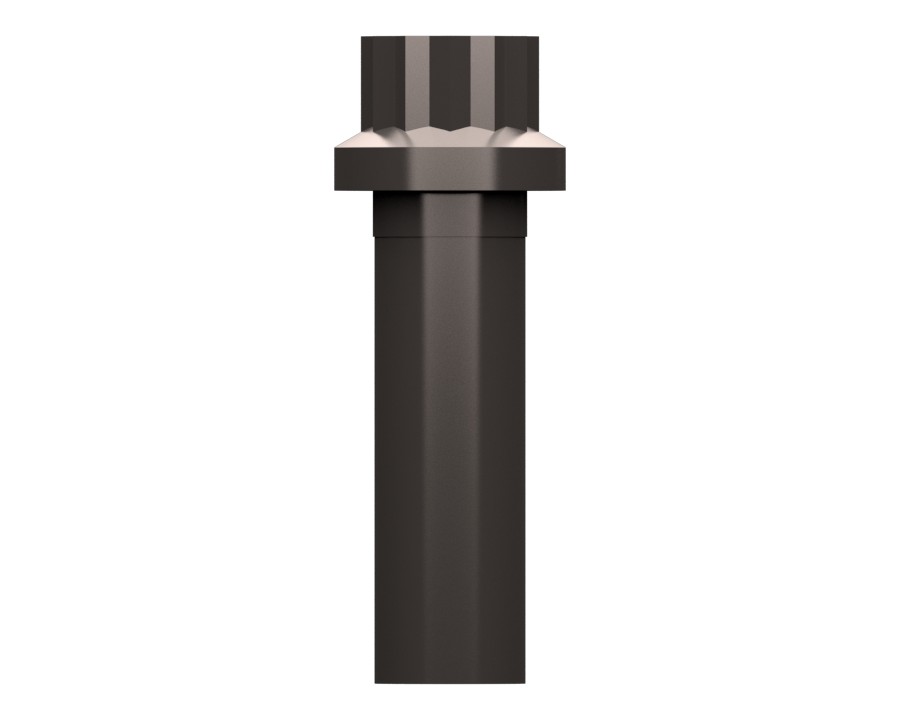

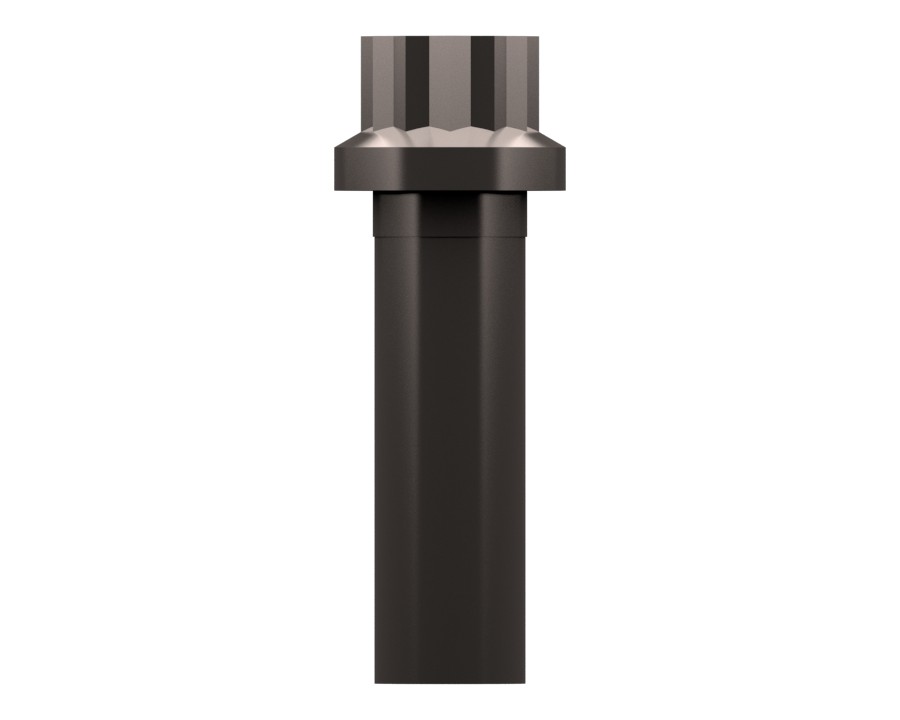

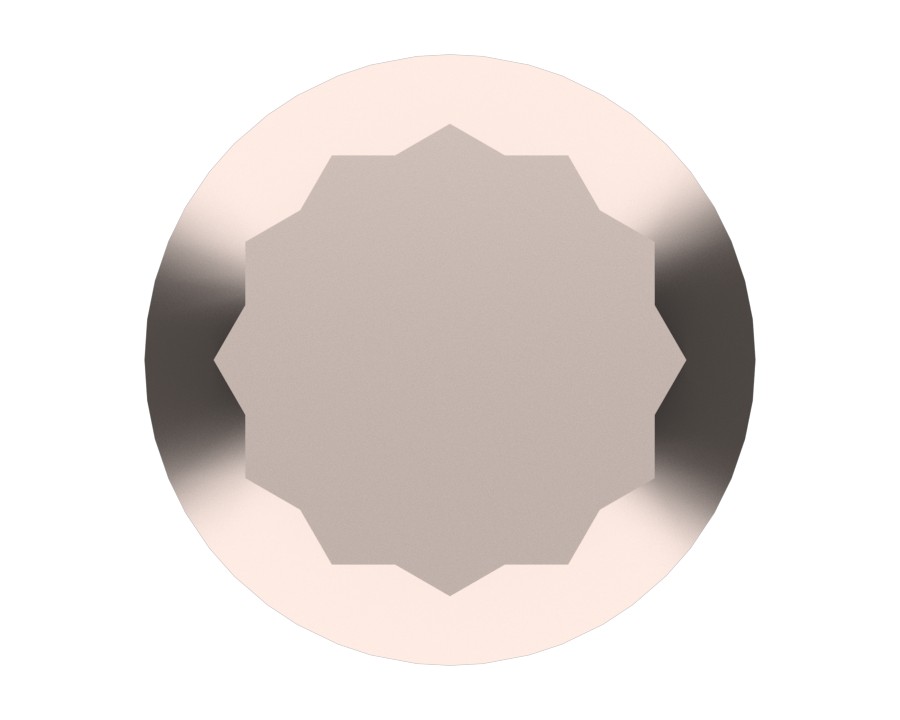

| Type | 12-Point Head Bolt |
| Bolt Length | 50.8 mm (2 in) |
| Bolt Type | 12-Point Head Bolt |
| Coating | Plain With Corrosion Inhibitor or Black Oxide With Corrosion Inhibitor |
| Handle Length | 4.76 mm (0.19 in) |
| Flange Diameter | 0.94 in |
Compatible Equipment
- Generator Sets: 3406C, 3512B, 3512E, 3516C, G3516C, C9, G3516, 3406B, C4.4
- Track Loaders: 826K, 994K, 995
- Cold Planers: PL83, PL87
- Compactors: 825K, 824K, C-15
- Engines: C15, C13, C18
- Dozers: D8, D11R, D11N, D11, D8R, D8T, D8N
- Excavators: 3516B, 6015B, 3512C, 3516E, 3508B, 6015, 6060, 621G
- Wheel Loaders: R2900G, R1600H, R1700G
- Off-Highway Trucks: 785, 793D, 789D, 785D, 777D, 777, 789, 793
- Asphalt Pavers: AD45
Additional information
| Machine Model | 3406B, 3406C, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6015, 6015B, 6060, 621G, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 824K, 825K, 826K, 994K, 995, AD45, C-15, C13, C15, C18, C4.4, C9, D11, D11N, D11R, D8, D8N, D8R, D8T, G3516, G3516C, PL83, PL87, R1600H, R1700G, R2900G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
