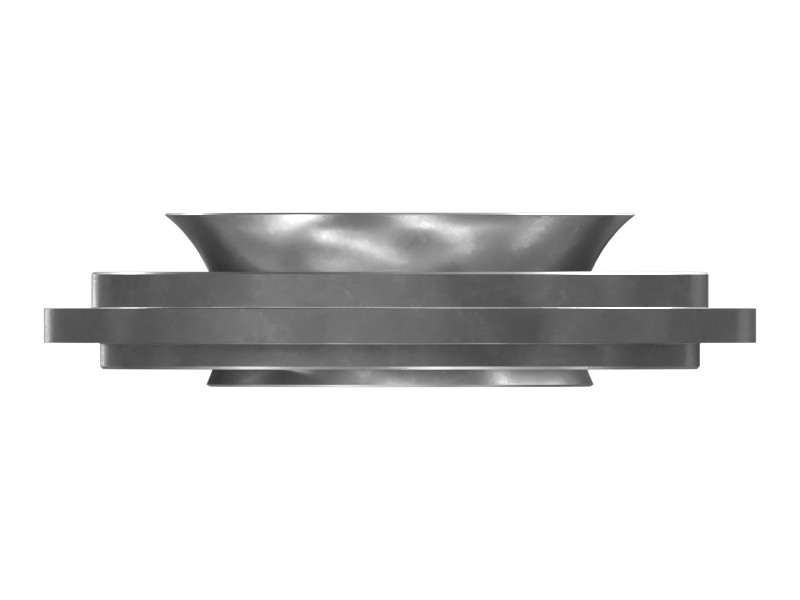

8P-9266 96 Internal Spline Tooth Torque Converter Stator
Cat® 17 blade torque converter stator for automatic transmissions, improving torque efficiency and vehicle performance.
Description
Power generated by the engine is multiplied in the torque converter and then transmitted to the transmission for use by other powertrain components. The torque converter stator is one of the components in the torque converter that redirects the flow of fluid to achieve the required torque converter performance.
Features
- Material: Cast aluminum
- Number of Blades: 17
- Number of Internal Spline Teeth: 96
- Outside Diameter: 333 mm (13.11 in)
- Inside Diameter: 151.57 mm (5.97 in)
- Length: 90.84 mm (3.58 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Material Description | Cast Aluminum |
| Outside Diameter | 333 mm (13.11 in) |
| Inside Diameter | 151.57 mm (5.97 in) |
| Length | 90.84 mm (3.58 in) |
Compatible Equipment
- Dozers: D10T2, D10T, D10R, D10N, D9N, D8L, D9L
