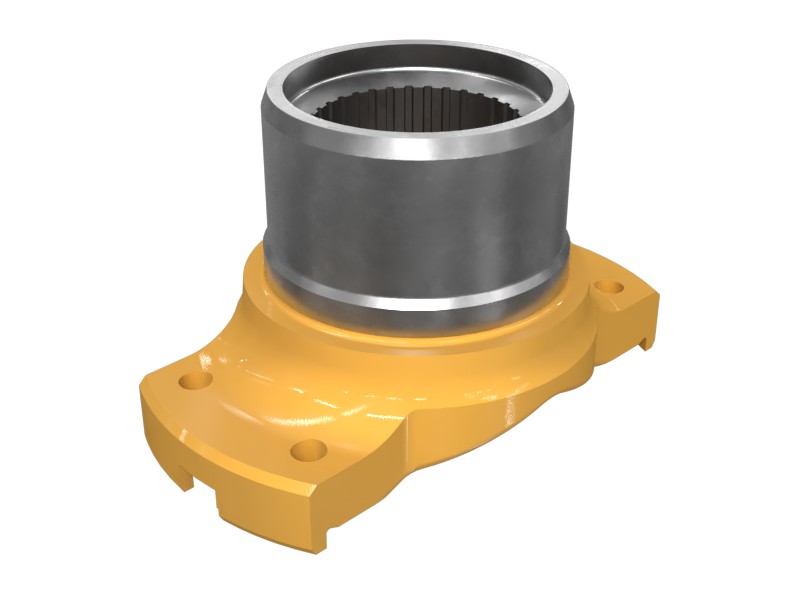

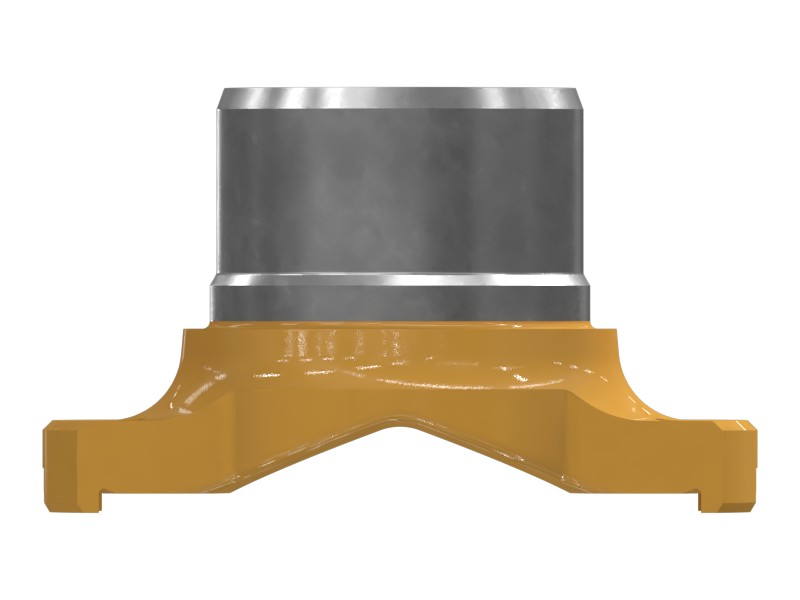

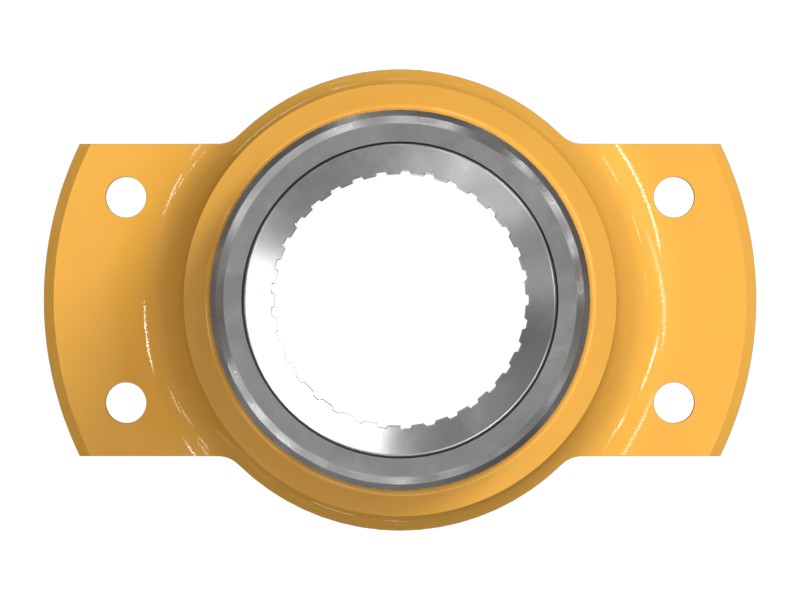

8P-8559 33 Tooth Torque Converter Yoke
Cat® 33 tooth steel torque converter yoke for use in powertrains
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind. Cat yokes allow rigid shafts to connect around the cross and bearing assembly to transmit rotary motion to the wheels or tracks.
Features
- Hardened steel yoke
- Number of Internal Spline Teeth: 33
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Approximate Weight | 5.95 kg (13.12 lb) |
| Outside Diameter | 148.5 mm (5.846 in) |
| Inside Diameter | 50.77 mm (1.998 in) |
| Length | 84 mm (3.307 in) |
| Overall Height | 148.5 mm (5.85 in) |
| Overall Length | 88 mm (3.46 in) |
| Overall Width | 96 mm (3.78 in) |
Compatible Equipment
- Wheel Loaders: R1700 II, R1700G, R1600H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
