Description

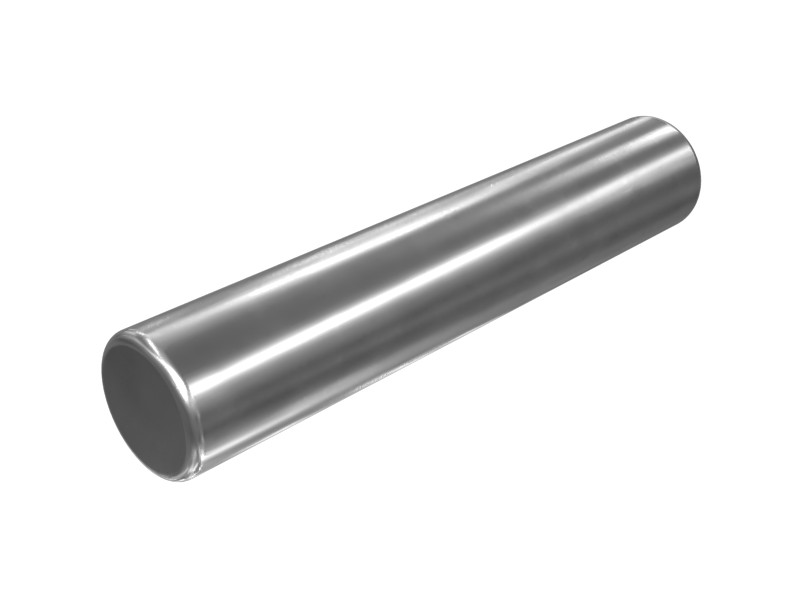

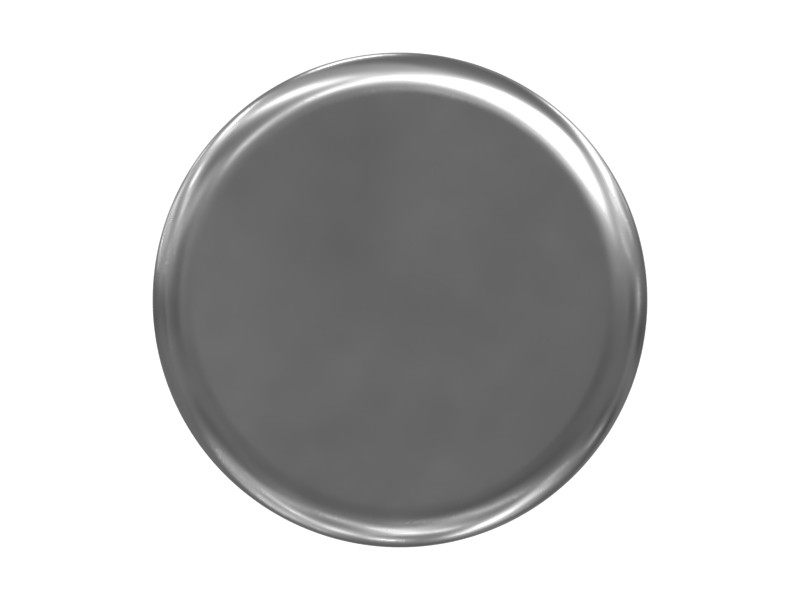

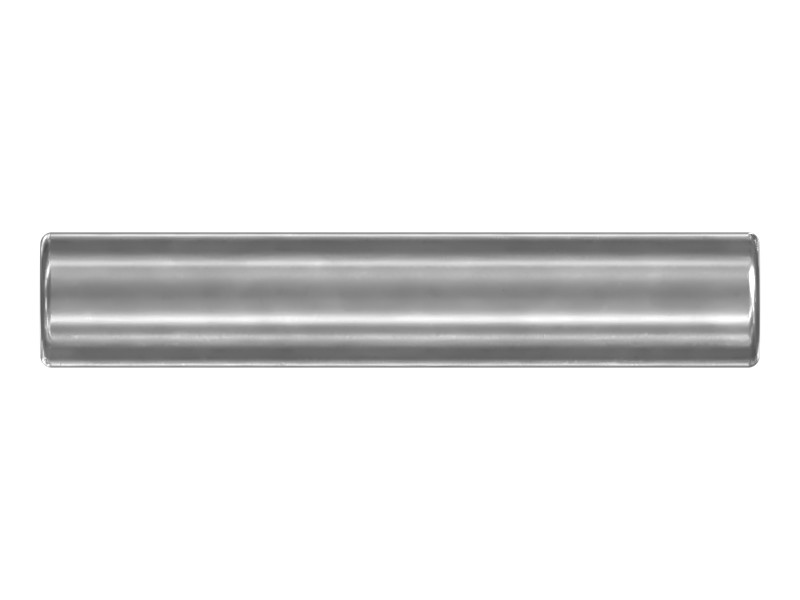

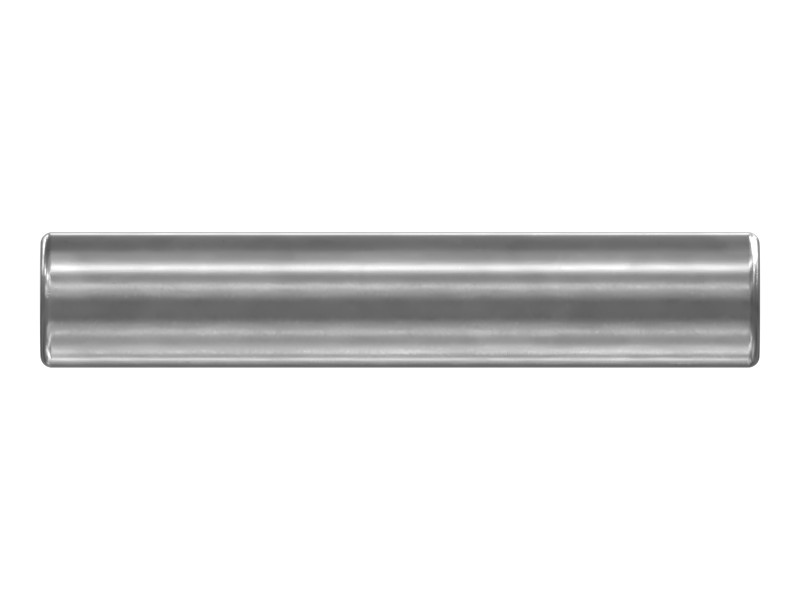

Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and gear shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine. The Cat freewheel roller is designed as part of the torque converter freewheel clutch system, allowing a transition from the torque converter stator to freewheeling under high speed, low torque conditions (such as while traveling).
Features
Hardened steel freewheel roller
Applications
Cat freewheel rollers are used in the torque converter system of Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Steel(1E0112) |
|---|---|
| Pin Length | 50.75 mm (1.998 in) |
| Pin Outside Diameter | 9.53 mm (0.375 in) |
| Pin Type | Solid |
| Length | 51 mm (2 in) |
| Diameter | 10 mm (0.37 in) |
| Outside Diameter | 9.5 mm (2 in) |
| Material Description | Hardened Steel |
Compatible Equipment
- Wheel Excavators: MD6250, MD6310
- Dozers: D6N
- Excavators: 3516B
- Wheel Loaders: 966M, 972M
- Off-Highway Trucks: 793D, 789D, 789, 793
Additional information
| Machine Model | 3516B, 789, 789D, 793, 793D, 966M, 972M, D6N, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Off-Highway Trucks |
| Part Source | Genuine OEM |
