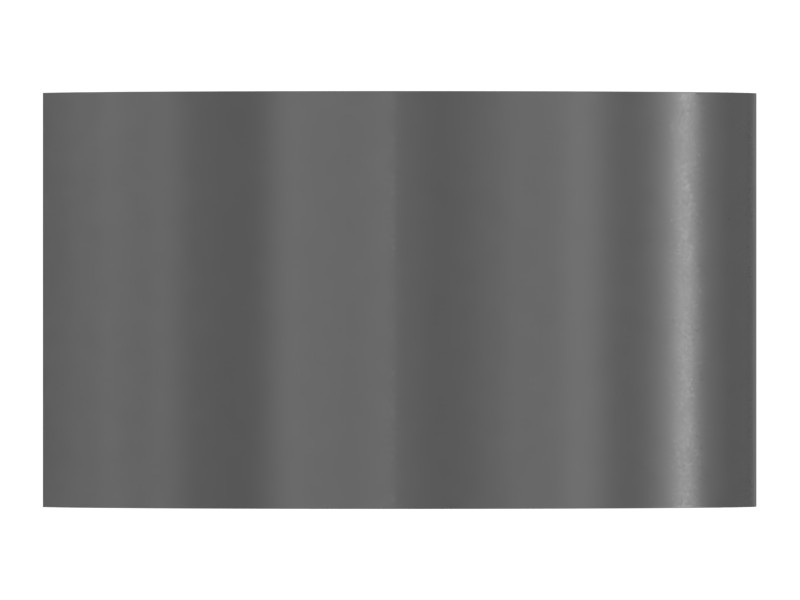

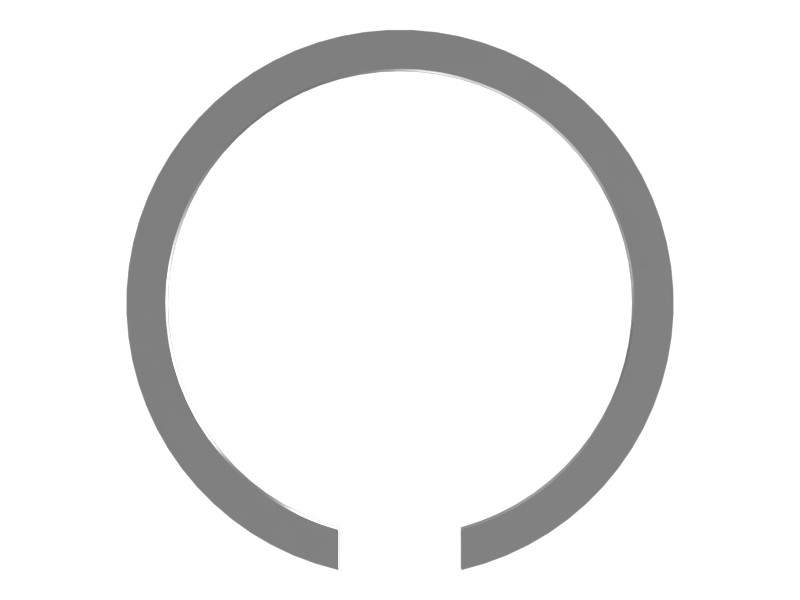

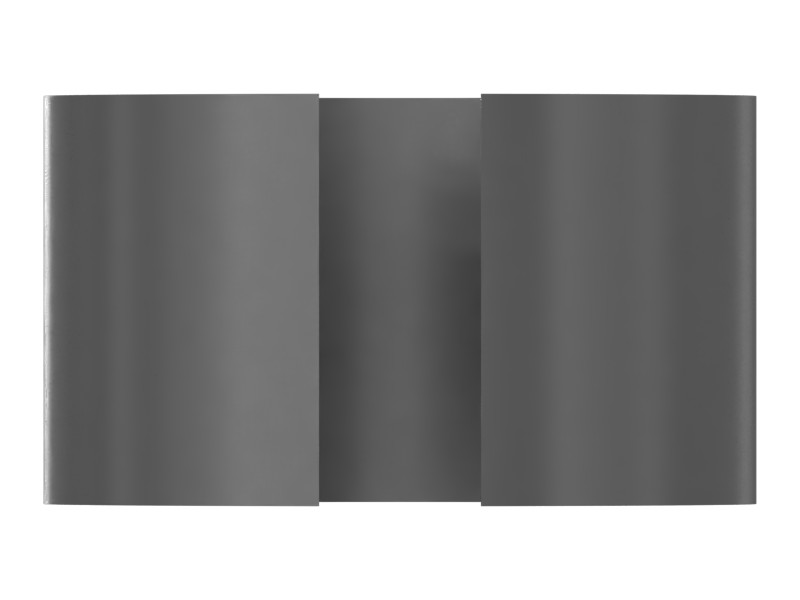

8N-6062 19.05 mm ID Split Sleeve Bearing
Cat® 19.05 mm ID Split Sleeve Bearing Used in Cutoff Arrangement
Description
The split bushing is designed to sit inside the housing group of the cutoff air assembly, allowing it to expand or compress for easy installation or removal. The split can be located on one side of the bushing. The inside diameter of the bushing matches the outside diameter of the shaft, providing a secure and precise fit.
Attributes
- Helps distribute the load evenly across the mounting surface
- Built to exact specifications for durability and reliable performance
- Can withstand high loads and provides good support for rotating shafts.
Applications
The split bushing is used inside the housing group to support two parts and enable smooth rotating or sliding motion. This type of bushing is mainly used in Cat 3508, 3508B, 3512, 3516, D379A, D379B, D398A, D398B and D399 Engines (Piston), 3508, 3512, 3512B, 3516, D379B, D398B, D399 and PM3508 Generator Sets.
Specifications
| Overall Length | 12.7 mm (0.5 in) |
|---|---|
| Ferrule Inside Diameter | 19.05 mm (0.75 in) |
| Ferrule Outside Diameter | 22.205 mm (0.874 in) |
| Cross Hole | No |
| Unique Features | No |
| Inside Diameter | 19.05 mm (0.75 in) |
| Length | 12.7 mm (0.5 in) |
Compatible Equipment
- Excavators: 3508B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
