Description

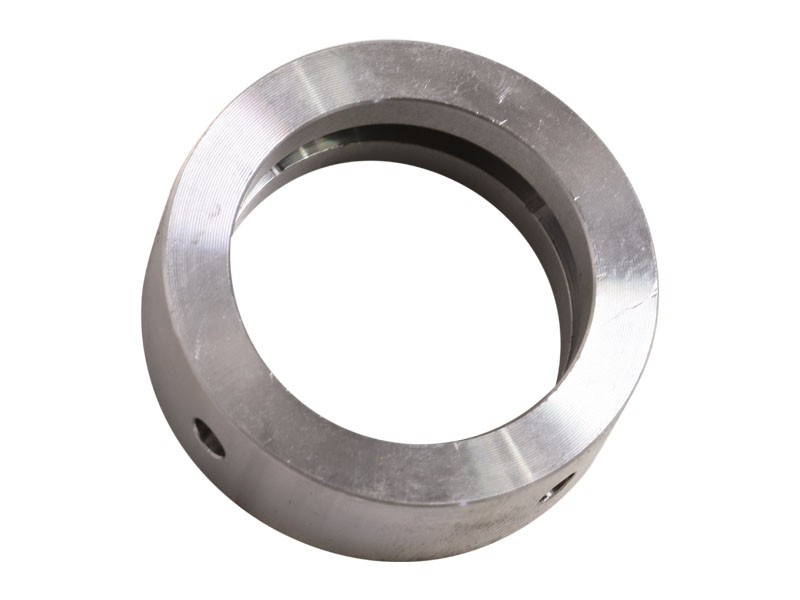

The shims used in the belt tensioner are used to precisely adjust the position of the pulley relative to the belt. They are also used to provide a locating aid between components. Shims are typically made of durable materials such as steel. They come in various sizes and thicknesses.
Attributes
- Reduces friction and wear.
- Comes with 4 lubrication holes with a diameter of 3.2 mm.
Applications
A shim is placed between two ball bearings to provide clearance and keep the belt tensioner operating properly.
Specifications
| Ferrule Inside Diameter | 25.5 mm (1.004 in) |
|---|---|
| Unique Features | No |
| Overall Length | 11.66 mm (0.459 in) |
| Material | — |
| Ferrule Outside Diameter | 35 mm (1.378 in) |
| Cross Hole | Yes |
Compatible Equipment
- Dozers: D9L, D8L, D9N
