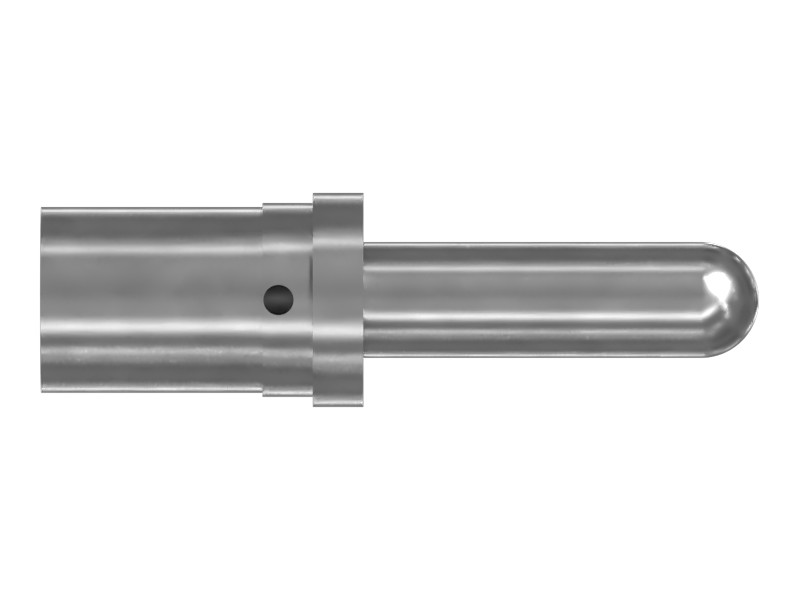

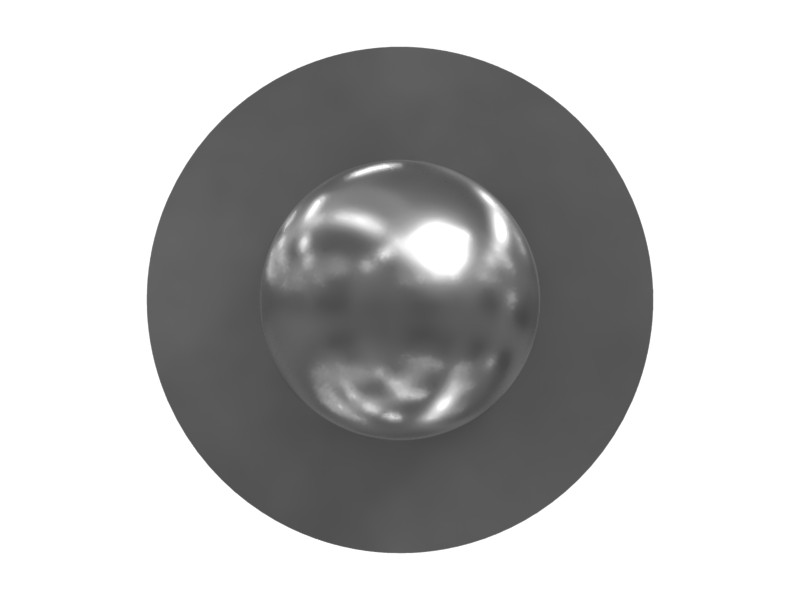

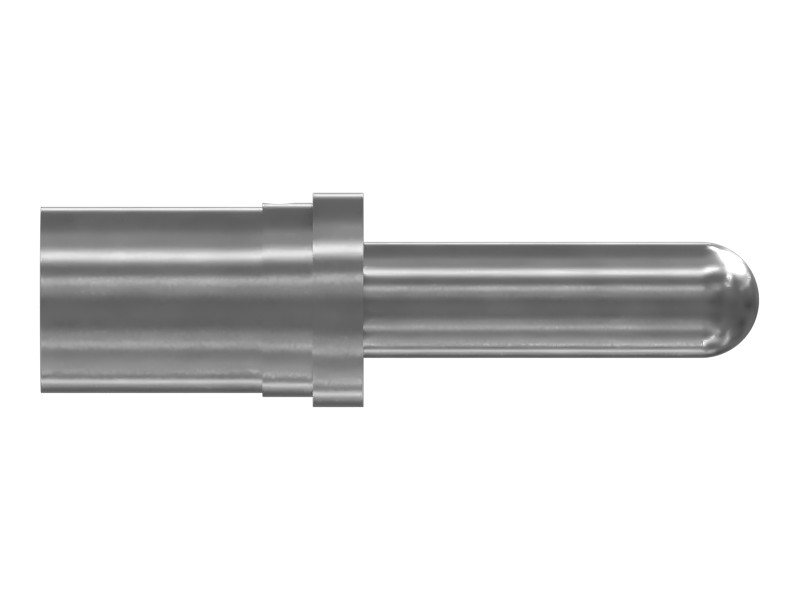

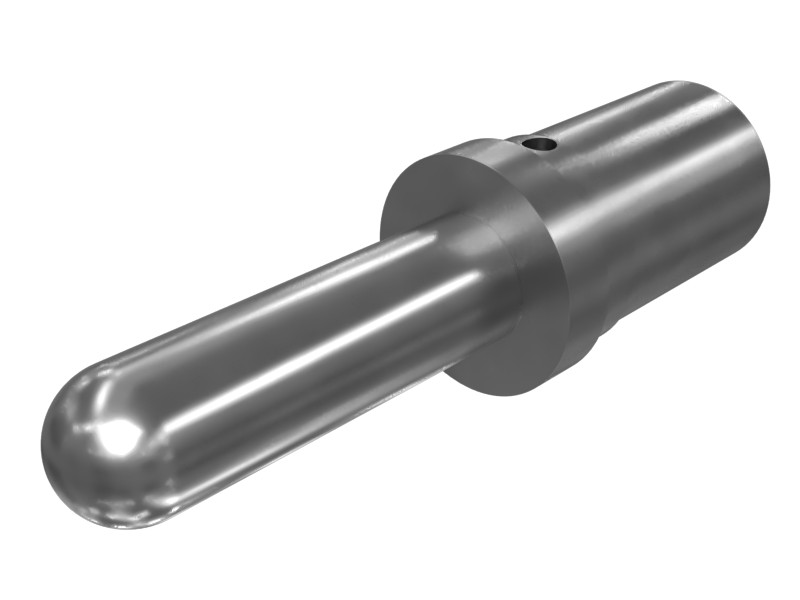

8N-1548 4 AWG Connector Pin
Cat® 80 Amp 10.6 mm OD 4 AWG Engine Wiring Harness Connector Pin
Description
Cat terminal pins are used in electrical connectors. Cat terminal pins are inserted into the Cat terminal sockets on the mating connector to establish an electrical connection.
Features
- Contact Size: 4
- Wire Size: 4 AWG
- Rated Current: 80 A
- Nickel Plated
- RoHS compliant
Applications
Cat Connector Pins provide reliable mating between wires or between a wire and a device. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Brass |
|---|---|
| Wire Gauge | 4 AWG |
| Overall Length | 35.6 mm (1.4 in) |
| Pin Diameter | 5.7 mm (0.22 in) |
| Outside Diameter | 10.6 mm (0.42 in) |
Compatible Equipment
- Generator Sets: 3512E, 3516C, 3512B, C7.1, C7.1DE200E, C4.4DE88E0, C9
- Track Loaders: 824C, 826H
- Compactors: C13B, C9.3B, CB-44B
- Engines: C15, C13, C32, C18, C175-16
- Excavators: 330, 349D2, 349D2 L, 349D, 320D, 316 GC, 313 GC, 313, 657G, 352, 320 GX, 323 GX, 120 GC, 340, 637K, 637G, 312 GC, 3508B, 3516B, 3516E, 320D3, 313 GX, 316 GX, 312 GX, 3512C, 385C FS, 345C L, 621H, 621K, 385C, 345D L, 621G, 365C L, 349D L, 320D FM, 385C L, 345C, 365C, 350 L, 345D
- Skid Steer Loaders: 246D3, 259D3, 262D3, 262D, 232D3, 246C, 246D, 279C, 236D3, 232D, 236D, 216B3, 289D3, 272D3, 226D3, 299D3 XE, 249D3, 239D3, 242D3, 272D3 XE, 226B3, 236B3, 262C
- Motor Graders: 12H, 120H, 14M, 16M, 140 GC, 140K, 160K, 140H, 12K, 14, 16H
- Wheel Excavators: M315, M315GC
- Dozers: D6N, D6M, D5N, D6G2 XL, D7R, D6G2 LGP, D5M, D4G, D7H, D7G2, D3G, D6R, D7G, D5G, D10R, D11, D11N, D11R, D9T
- Compact Track Loaders: 279D3, 299D3
- Wheel Loaders: 966H, 962G, 950G, 950 GC, 972H, 950H, 980G, 966F, 980H, 972G, 992C, 986H
- Off-Highway Trucks: 793D, 772G, 775G, 773F, 770G, 773E, 740, 777D, 789D, 785, 725, 777E, 785D, 777, 773D, 730, 735, 771D, 773, 789, 798 AC, 794 AC, 796 AC
