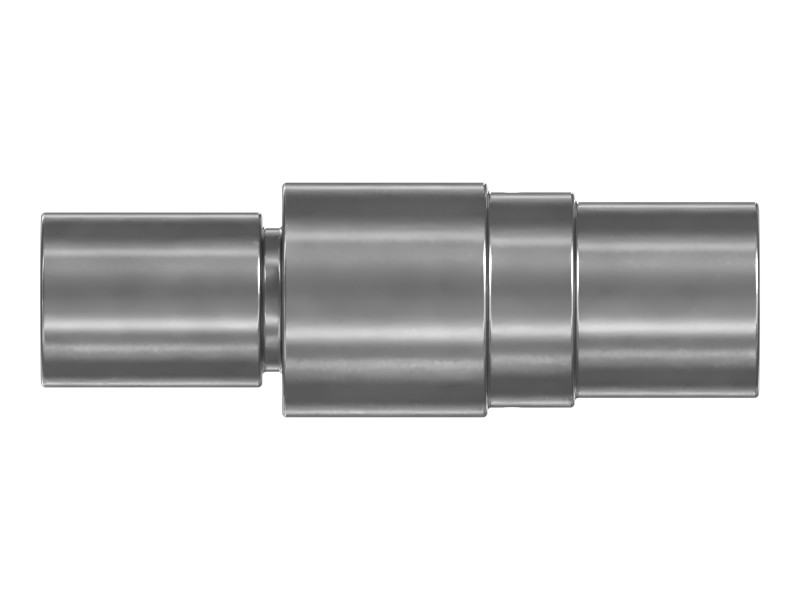

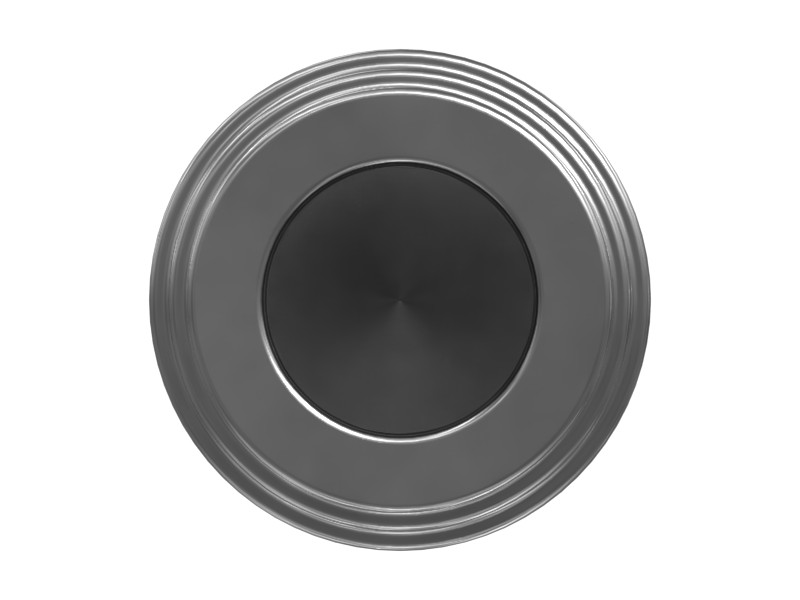

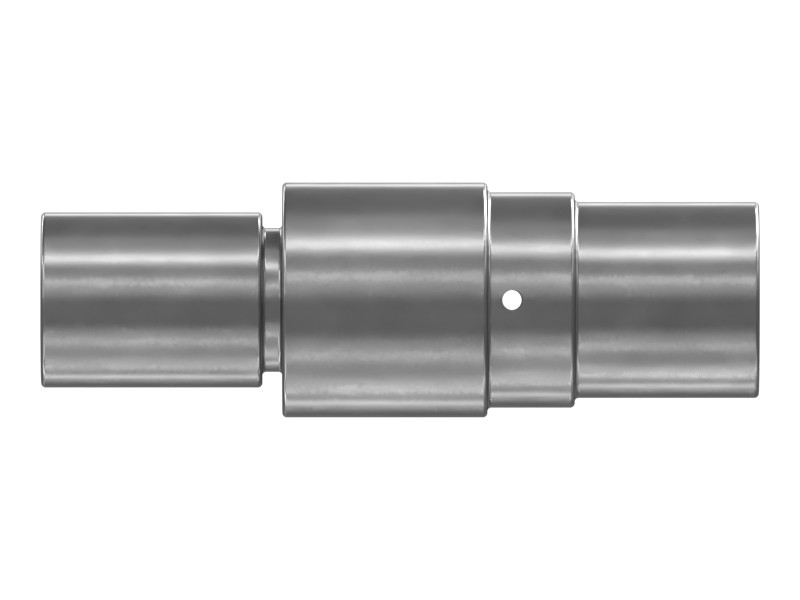

8N-1547 Connector Receptacle
Cat® 35.05 mm Long Engine Wiring Harness Connector Receptacle for proper communication and power distribution
Description
Cat Terminal Sockets are used in electrical connectors. Cat Terminal Pins are inserted into the Cat Terminal Sockets on the mating connector to make the electrical connection.
Features
- Wire Size: 6 AWG
- Rated Current: 60 Amps
- ROHS compliant
Applications
Cat Connector Receptacles provide reliable connections between wires or between a wire and a device. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 8.53 mm (0.33 in) |
|---|---|
| Material | Stainless Steel |
| Wire Gauge | 6 AWG |
| Length | 35.05 mm (1.38 in) |
| Outside Diameter | 9.55 mm (0.375 in) |
Compatible Equipment
- Generator Sets: 3512B, C4.4, G3516, 3516C
- Compactors: CP11 GC, CP12 GC, CB16, CS78B, CS74B, CS12, CS12 GC, CS-533C, CS-54, CB-534D, CB-44B, CP56B, CS56B, CS68B, CS11, CS-56, CB-64B, CB-66B, CB-564D, CS-563E, CB15, CB13, CB10, CS-54B, CS-533E
- Engines: C32, C7, C15, C18
- Excavators: 320D, 329D2 L, 336D2, 326D2, 306E, 303.5E2 CR, 349D2 L, 349D2, 326D2 L, 329D, 336D, 305E2 CR, 3508B, 3516B, 336D2 L, 330D2, 323D, 312D L, 330 L, 320D L, 320D3, 328D LCR, 336D L, 312D2, 312D, 323D2 L, 323D2, 329D L, 324D L, 323D L, 313D2, 3512C, 345D L, 349D L, 345D, 345C, 320D3 GC, 314D CR, 314D LCR, 320D RR, 315D L, 330D2 L, 324D, 330D
- Asphalt Pavers: AP-600D
- Motor Graders: 160K, 12K, 140K
- Wheel Excavators: IT14G
- Dozers: D6G, D5H, D7H, D8L
- Mini Excavators: 305E2, 307E2, 306, 305.5E2, 305.5
- Wheel Loaders: 928G, R3000H, R2900G, 924GZ, R1600H
- Off-Highway Trucks: 794 AC, 796 AC, 798 AC, 777
Additional information
| Machine Model | 12K, 140K, 160K, 303.5E2 CR, 305.5, 305.5E2, 305E2, 305E2 CR, 306, 306E, 307E2, 312D, 312D L, 312D2, 313D2, 314D CR, 314D LCR, 315D L, 320D, 320D L, 320D RR, 320D3, 320D3 GC, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2 L, 330 L, 330D, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 L, 345C, 345D, 345D L, 349D L, 349D2, 349D2 L, 3508B, 3512B, 3512C, 3516B, 3516C, 777, 794 AC, 796 AC, 798 AC, 924GZ, 928G, AP-600D, C15, C18, C32, C4.4, C7, CB-44B, CB-534D, CB-564D, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP11 GC, CP12 GC, CP56B, CS-533C, CS-533E, CS-54, CS-54B, CS-56, CS-563E, CS11, CS12, CS12 GC, CS56B, CS68B, CS74B, CS78B, D5H, D6G, D7H, D8L, G3516, IT14G, R1600H, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
