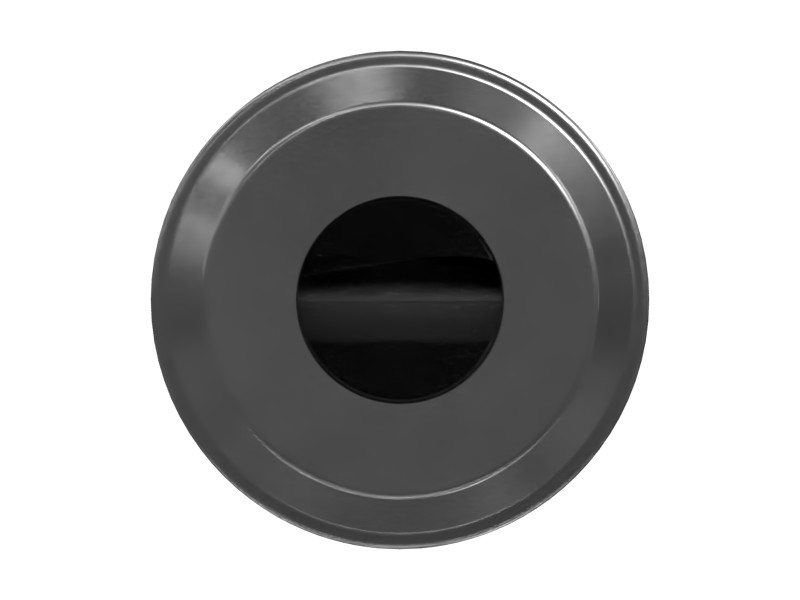

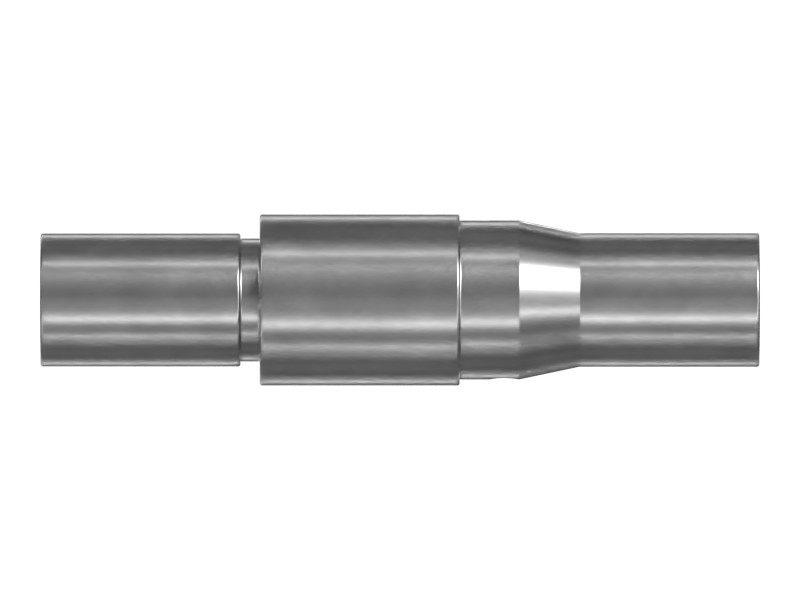

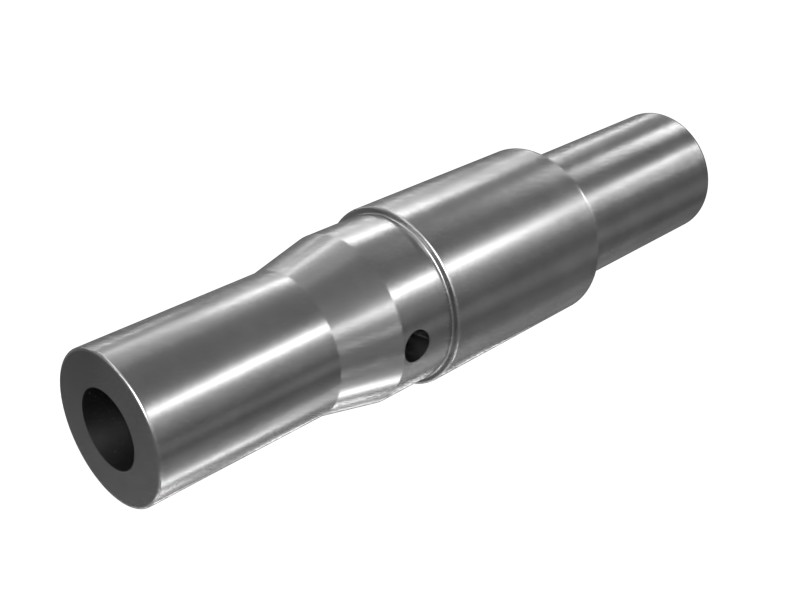

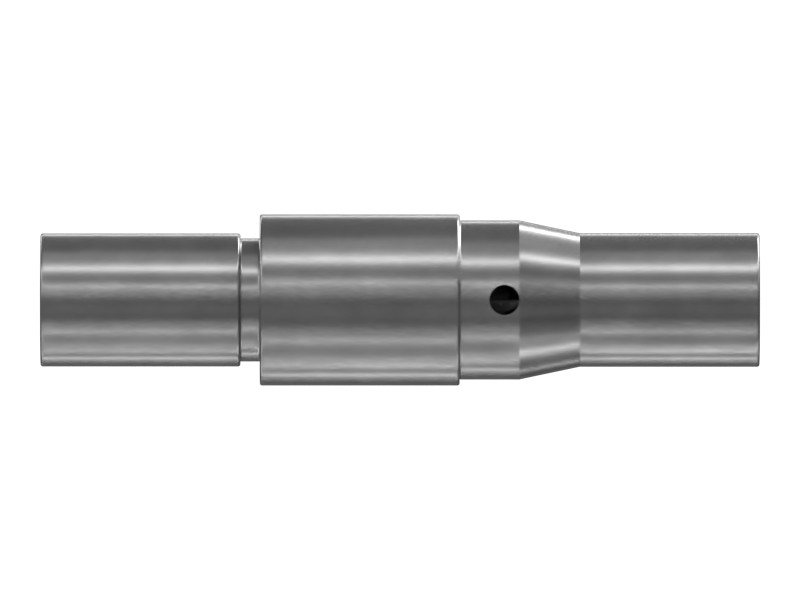

8N-1543 Connector Receptacle
Cat® 36 mm Long Power Wiring Harness Connector Receptacle for Efficient Power Distribution and Connection
Description
Cat connector receptacles are for use with electrical connectors. The Cat terminal pins on the mating connector can be inserted into the Cat terminal sockets to connect the electrical connectors. Cat receptacle connectors provide a reliable mating connection between wires or between wires and equipment.
Features
- Contact Size: 8
- Nickel-plated brass
- Wire Size AWG: 10
- Length: 36 mm (1.4 in)
- Rated Current: 30 Amps
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Wire Gauge | 10 AWG |
|---|---|
| Material | Stainless Steel |
| Outside Diameter | 8.6 mm (0.34 in) |
| Length | 36 mm (1.4 in) |
Compatible Equipment
- Generator Sets: 3512B, 3516C, C4.4, C9, G3516
- Track Loaders: 834H, 824C, 826H
- Compactors: CB-14, CS-533C, C9.3B, C13B, C-9, C-15
- Engines: C7, C15, C27, C32, C13, C11, C18
- Excavators: 3456, 306E, 120 GC, 3512C, 3508B, 3516B, 365B, 428F, 345C, 416F2, M325D L MH, 325C, 313F LGC, 325B L, 6040, 6030, 330C L, 365B L, 3516E, 345B, 434F2
- Skid Steer Loaders: 3126B
- Motor Graders: 140 GC, 120H
- Wheel Excavators: IT14G
- Dozers: D7R, D5M, D6R, D6M, D5H, D7R II, D8R
- Mini Excavators: 306, 305.5
- Wheel Loaders: 950H, 966H, 972H, 988G, 988H, 980H, 928G, 990H, R1700 II
- Off-Highway Trucks: 785D, 735, 789D, 777D, 740, 793D, 785, 789
Additional information
| Machine Model | 120 GC, 120H, 140 GC, 305.5, 306, 306E, 3126B, 313F LGC, 325B L, 325C, 330C L, 3456, 345B, 345C, 3508B, 3512B, 3512C, 3516B, 3516C, 3516E, 365B, 365B L, 416F2, 428F, 434F2, 6030, 6040, 735, 740, 777D, 785, 785D, 789, 789D, 793D, 824C, 826H, 834H, 928G, 950H, 966H, 972H, 980H, 988G, 988H, 990H, C-15, C-9, C11, C13, C13B, C15, C18, C27, C32, C4.4, C7, C9, C9.3B, CB-14, CS-533C, D5H, D5M, D6M, D6R, D7R, D7R II, D8R, G3516, IT14G, M325D L MH, R1700 II |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
