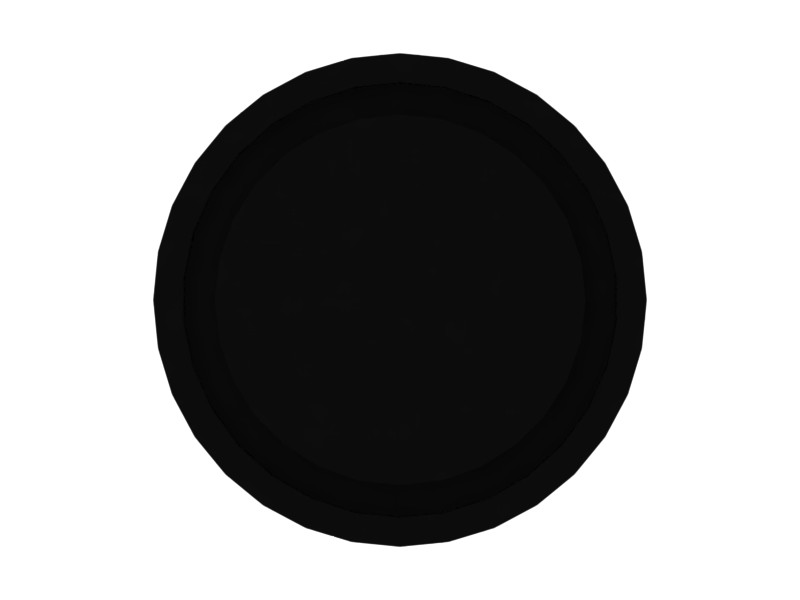

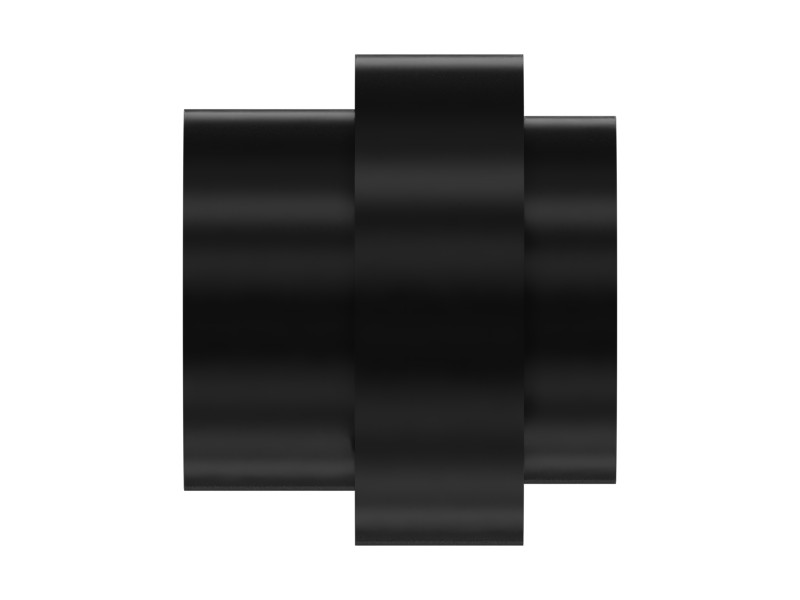

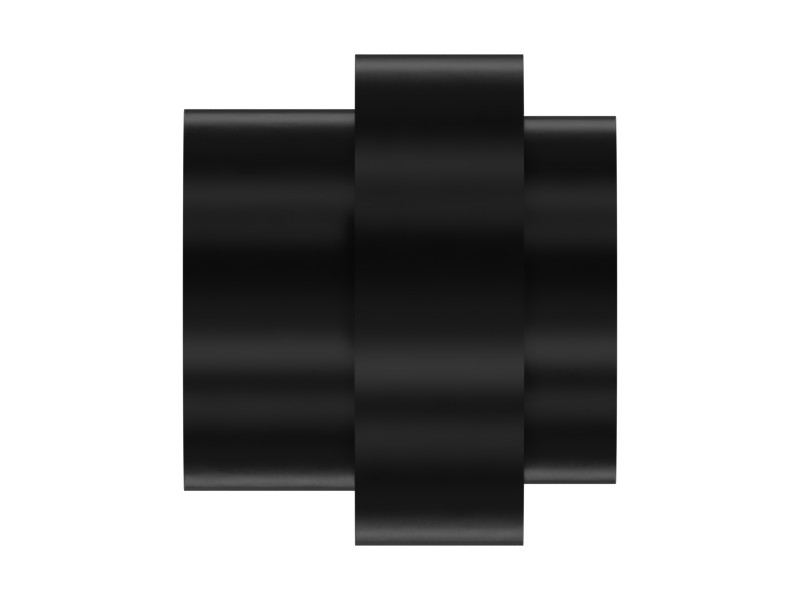

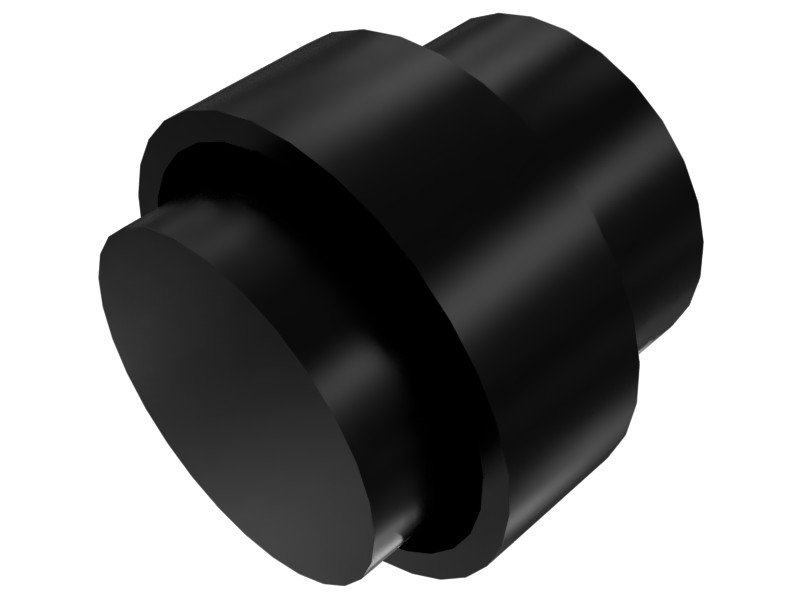

8N-1514 37-Pin Connector Plug
Cat® 57.15 mm Wide 37-Pin Connector Plug for Engine Power Distribution Wiring Harness
Description
Cat plug connectors use a pin and socket connection system to provide reliable electrical connections in a range of electrical applications on Cat heavy-duty equipment.
Features
- Contact Type: Receptacle
- Number of Contacts: 37
- Contact Size: 16
- Connector Style: Round
- Connector Series: CE
- Housing Size: 32
- Wire Size: 18-16 AWG
- Housing Material: Aluminum
- Plug is equipped with a dust cap
Applications
Cat plug connectors provide a reliable mating connection between wires or between wires and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Connector Type | Plug |
| Wire Gauge | 18-16 AWG |
| Outside Diameter | 65.02 mm (2.56 in) |
| Length | 57.15 mm (2.25 in) |
| Connector Pin Count | 37 |
| Thread Size | 2-18 in |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, G3516C, G3516
- Motor Graders: 3606
- Track Loaders: 824C, 826H, 834H
- Engines: C175-16
- Excavators: 3512C, 3516E, 3516B, 637G, 637E, 621G, 3508B
- Wheel Loaders: 992K
- Off-Highway Trucks: 730, 725, 773D, 771D, 777, 785, 777D, 735, 725C2
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 621G, 637E, 637G, 725, 725C2, 730, 735, 771D, 773D, 777, 777D, 785, 824C, 826H, 834H, 992K, C175-16, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
