Description

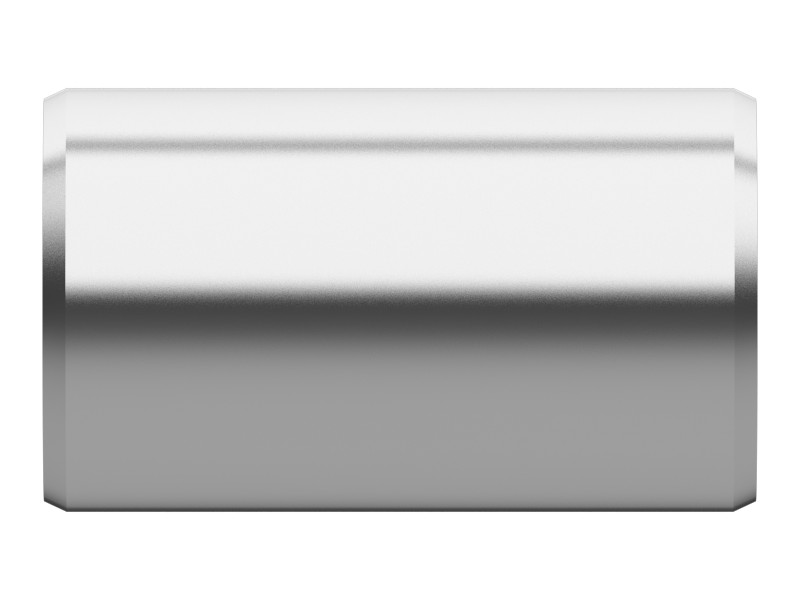

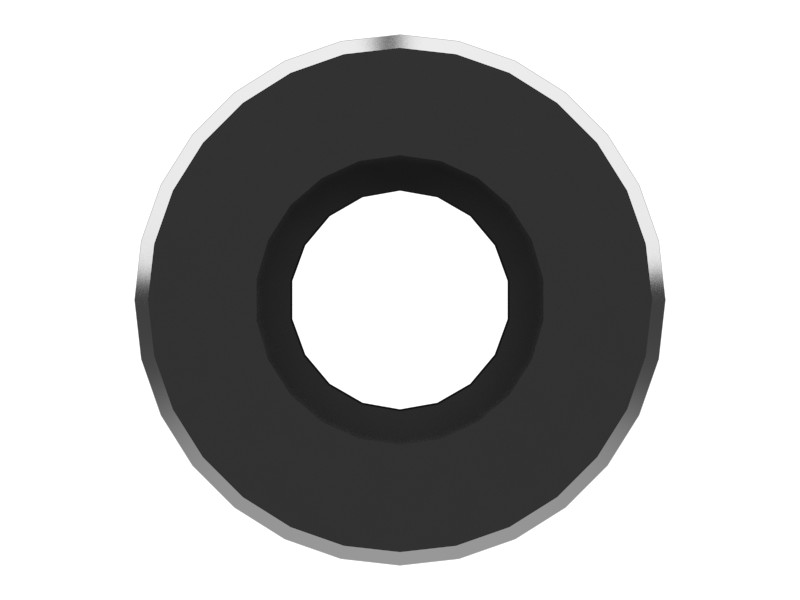

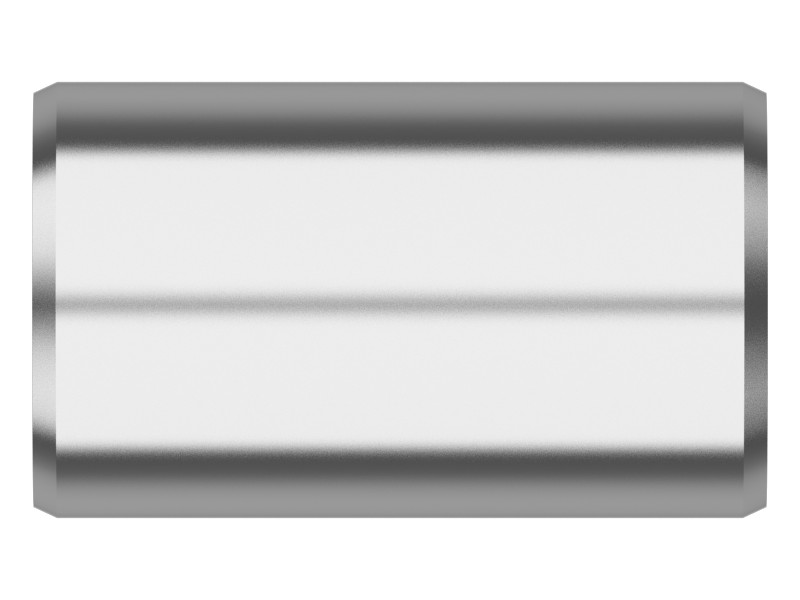

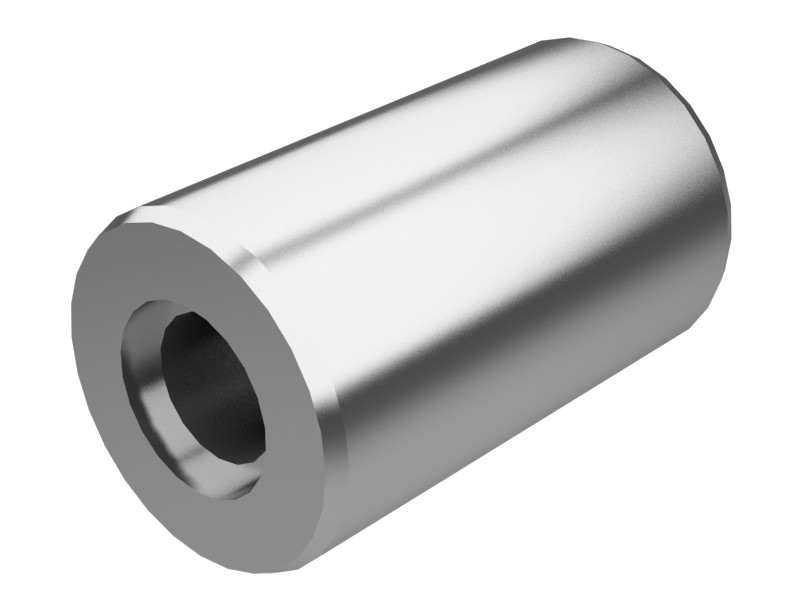

Hollow pins are headless straight pins with a tightly controlled diameter that are installed by pressing into one or two parts to transmit loads or fix the position of adjacent parts. A bolt or pin can be installed through the hollow pin, so no additional drilling is required. Cat fasteners and hardware are designed for specific applications based on size, strength, clamp load, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to work for your machine, but other companies don't know your equipment the way we do.
Features
- Hardened steel pin
- Pin Diameter: 18.8925 mm (0.74 in)
- Pin Inside Diameter: 8.204 mm (0.32 in)
- Length: 31.7 mm (1.25 in)
- End Type 1: Lead Angle
- End Type 2: Lead Angle
- Thread Size: 3/8-16
Specifications
| Length | 31.7 mm (1.25 in) |
|---|---|
| Thread Size | 3/8-16 in |
| Pin Diameter | 18.9 mm (0.74 in) |
| Material Description | Steel |
| Pin Inside Diameter | 9.53 mm (0.375 in) |
| Pin Outside Diameter | 18.89 mm (0.744 in) |
| Pin Length | 31.75 mm (1.25 in) |
| Pin Type | Dowel Bushing |
Compatible Equipment
- Track Loaders: 993, 982, 992, 826K, 826H, 990K, 824C, 824G, 826G, 834H
- Compactors: C9.3B, 824K, 825K, 834K
- Dozers: D10, D7G, D6G
- Excavators: 3508B
- Wheel Loaders: 980M, 986K, 992K
- Asphalt Pavers: AD45, AD63
