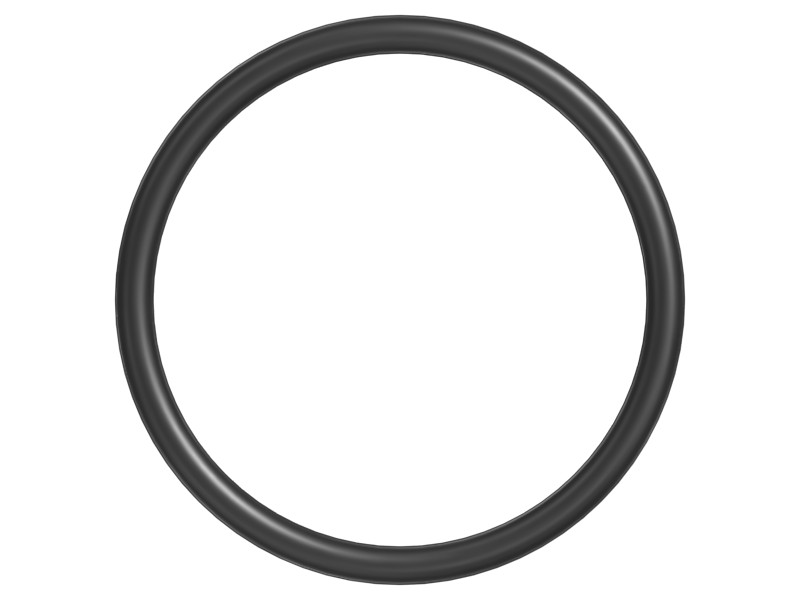

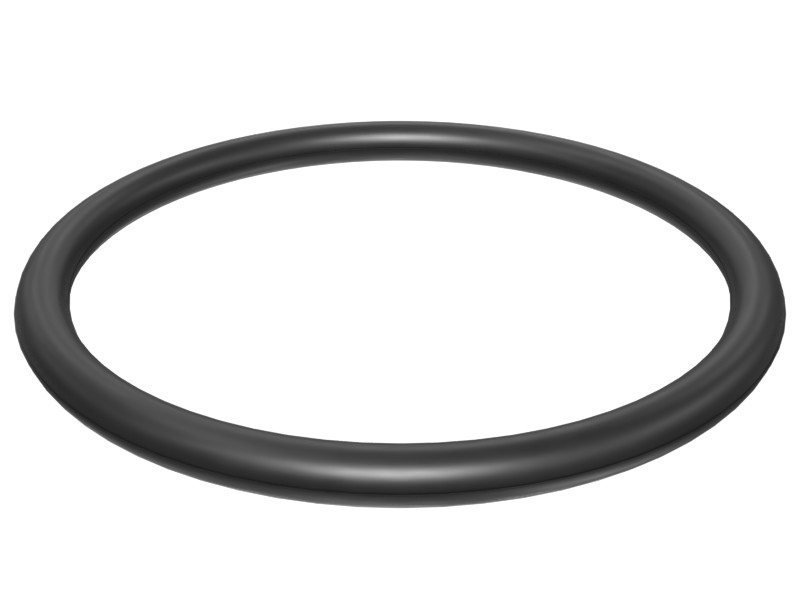

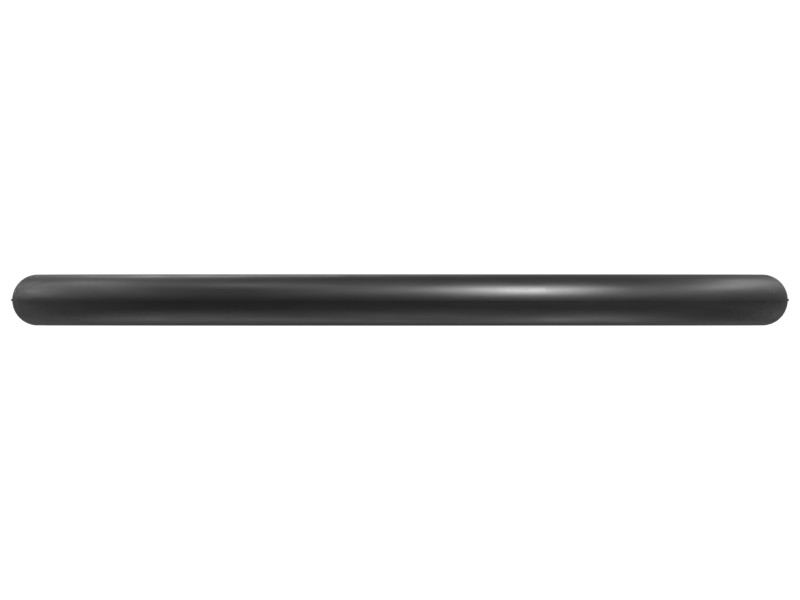

8M-5661 3.53 x 47.22 mm 70A VMQ O-Ring
Cat® engine block O-ring provides a tight barrier against oil or coolant leakage, ensuring optimal engine performance.
Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material Hardness | 70A |
|---|---|
| Compatible | Air; Diacetone Alcohol; Ethylene Glycol; Extreme High/Low Temperatures; High Aniline Point Oils; Isobutyl Alcohol; Ozone and UV Light; Polyethylene Glycol |
| Dash Size | 0 in |
| Polymer | VMQ (Silicone rubber) |
| Cross-Section Diameter | 3.53 mm (0.139 in) |
| Inside Diameter | 47.22 mm (1.859 in) |
| Material | VMQ – Silicone Rubber |
Compatible Equipment
- Motor Graders: 16
- Track Loaders: 824C, 992, 826G, 826H, 824G
- Compactors: C9.3B
- Dozers: D10, D11T, D10R, D7R II, D6R III, D7H, D9R, D6R, D8L, D10N, D4E, D6R II, D8N, D6T, D8R, D8T, D9L, D10T, D11N, D6G2 XL, D7R, D6G2 LGP, D9N, D6G, D9T, D7G
- Excavators: 637E, 657G, 637G, 621G
- Wheel Loaders: 986K
- Off-Highway Trucks: 773, 789, 771D, 735, 777, 740, 773F, 775G, 785
- Asphalt Pavers: AD30
Additional information
| Machine Model | 16, 621G, 637E, 637G, 657G, 735, 740, 771D, 773, 773F, 775G, 777, 785, 789, 824C, 824G, 826G, 826H, 986K, 992, AD30, C9.3B, D10, D10N, D10R, D10T, D11N, D11T, D4E, D6G, D6G2 LGP, D6G2 XL, D6R, D6R II, D6R III, D6T, D7G, D7H, D7R, D7R II, D8L, D8N, D8R, D8T, D9L, D9N, D9R, D9T |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
