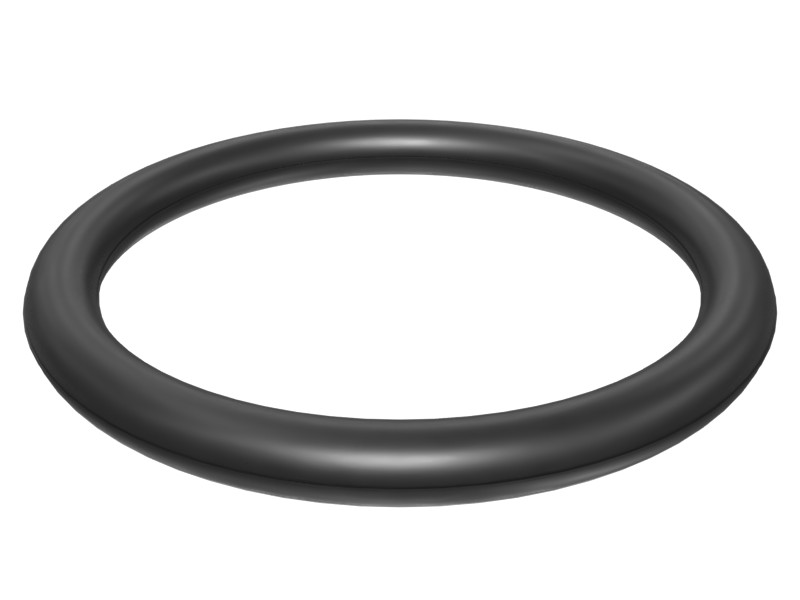

8M-5254 3.53 x 31.34 mm 70A VMQ O-Ring
Cat® Rubber O-Ring (Pressure Control Assembly, Heater Assembly)
Description
O-rings are used for static sealing and some dynamic applications. Cat® O-rings are made from materials matched to the fluids, temperatures and pressures in Cat engines and machines. These materials resist abrasion and extrusion and provide excellent compression set resistance for the seal. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression. With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for your O-ring needs on Cat and other mobile equipment. Cat sealing systems prevent leaks and contamination of more expensive parts. Protect your investment with Genuine Cat seals. O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Compatible | Air; Diacetone Alcohol; Ethylene Glycol; Extreme High/Low Temperatures; High Aniline Point Oils; Isobutyl Alcohol; Ozone and UV Light; Polyethylene Glycol |
|---|---|
| Dash Size | 218 in |
| Polymer | VMQ (Silicone rubber) |
| Material Hardness | 70A |

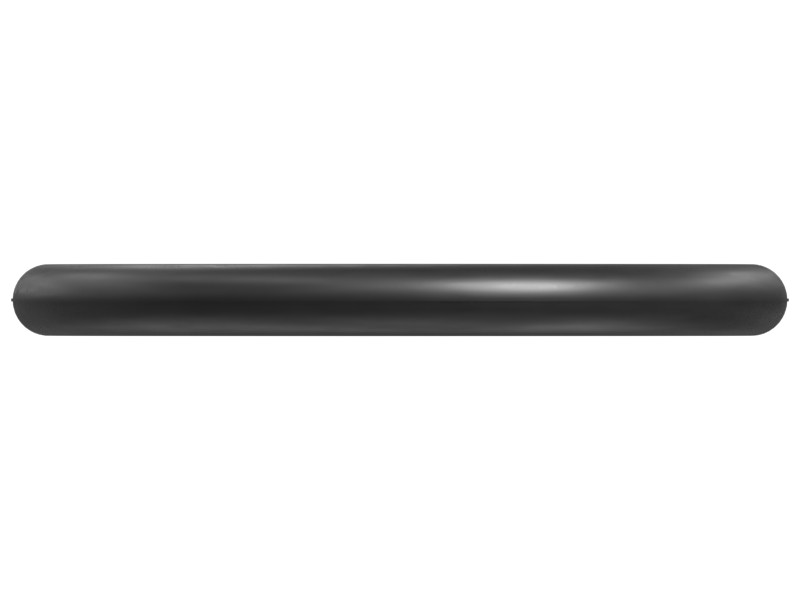

| Cross-Section Diameter | 3.53 mm (0.139 in) |
| Inside Diameter | 31.34 mm (1.234 in) |
| Material | Silicone / MQ / VMQ / PMQ Rubber |
Compatible Equipment
- Motor Graders: 16
- Generator Sets: C4.4
- Track Loaders: 993, 992
- Cold Planers: PL72, PL87, PL83, TH55-E70
- Compactors: 815, 814, 816
- Dozers: D6R, D6T, D6R LGP, D8T, D6R XL, D6T LGP, D7R, D6M, D6R II, D5M, D6R III, D5N, D5H, D6N, D7G, D7H, D6G2 LGP, D7R II, D8R, D11, D6G2 XL, D4E, D7G2, D9T, D8N, D6G, D10R, D11T, D10, D8L, D10T, D11N, D8, D11R
- Excavators: 637G, 637K, 637E, 3508B, 3516E
- Wheel Loaders: 992K
- Off-Highway Trucks: 793, 740, 793D, 777, 740B, 777E, 771D, 773, 785, 773F, 735, 785D, 789, 797F, 777D, 793F, 773D, 773E
- Asphalt Pavers: AD45
Additional information
| Machine Model | 16, 3508B, 3516E, 637E, 637G, 637K, 735, 740, 740B, 771D, 773, 773D, 773E, 773F, 777, 777D, 777E, 785, 785D, 789, 793, 793D, 793F, 797F, 814, 815, 816, 992, 992K, 993, AD45, C4.4, D10, D10R, D10T, D11, D11N, D11R, D11T, D4E, D5H, D5M, D5N, D6G, D6G2 LGP, D6G2 XL, D6M, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7G, D7G2, D7H, D7R, D7R II, D8, D8L, D8N, D8R, D8T, D9T, PL72, PL83, PL87, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
