Description

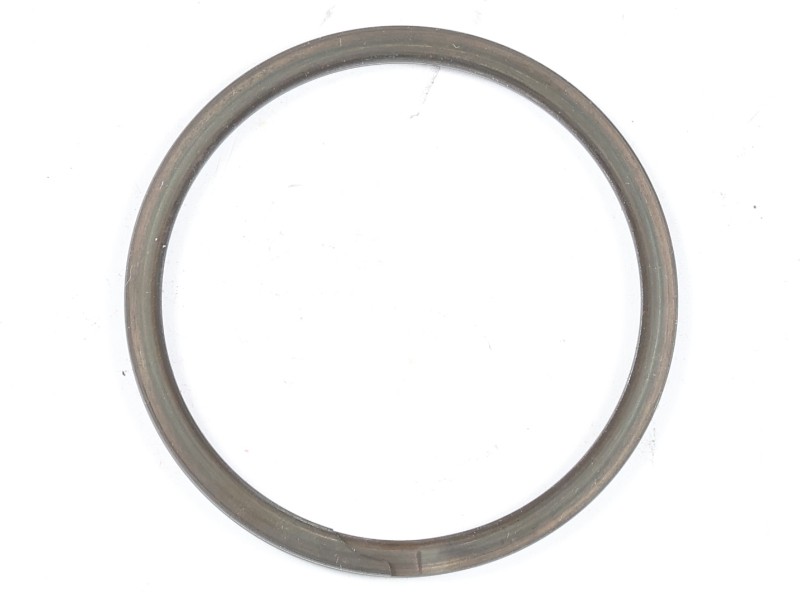

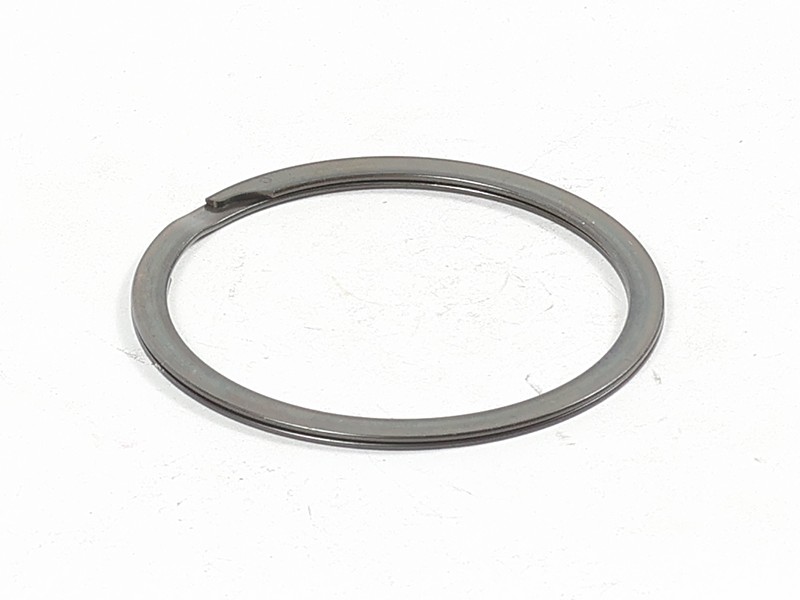

The external retaining ring, also called an external snap ring, is a fastener. This type of retaining ring has an external design and can be installed around the outer circumference of a device. Its main function is to securely hold and position other parts, preventing axial movement and ensuring proper alignment.
Attributes
Withstands axial thrust loads and high rotational speeds.
Provides shock absorption and reduces stress on connected parts
Applications
External retaining rings provide secure, reliable fastening to hold gears firmly in place, and are used mainly on Cat® 120, 12F, 140 and 14E Motor Graders, 572C, 572D and 583C, 583E Pipelayers, 941, 951B, 951C, 977K, 977L, 983 and 983B Track Loaders, 977H, D4D, D6C, D6D, D6E, D6E, D6G, D6G, D7H, D8, D8D, D8G and D8E, D8F Track-Type Tractors, AP-1000 and AP-1050 Paving Equipment.
Specifications
| Material | Carbon Steel |
|---|---|
| Axial Thickness | 1.98 mm |
| Inside Diameter | 60.1 mm (2.37 in) |
| Outside Diameter | 69.66 mm (2.74 in) |
| Radial Thickness | 4.78 mm |
| Weight | 0.02 kg (0.04 lb) |
Compatible Equipment
- Dozers: D7H, D6G2 LGP, D6G2 XL, D6G
