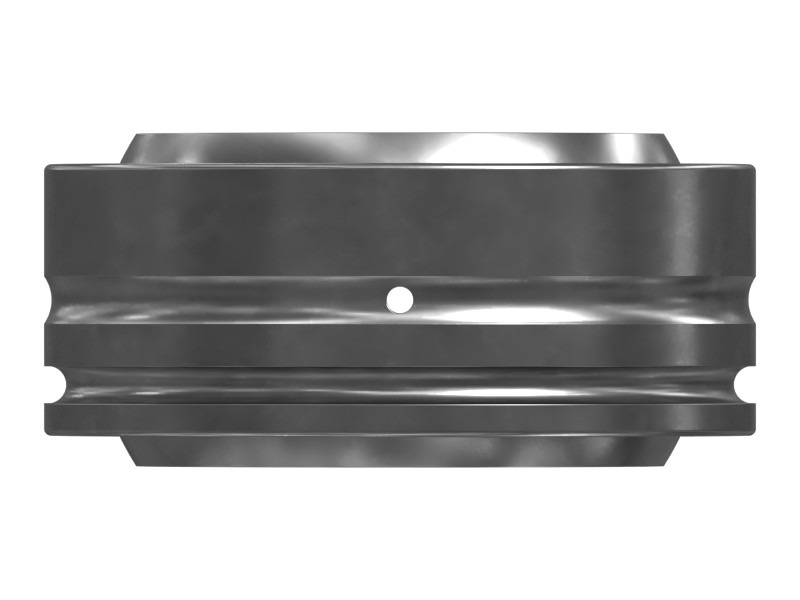

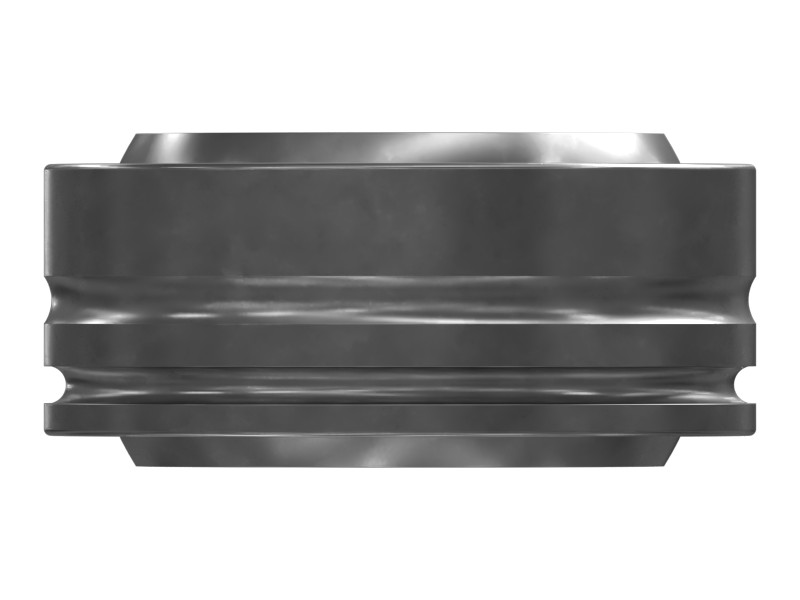

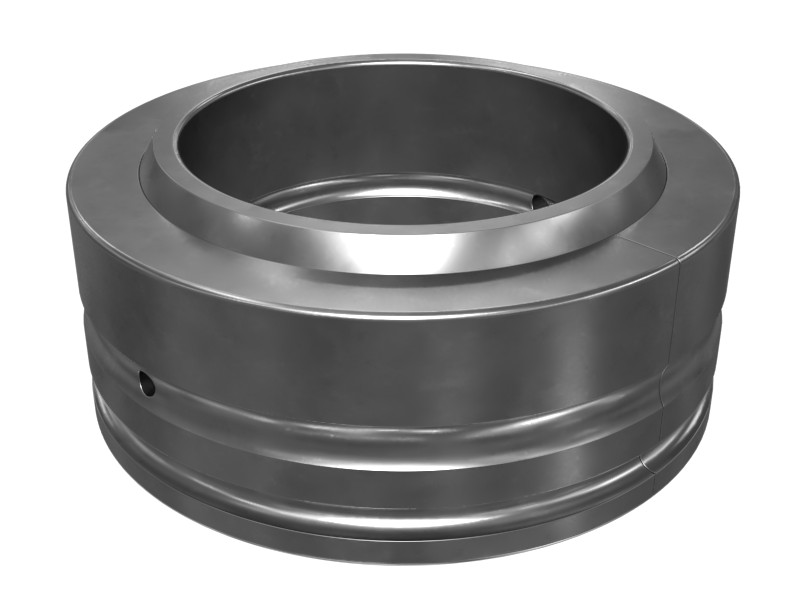

8G-4371 Self-Aligning Bearing
Cat® Self-Aligning Spherical Bearing
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance, and are manufactured to the highest quality standards for long life and high performance. Self-aligning spherical bearings consist of a convex inner ring and a concave outer ring that rotate to relieve stresses on the shaft and bearing assembly caused by deflection. Caterpillar design engineers match each part with the right combination of size, material, surface finish and manufacturing process so it works effectively and wears in sync with all other adjacent and dependent parts.
Features
- Maintenance-free spherical bearing
- With lubrication groove and hole
- Single-split outer race
Applications
Cat self-aligning spherical bearings are commonly used in applications with misalignment, high radial loads and axial loads in both directions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 92 mm (3.622 in) |
|---|---|
| Inside Length | 49 mm (1.929 in) |
| Length | 49 mm (1.929 in) |
| Outside Length | 40 mm (1.575 in) |
| Outside Diameter | 105 mm (4.134 in) |
| Inside Diameter | 70 mm (2.756 in) |
Compatible Equipment
- Track Loaders: 953
- Wheel Excavators: M320, M322D
- Off-Highway Trucks: 772G, 770G
- Asphalt Pavers: AD45
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Wheel Excavators, Track Loaders, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
