Description

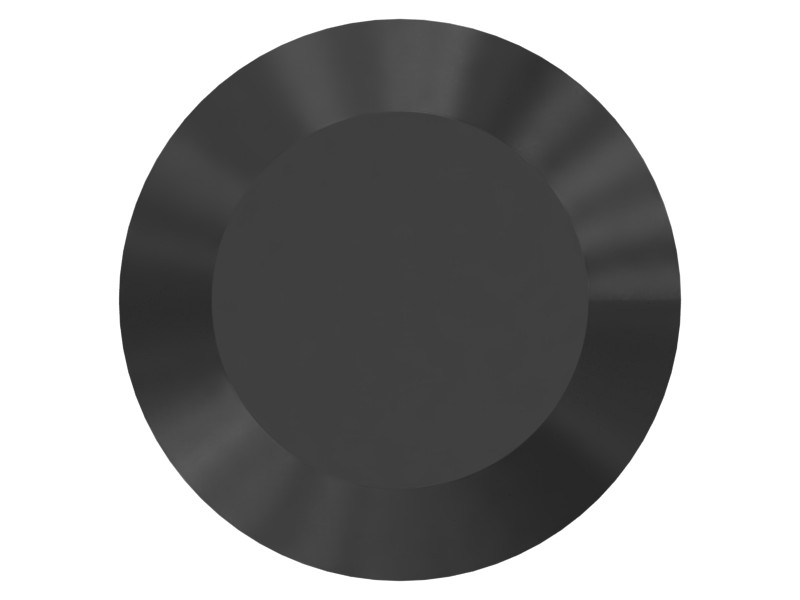

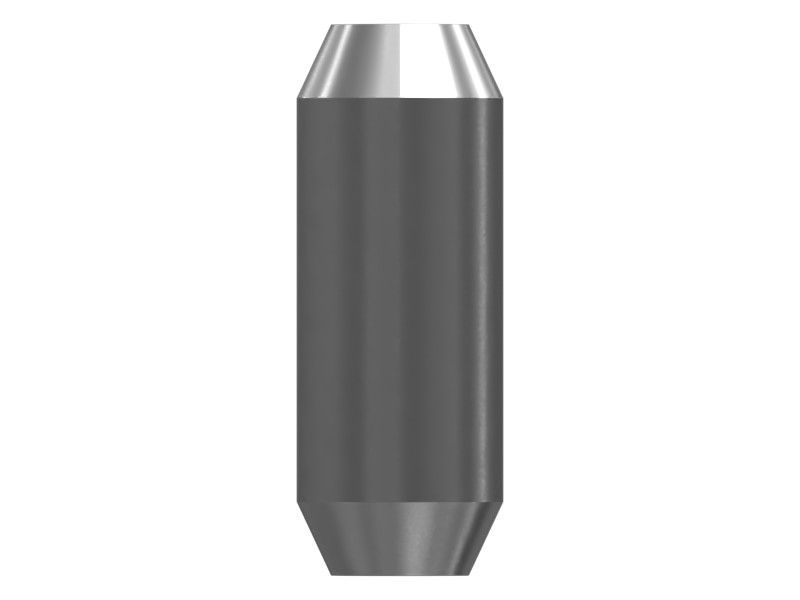

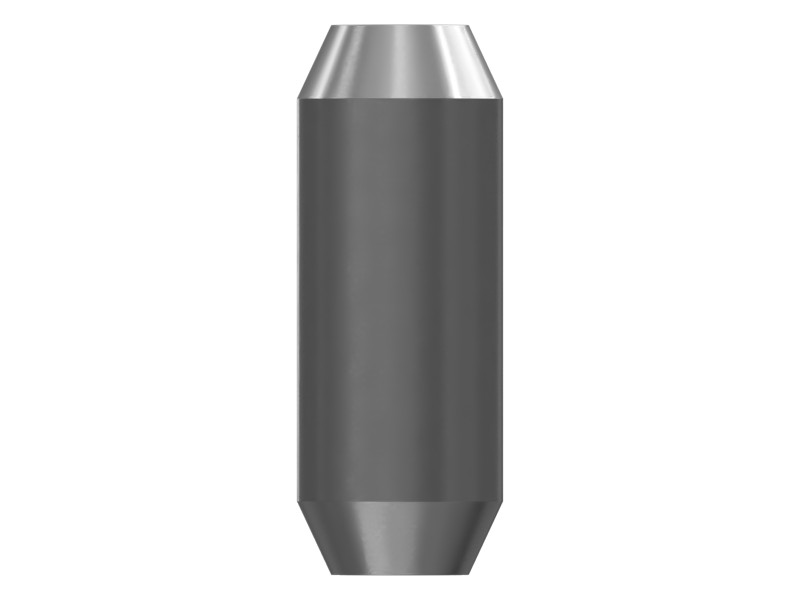

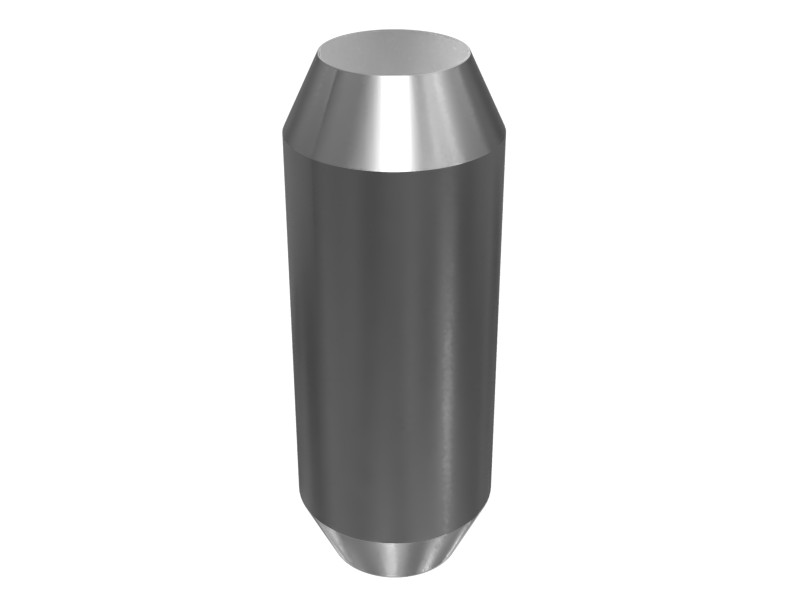

A dowel pin is a cylindrical fastener used to align objects in a precise manner. The main function of a dowel pin is to ensure accurate alignment between two mating parts, which helps prevent any unwanted movement or misalignment during operation. Dowel pins are used to locate guide rails for adjacent machine parts in precise alignment.
Attributes
- Maintains precise alignment, inserts easily, absorbs hole tolerances and prevents interlocking.
- Chamfer on both ends, chamfered at 25°
- Corrosion resistant to withstand exposure to harsh environments.
Applications
Dowel pins provide extra strength and support to a joint, especially in high-stress applications, and allow the joint to be disassembled and reassembled.
Specifications
| Material | Mixed: Metal(1E1541) |
|---|---|
| Pin Length | 12.7 mm (0.5 in) |
| Pin Type | Solid |
| Pin Outside Diameter | 4.78 mm (0.188 in) |
Compatible Equipment
- Generator Sets: C9, 3406B, 3406C
- Engines: C32, C18, C12
- Dozers: D9R, D9T
