Description

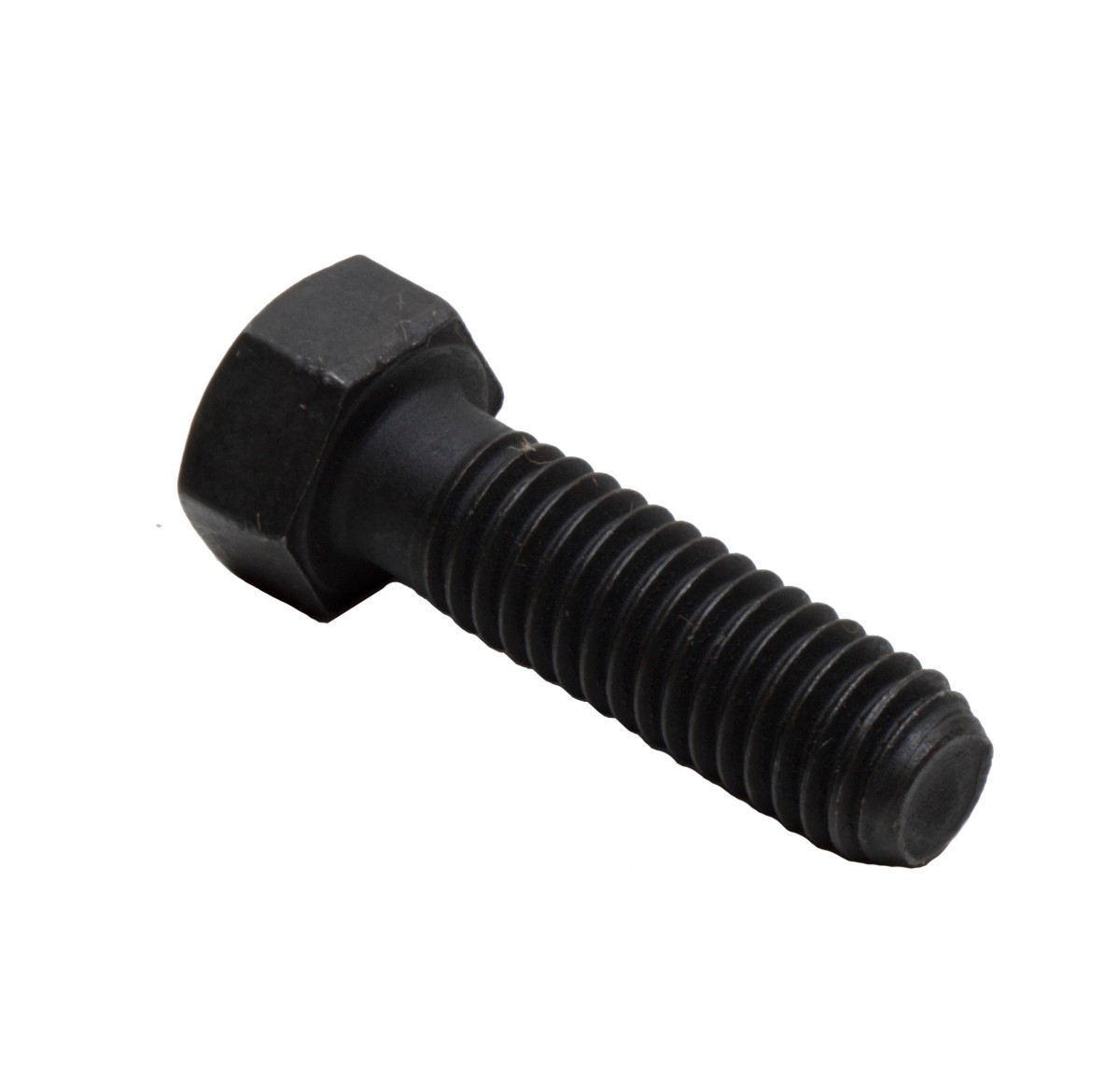

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Thread Size | 1.125 mm (0.044 in) |
| Thread Size (Diameter × Pitch) | 1.125×7 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Surface Finish | Phosphate and Oil Coating |
| Head Height – 4 | 0.72 in |
| Handle Length – 2 | 3.75 in |
| Bolt Overall Length – 3 | 6 1/2 in |
| Head Width – 5 | 1.69 in |
| Bolt Length | 165.1 mm (6.5 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate + Oil |
| Handle Length | 95.25 mm (3.75 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | 1 1/8 – 7 in |
Compatible Equipment
- Dozers: D9L, D10R
- Excavators: 637E, 657G
- Wheel Loaders: 992C, R1700G, R1600H, R2900G, R3000H, R1300G
- Off-Highway Trucks: 773, 777, 773D, 771D, 777D, 773E, 777E, 773F, 775G
