Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.

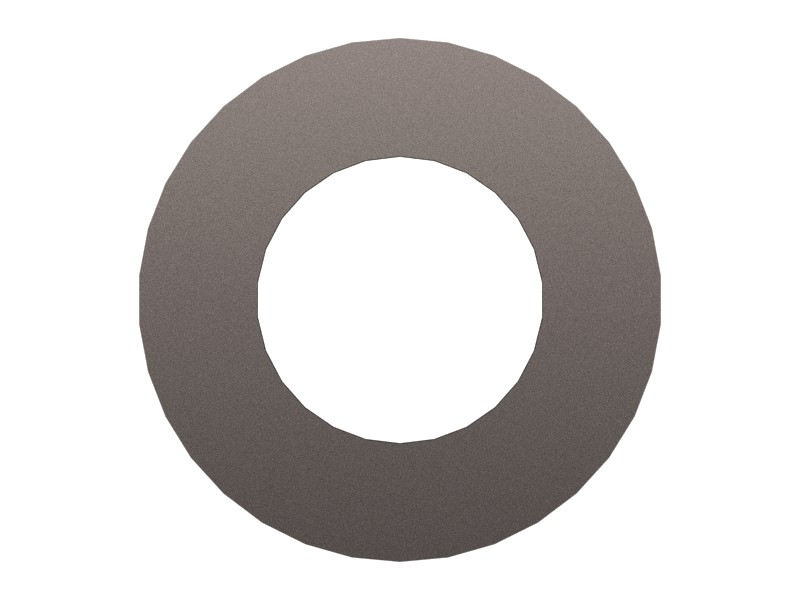

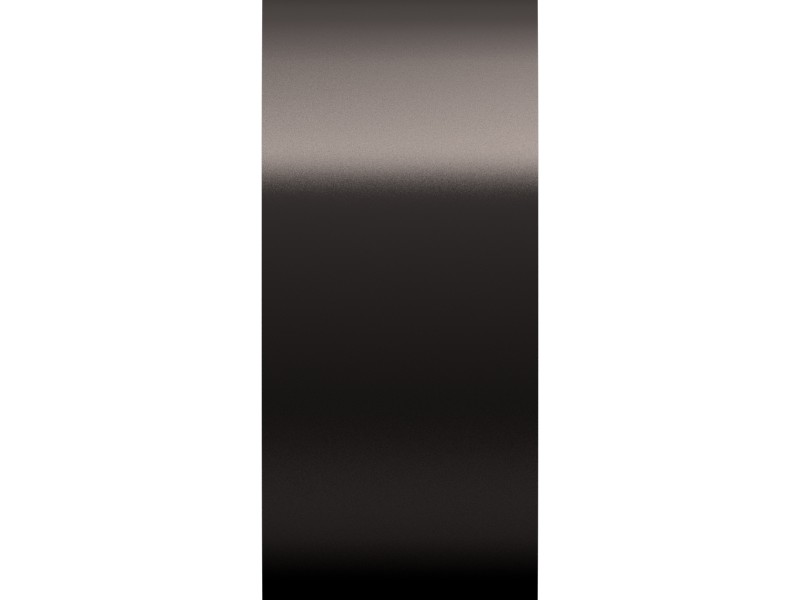

Specifications
| Outside Diameter | 16 mm (0.63 in) |
|---|---|
| Coating | Zinc Phosphate + Oil |
| Inside Diameter | 8.8 mm (0.346 in) |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M8 mm (5/16 in) |
| Material | HARDENED STEEL |
| Thickness | 7 mm (0.276 in) |
Compatible Equipment
- Generator Sets: C9, 3512E, 3516C
- Track Loaders: 982, 993, 972, 992, 826K, 824G, 826H, 826G, 834H
- Compactors: 824K, C9.3B, C13B, 825K, CS-54, C-15, C-9, CS-533E
- Engines: C11, C13, C7, C15, C32, C18
- Excavators: 320D, 329D, 3126, 336D2, 336F L, 325D L, 325D, 3516B, 340D2 L, 621G, 345D L, M325D L MH, 336E LH, 336E L, 329D L, 336D2 L, 336F, 336F L XE, 324D L, 324D, 336E, 336E H, 336D2 GC, 336F LN, 336E LN, 336D2 XE
- Asphalt Pavers: AD30, AD45
- Motor Graders: 16M, 14M
- Dozers: D8N
- Wheel Loaders: 950H, 980L, 980, 986H, 966, 966H, 980H, 950 GC, 928G, 966K, 972G, 966L, 972L, 972H, 966F, 980G, 988H, R1700G
- Off-Highway Trucks: 797F, 794 AC, 793F, 796 AC, 798 AC, 730, 725
Additional information
| Machine Model | 14M, 16M, 3126, 320D, 324D, 324D L, 325D, 325D L, 329D, 329D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D2 L, 345D L, 3512E, 3516B, 3516C, 621G, 725, 730, 793F, 794 AC, 796 AC, 797F, 798 AC, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 928G, 950 GC, 950H, 966, 966F, 966H, 966K, 966L, 972, 972G, 972H, 972L, 980, 980G, 980H, 980L, 982, 986H, 988H, 992, 993, AD30, AD45, C-15, C-9, C11, C13, C13B, C15, C18, C32, C7, C9, C9.3B, CS-533E, CS-54, D8N, M325D L MH, R1700G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
